7-22 Chapter 7: Driver installation
7.5 Installing the Intel
®
I350-AM4/I350-AM2/I210
Gigabit Adapter driver
This section provides the instructions on how to install the Intel
®
I350-AM4/I350-AM2/I210
Gigabit Adapter driver on the system.
To install the Intel
®
I350-AM4/I350-AM2/I210 Gigabit Adapter driver on Windows
®
Server
2008 R2:
1. Restart the computer.
2. Log on with Administrator privileges.
3. Insert the motherboard/system support DVD to the optical drive.
If Autorun is NOT enabled in your computer, browse the contents of the support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the support DVD.

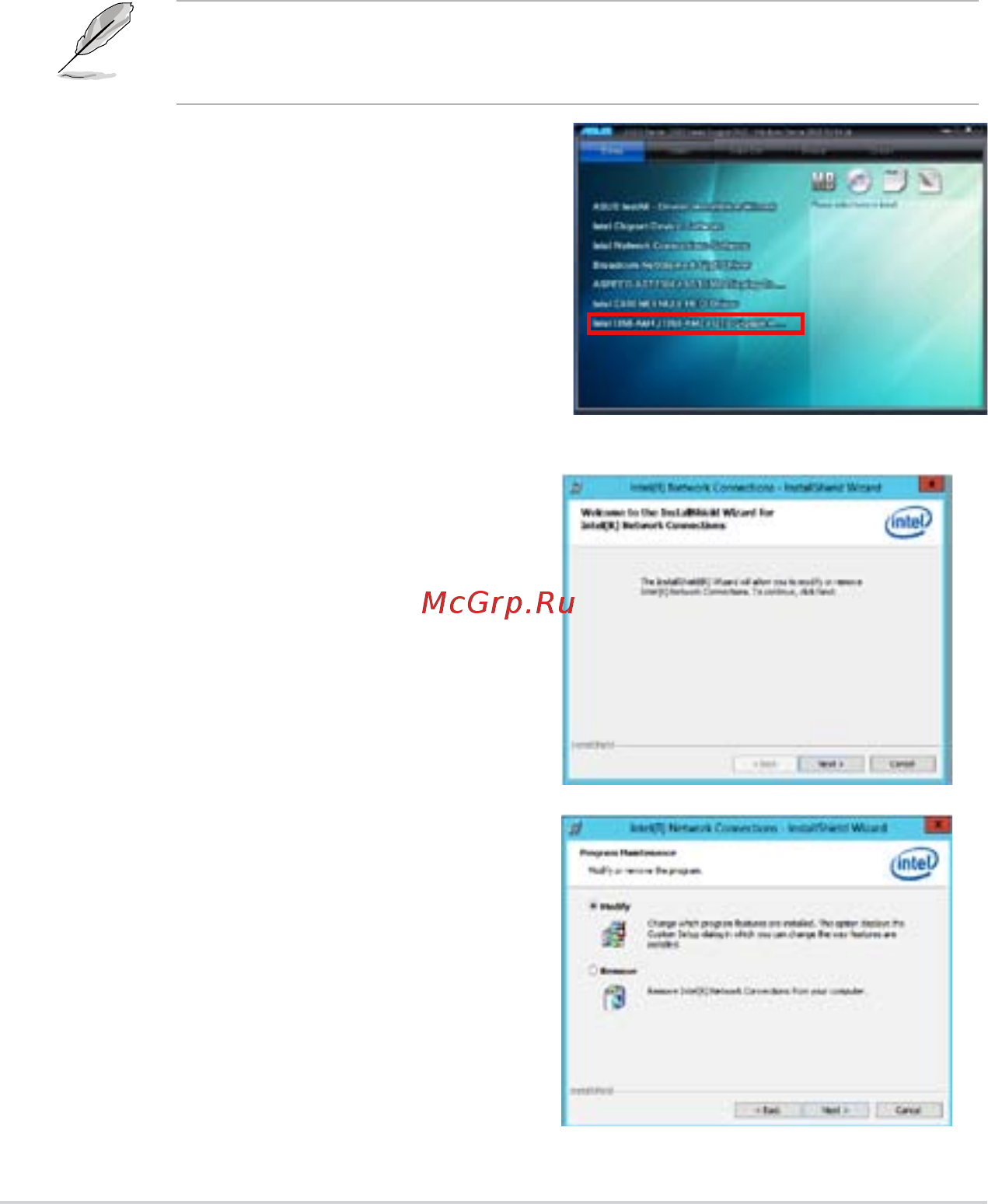

4. Click Intel
®
I350-AM4/I350-AM2/I210
Gigabit Adapter Driver in the Drivers
menu of the main screen to start the
installation.
5. Click Next to continue.
6. From the Program Maintenance window,
select Modify then click Next.
