Asus rs740-e7/rs24-eg [110/212] Inteltxt lt sx configuration
![Asus rs740-e7/rs24-eg [110/212] Inteltxt lt sx configuration](/views2/1214370/page110/bg6e.png)
5-24
Chapter 5: BIOS setup

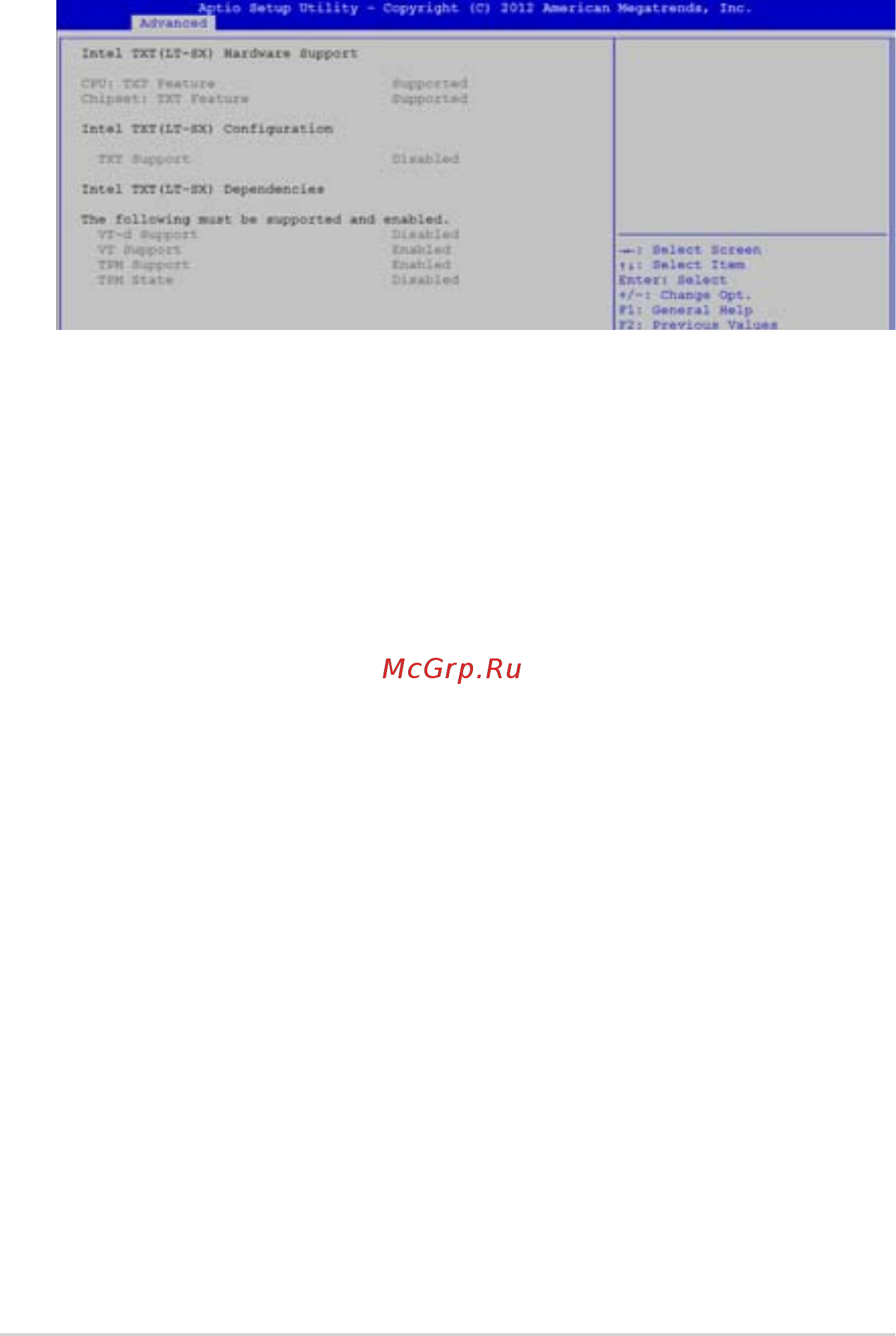

5.4.6 IntelTXT(LT-SX)Conguration
The Intel TXT(LT-SX) conguration automatically detects and displays the Intel TXT(LT-SX)
hardware support.
