Asus rs740-e7/rs24-eg [23/212] Lan rj 45 leds

ASUS RS740-E7-RS24-EG

1-11

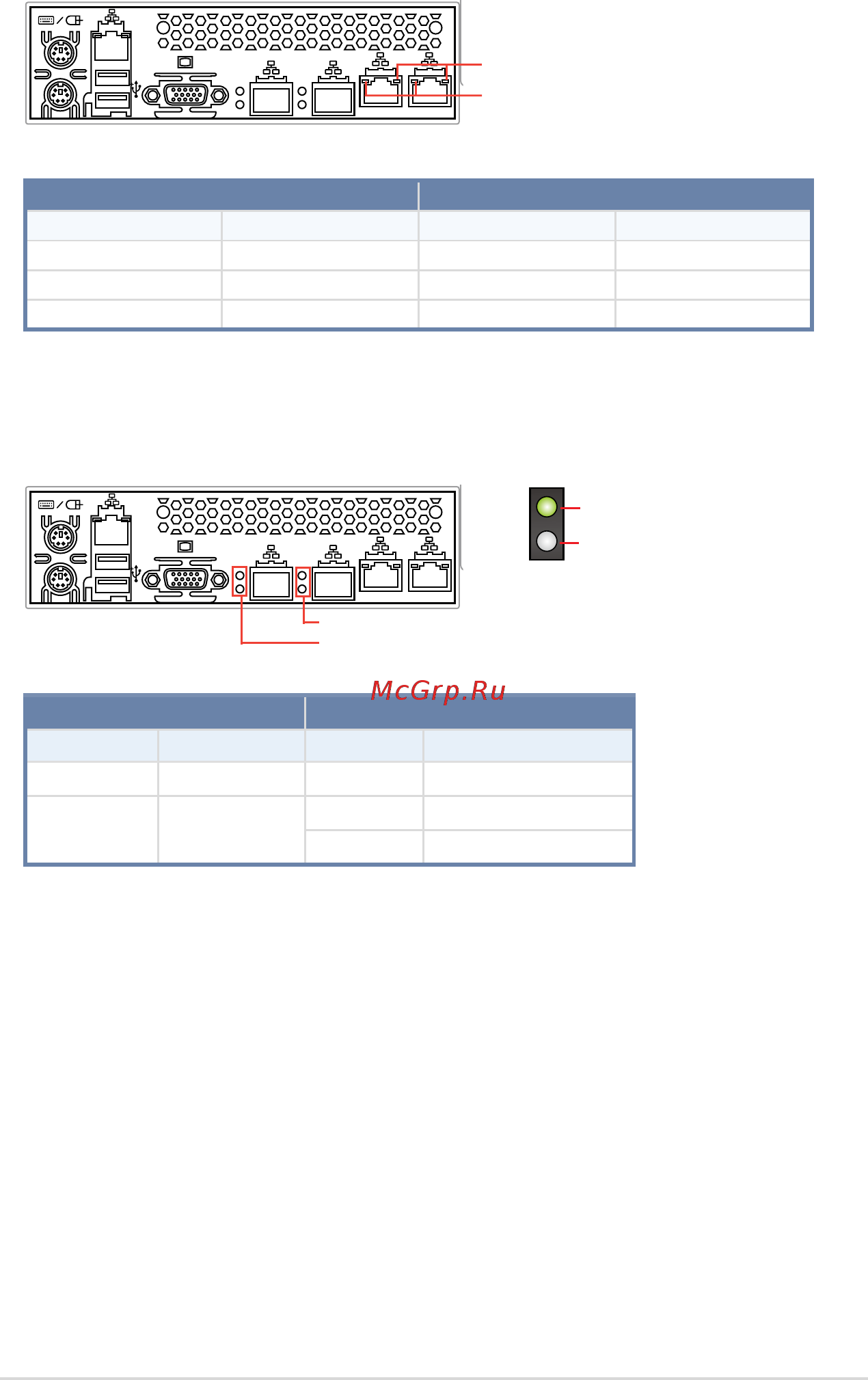

1.7.4 SFP+ status LEDs

Activity/Link LED Speed LED

Status Description Status Description

OFF No activity OFF -

BLINKING Data activity

AMBER 1 Gbps connection

GREEN 10 Gbps connection

SFP+ LED

SPEED LED

ACTIVITY LED

SFP+_2 LEDs

SFP+_1 LEDs

1.7.3 LAN (RJ-45) LEDs

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

GREEN Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

SPEED LED

ACT/LINK LED
