2-27
ASUS RS740-E7-RS24-EG
2.8 ASUS PIKE card (Optional)
The PIKE slot allows you to choose and change your preferred SAS solution easily. Install an
optional ASUS PIKE RAID card based on your needs.
• Ensure that the system is turned off before removing any components.
• Discharge static electricity by touching any metal surface.

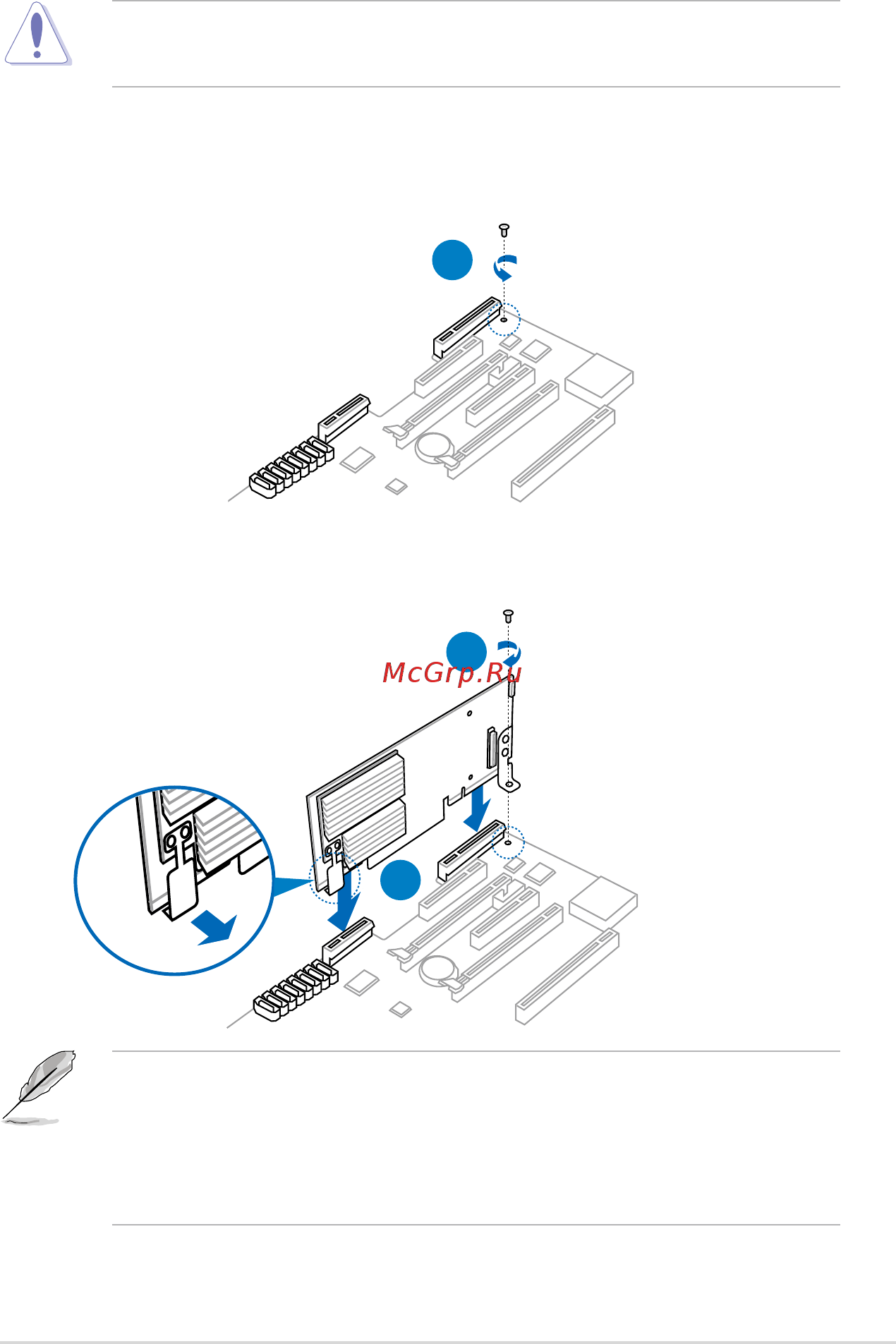

To install a PIKE card:
1. Release the screw on the motherboard adjacent to the PIKE card slot.
Set aside the screw for later use.
2. Align and i
nsert the PIKE RAID card into the PIKE RAID card slot.
Ensure that the PIKE RAID card is completely seated on the card slot.
1
3. Secure the PIKE RAID card to the motherboard using the screw that you removed in
step 1.
• The PIKE RAID card ts to the PIKE RAID card slot in one orientation only.
• Ensure that the metal clip on the PIKE card is rmly clamped in the motherboard’s
PIKE card slot.
•
When removing the PIKE RAID card, ensure to slightly pull the metal clip to release it
from the card slot.
3
2
