ASUS RS740-E7-RS24-EG
5-47
Pressing <Esc> does not immediately exit this menu. Select one of the options from this
menu or <F10> from the legend bar to exit.

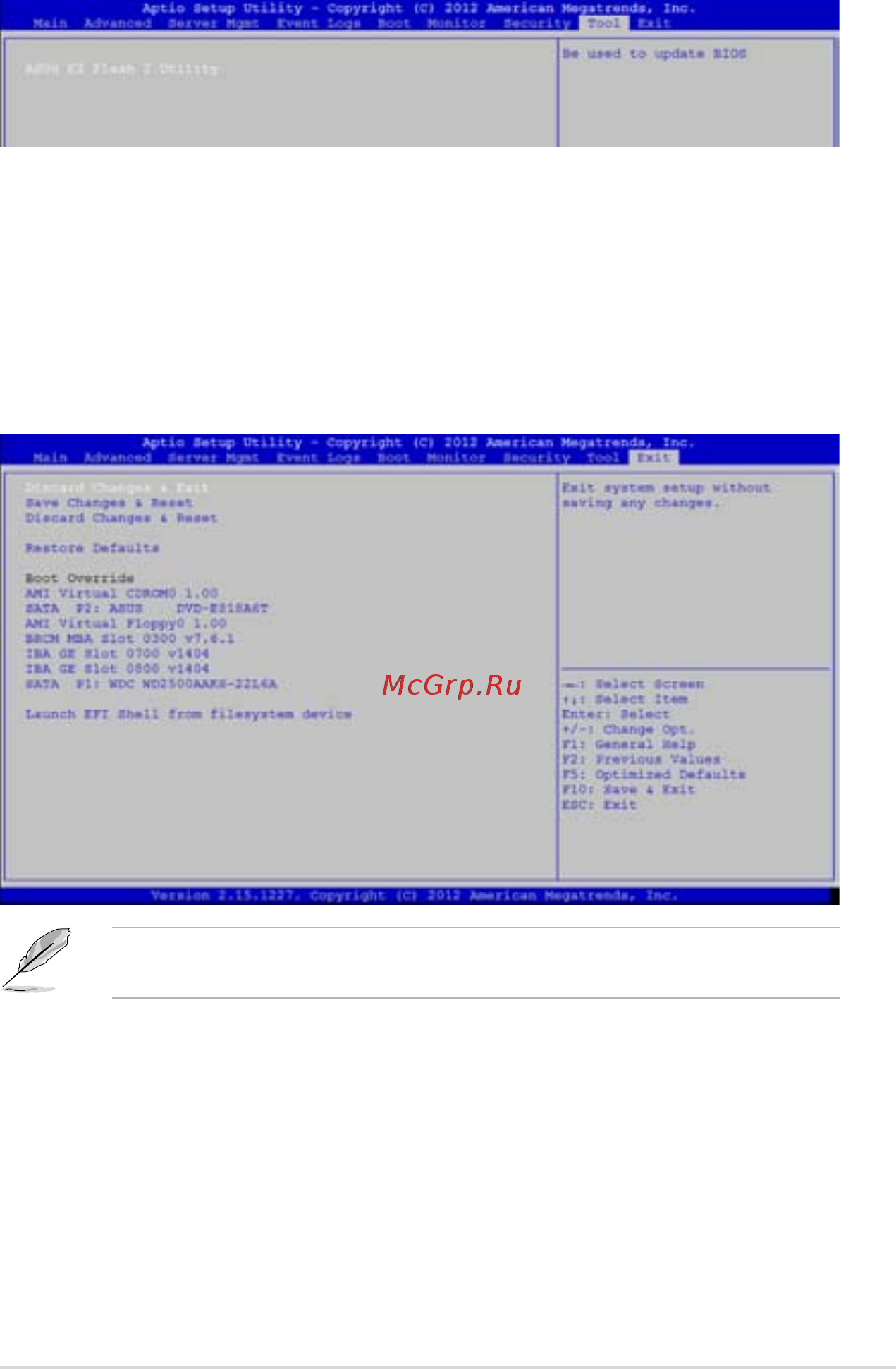

5.10 Tool menu
The Tool menu items allow you to congure options for special functions. Select an item then
press <Enter> to display the submenu.
ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash BIOS ROM Utility when you press <Enter>. Check section
5.1.2 ASUS EZ Flash 2 Utility for details.
5.11 Exit menu
The Exit menu items allow you to save or discard your changes to the BIOS items.
