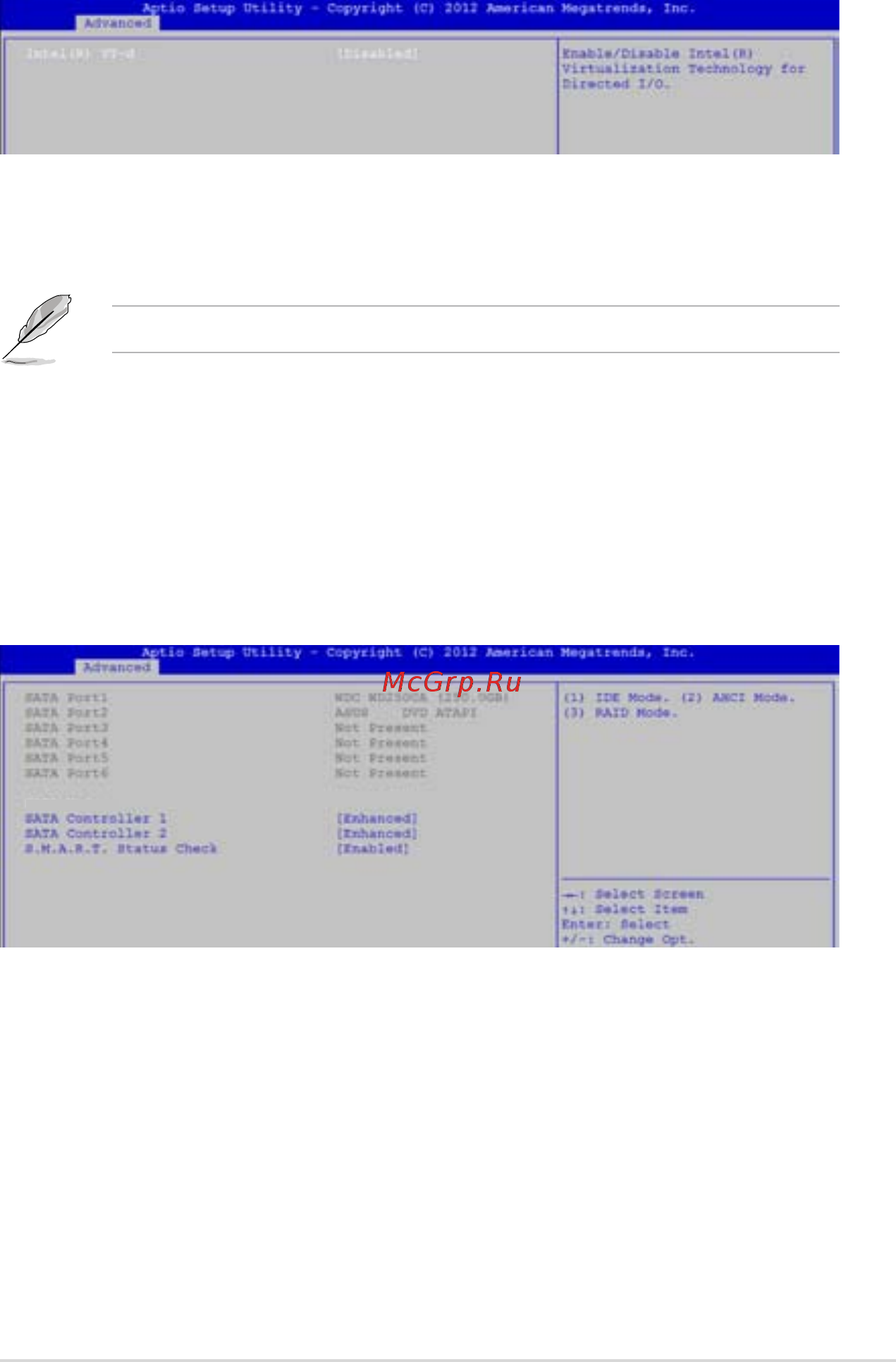

Asus rs740-e7/rs24-eg [105/212] Pchsataconfiguration

ASUS RS740-E7-RS24-EG

5-19

Intel(R) VT-d [Disabled]

Allows you to enable or disable Intel® VT-d.

Conguration options: [Enabled] [Disabled]

Intel(R)VTforDirectedI/OConguration

The following item appears only when you set Intel(R) VT-d to [Enabled].

Coherency Support [Disabled]

Allows you to enable/disable VT-d Engine Coherency support.

Conguration options: [Disabled] [Enabled]

ATS Support [Disabled]

Allows you to enable/disable VT-d Engine address translation services (ATS) support.

Conguration options: [Disabled] [Enabled]

5.4.4 PCHSATAConguration

[AHCI Mode]

SATA Mode
