5-38
Chapter 5: BIOS setup
5.6 Event Logs menu
The Event Logs allows you to change or view the event log settings.

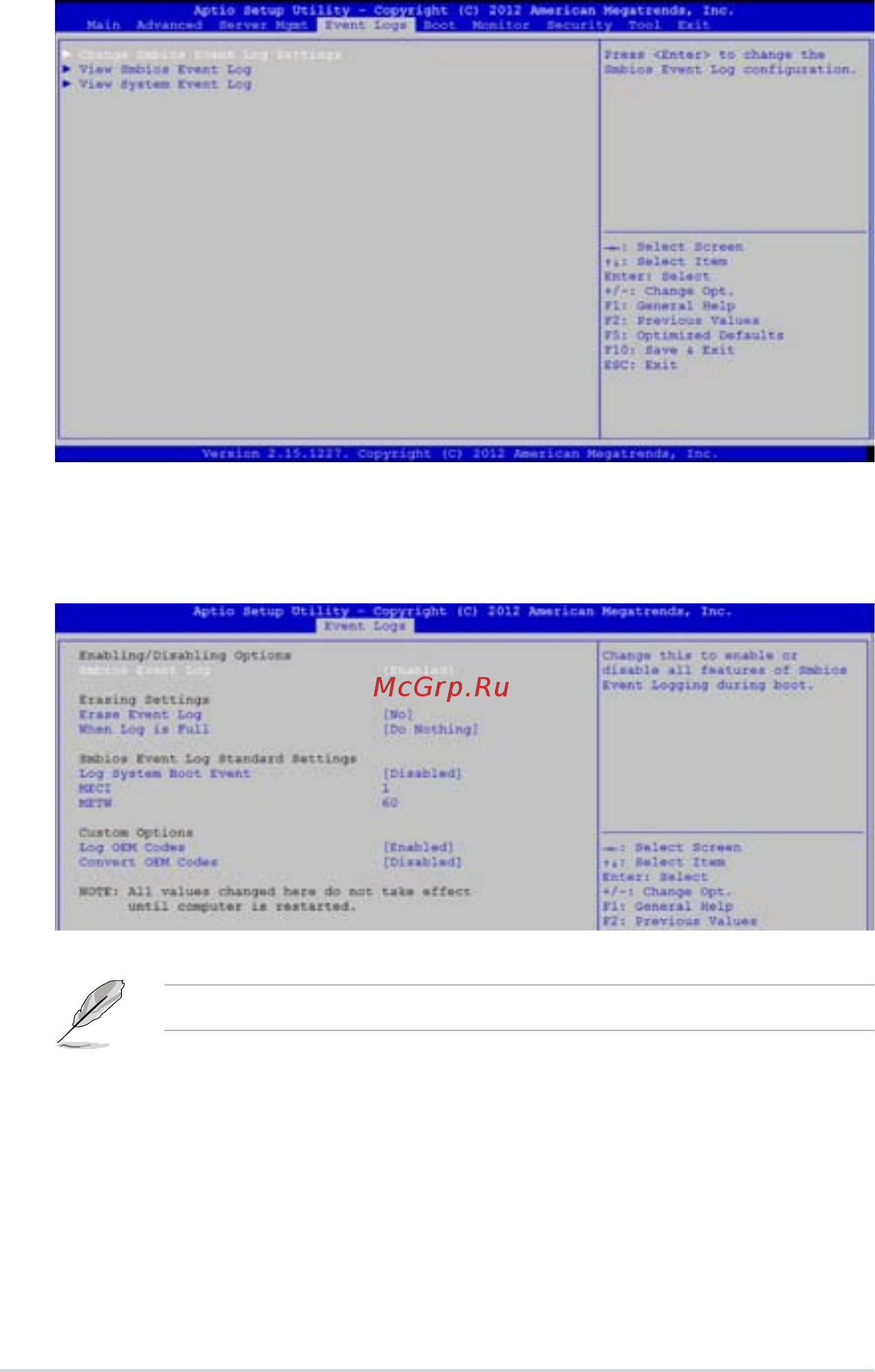

5.6.1 Change Smbios Event Log Settings
Press <Enter> to change the Smbios Event Log conguration.
Enabling/Disabling Options
Smbios Event Log [Enabled]
Change this to enable or disable all features of Smbios Event Logging during boot.
Conguration options: [Disabled] [Enabled]
All values changed here do not take effect until computer is restarted.
