ASUS RS740-E7-RS24-EG
5-31
Console Redirection Settings
Out-of-Band Mgmt Port [COM1]
Microsoft Windows Emergency Management Services (EMS) allow for remote management
of a Windows Server OS through a serial port.
Conguration options: [COM1] [COM2]
Terminal Type [VT-UTF8]
Microsoft Windows Emergency Management Services (EMS) allow for remote management
of a Windows Server OS through a serial port.
Conguration options: [VT100] [VT100+] [VT-UTF8] [ANSI]
Bits per second [115200]
Microsoft Windows Emergency Management Services (EMS) allow for remote management
of a Windows Server OS through a serial port.
Conguration options: [9600] [19200] [57600] [115200]
Flow Control [None]
Microsoft Windows Emergency Management Services (EMS) allow for remote management
of a Windows Server OS through a serial port.
Conguration options: [VT100] [Hardware RTS/CTS] [Software Xon/Xoff]

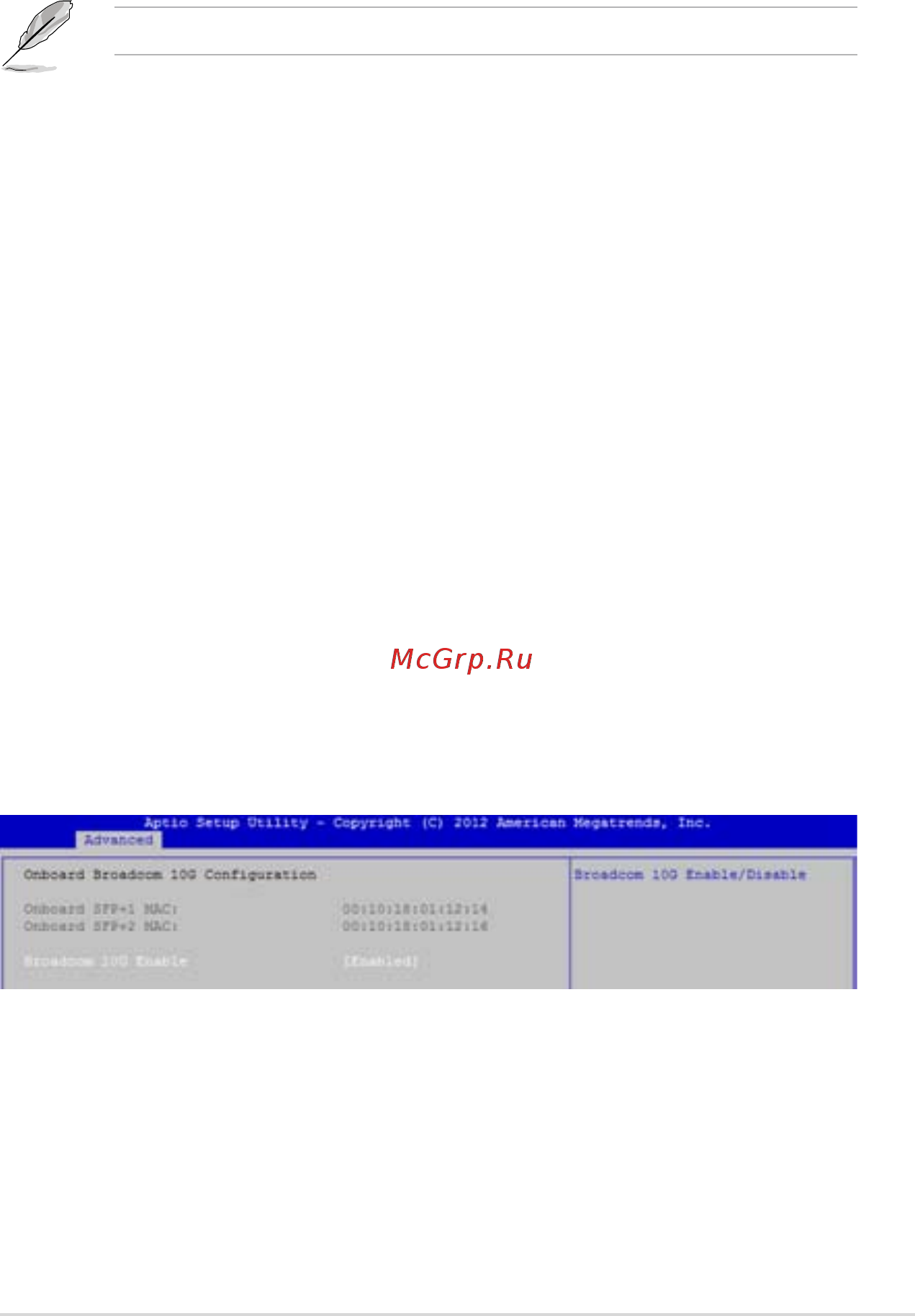

5.4.13 OnboardBroadcom10GConguration
Allows you to congure the onboard LAN BCM57840S.
Broadcom 10G Enable [Enabled]
Allows you to enable or disable the onboard Broadcom 10G.
Conguration options: [Enabled] [Disabled]
Serial Port for Out-of-Band Management/Windows Emergency Management
Services (EMS) Console Redirection [Disabled]
Allows you to enable or disable the console redirection feature.
Conguration options: [Disabled] [Enabled]
The following item appears only when you set Console Redirection to [Enabled].
