ASUS RS740-E7-RS24-EG
5-37
Station IP address [0.0.0.0]
Allows you to input Station IP address.
Subnet mask [0.0.0.0]
Allows you to input Subnet mask.
Gateway IP address [0.0.0.0]
Allows you to input Gateway IP address.

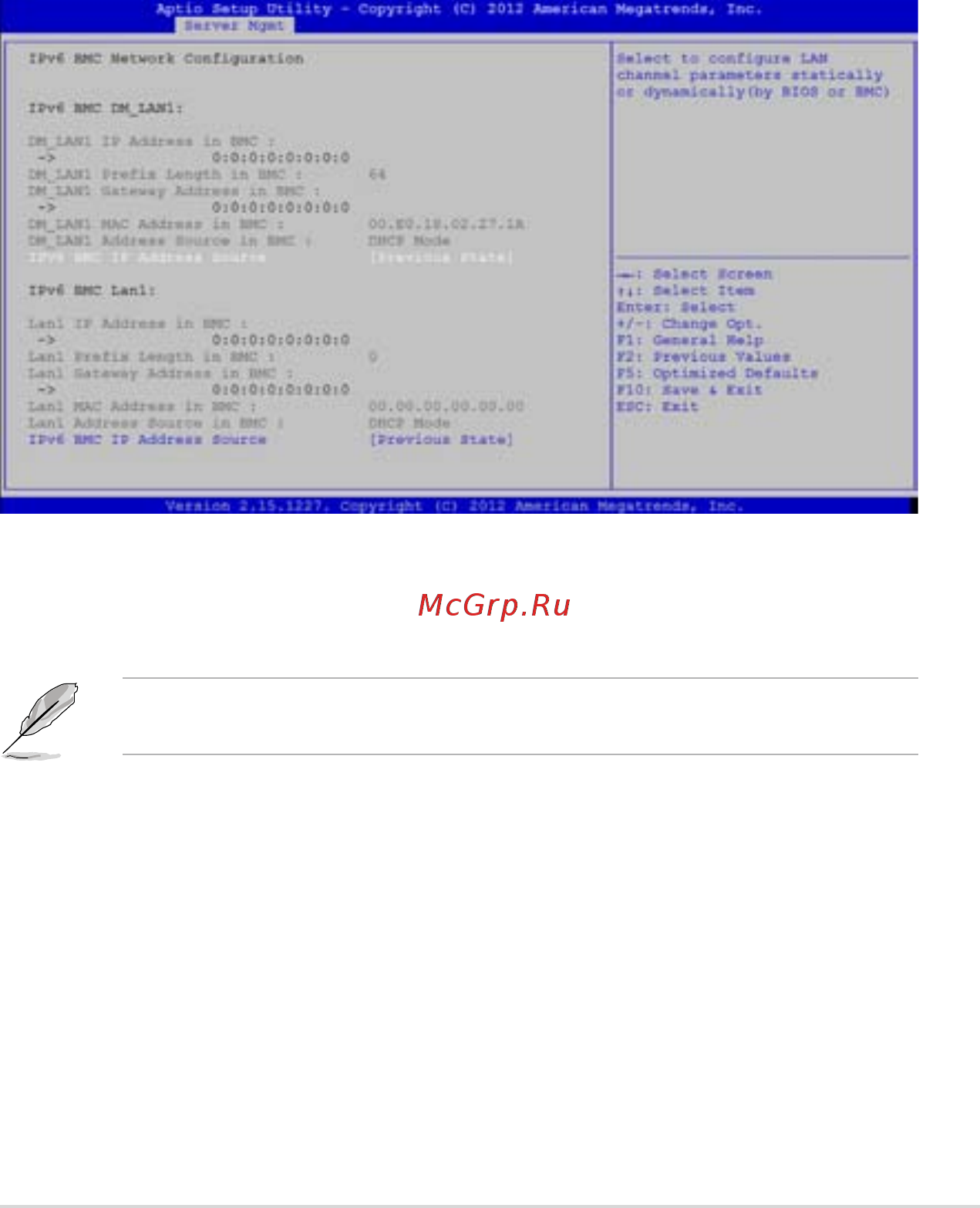

5.5.3 IPv6BMCNetworkconguration
IPv6 BMC IP Address source [Previous State]
Select to congure LAN channel parameters statically or dynamically(by BIOS or BMC).
Conguration options: [Previous State] [Static Mode] [DHCP Mode]
The following items appears only when you set Conguration Address source to [Static
Mode].
IPv6 BMC DM_LAN1 IP Address
Allows you to input IPv6 BMC Lan IP address.
IPv6 BMC DM_LAN1 IP Prefix Length
Allows you to input IPv6 BMC Lan IP Prex Length.
IPv6 BMC DM_LAN1 Default Gateway
Allows you to input IPv6 BMC Lan Default Gateway.
