ASUS RS740-E7-RS24-EG 7-31
7.8.5 Contact information menu

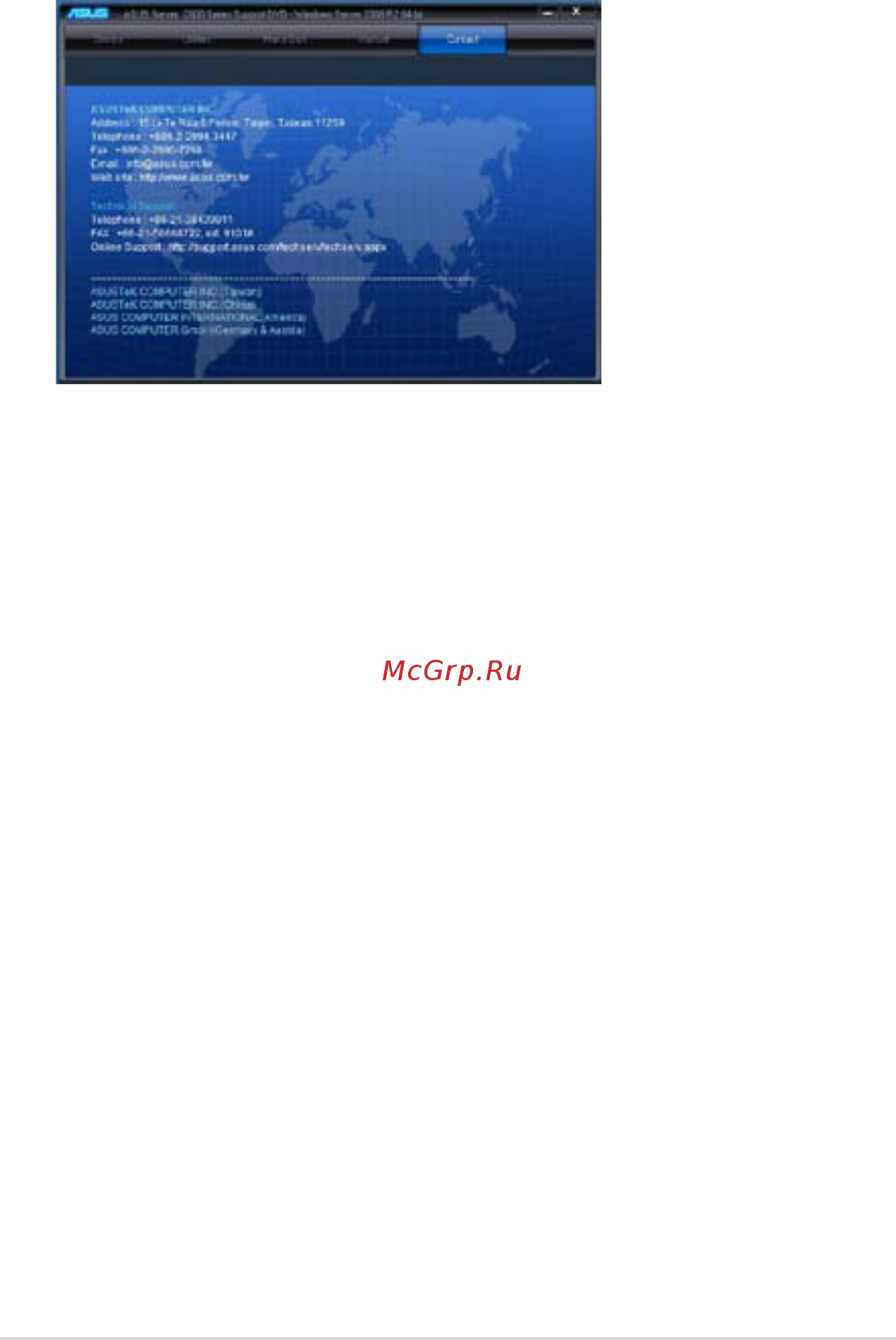

The Contact menu displays the ASUS contact information, e-mail addresses, and
useful links if you need more information or technical support for your motherboard.
