Asus rs740-e7/rs24-eg [113/212] Acpi settings
![Asus rs740-e7/rs24-eg [113/212] Acpi settings](/views2/1214370/page113/bg71.png)
ASUS RS740-E7-RS24-EG
5-27

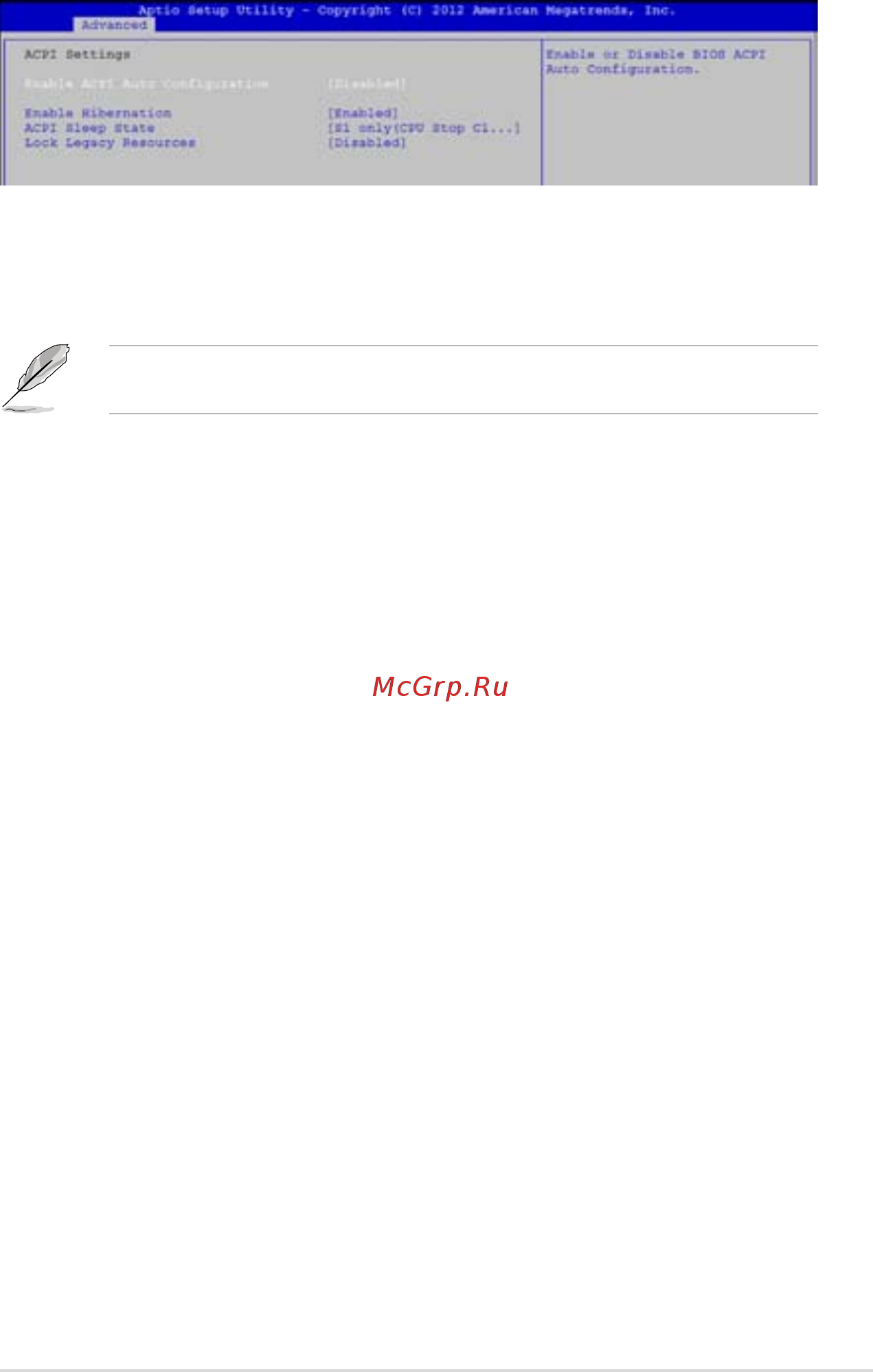

5.4.9 ACPI Settings
EnableACPIAutoConguration[Disabled]
Allows you to enable or disable BIOS ACPI Auto Conguration.
Conguration options: [Disabled] [Enabled]
Enable Hibernation [Enabled]
Allows you to enable or disable system ability to Hibernate (OS/S4 sleep state). This option
may be not effective with some OS.
Conguration options: [Disabled] [Enabled]
ACPI Sleep State [S1 (CPU Stop Clock)]
Allows you to set the ACPI Sleep State.
Conguration options: [Suspend Disabled] [S1 (CPU Stop Clock)]
Lock Legacy Resources [Disabled]
Allows you to enable or disable Lock Legacy Resources.
Conguration options: [Disabled] [Enabled]
The following item appears only when you set Enabled ACPI Auto Conguration to
[Disabled].
