Installation/connection

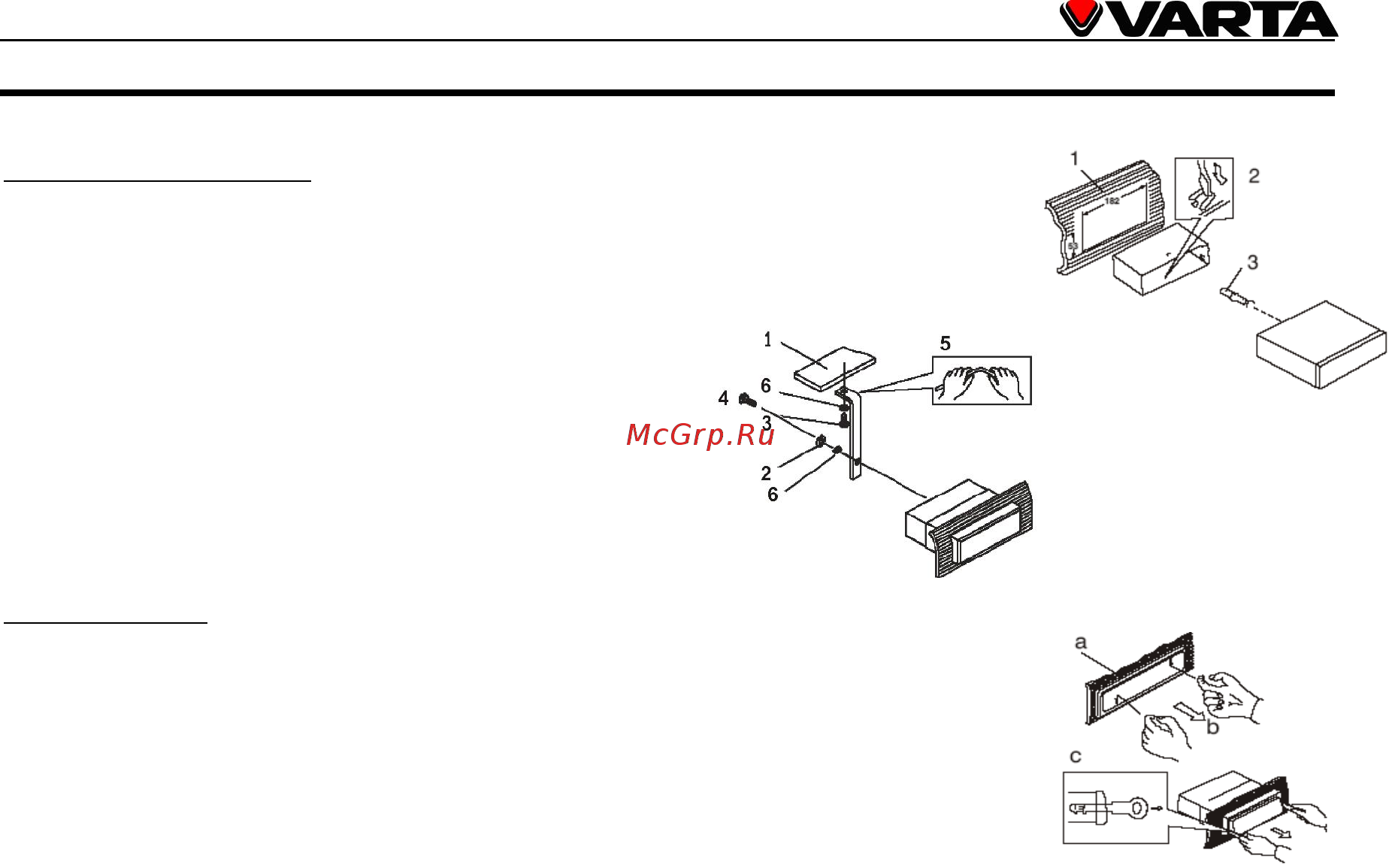

Din front-mount (method 1)
 After inserting the holder into the dashboard, select the appropriate tab and bend them
inwards to secure the holder in place.
 Insert fingers into the groove in the front of frame and remove it.
 Insert the levers supplied with the unit to the grooves at both sides. The unit can be
installed or removed from the dashboard.
1. Dashboard
2. Spring washer
3. Screw (4 x 12 mm)
4. Screw
5. Strap
6. Plain washer
Removing the unit
 Insert fingers into the groove in the front of frame and pull out to remove the frame.
 When reattaching the frame, point the side with a groove down wards and attach it.
 Insert the levers supplied with the unit into the grooves at both sides of the unit as shown
in figure until they click. Pulling the levers makes it possible to remove the unit from the
dashboard.
frame
lever
