Motor-side power components
5.1 Motor reactors (blocksize)
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
139
0RXQWLQJKROH
0
3URWHFWLYHFRQGXFWRU
FRQQHFWLRQ
0[
H
H H
E
E
E
E
PD[

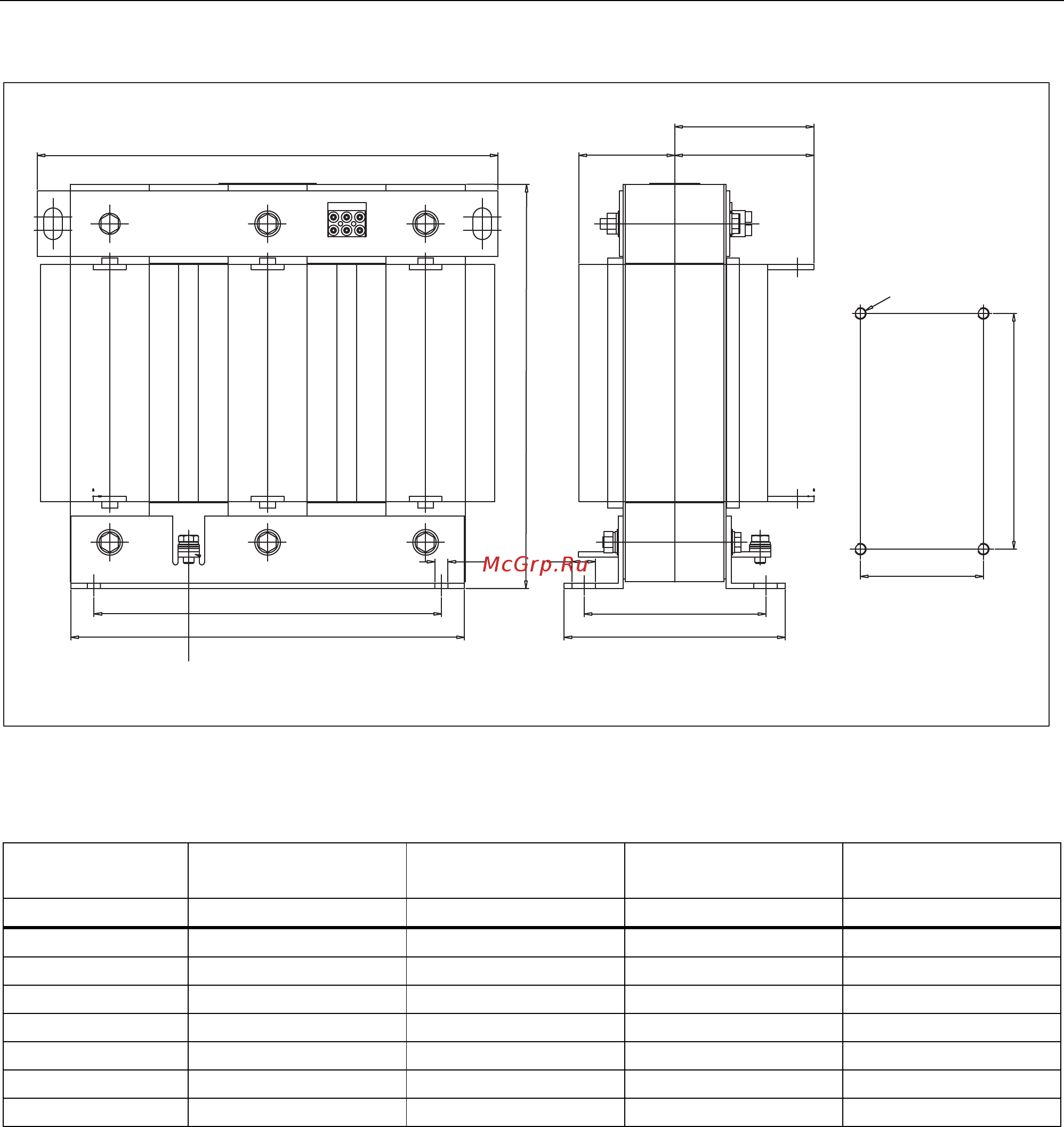

Figure 5-5 Dimension drawing: Motor reactor, frame size FSF
Table 5- 3 Total dimensions: Motor reactor, frame sizes FSD, FSE, all data in mm and (inches)
Motor reactor
6SE6400-
3TC05-4DD0
3TC03-8DD0
3TC07-5ED0
3TC08-0ED0
Frame size FSD FSD FSE FSE
b1 70 (2.75) 94 (3.70) 101 (3.97) 70 (2.75)
b2 91 (3.58) 115 (4.52) 133 (5.23) 90 (3.54)
b3 70 (2.75) 94 (3.70) 101 (3.97) 70 (2.75)
b4 176 (6.92) 176 (6.92) 200 (7.87) 176 (6.92)
e1 91 (3.58) 103 (4.05) 110 (4.33) 89 ± 2 (3.50 ± 0.07)
e2 57 (2.24) 69 (2.71) 76 (2.99) 79 ± 2 (3.50 ± 0.07)
e3 49 (1.92) 61 (2.40) 68 (2.67) -
