![Siemens 6SL3210-1SE27-5UA0 [44/318] Dimension drawings](/img/pdf.png)
Siemens 6SL3210-1SE27-5UA0 [44/318] Dimension drawings
![Siemens 6SL3210-1SE16-0AA0 [44/318] Dimension drawings](/views2/1587218/page44/bg2c.png)
Mains connection and line-side power components
2.8 Line reactors
Manual
44 Manual, 01/2011, 6SL3097-4AC10-0BP2
2.8.3 Dimension drawings
Blocksize line reactors
%
%
%
&
&
&
$
$
$
)UDPHVL]H)6&
)UDPHVL]H)6%
)UDPHVL]H)6$

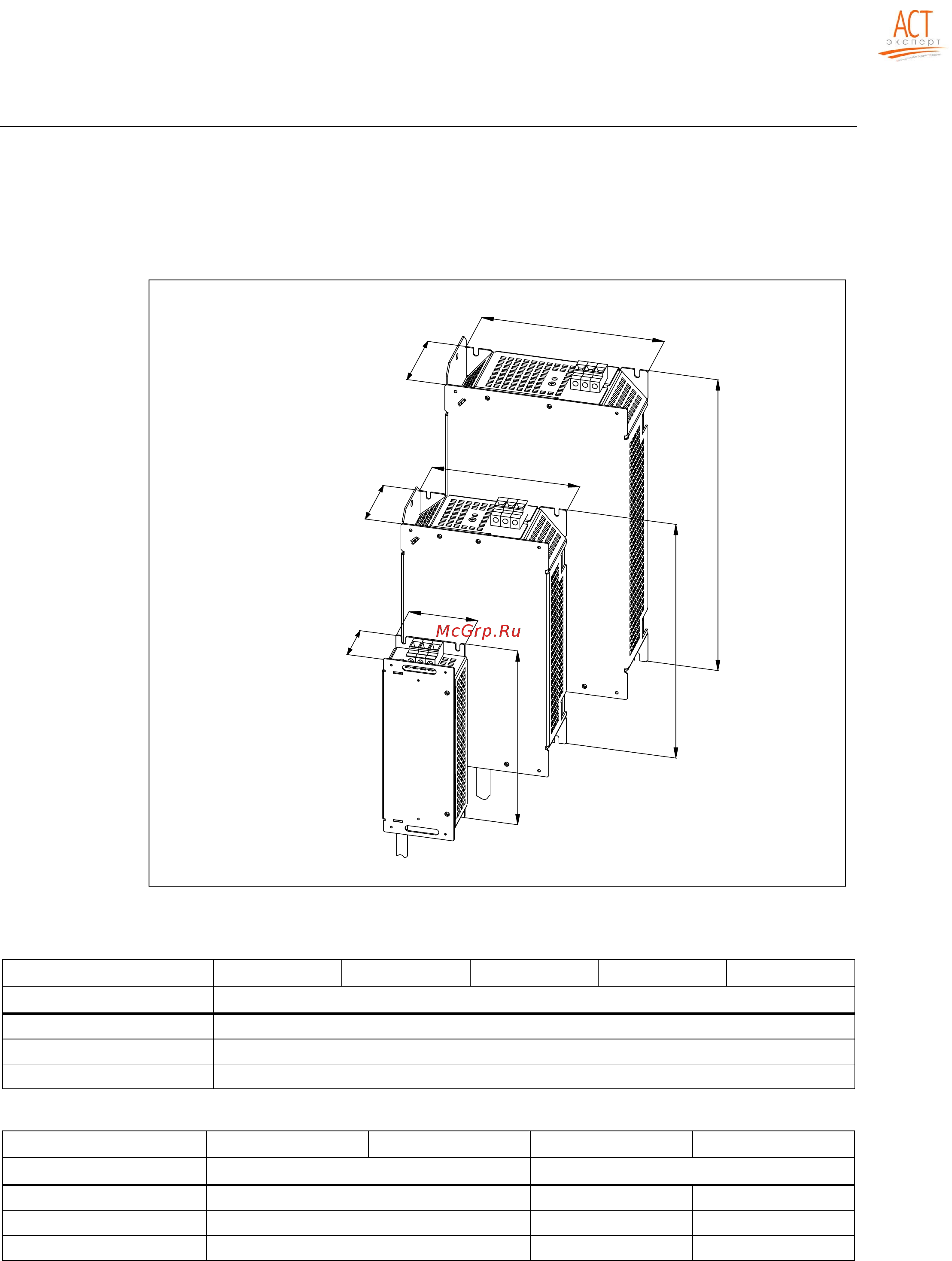

Figure 2-4 Dimension drawing of line reactors, frame sizes FSA, FSB, and FSC
Table 2- 2 Dimensions of line reactors, frame size FSA, all data in mm and (inches)
Line reactor 6SE6400- 3CC00-4AB3 3CC01-0AB3 3CC00-2AD3 3CC00-4AD3 3CC00-6AD3
Frame size FSA
A 200 (7.87)
B 75 (2.95)
C 50 (1.96)
Table 2- 3 Dimensions of line reactors, frame sizes FSB and FSC, all data in mm and (inches)
Line reactor 6SL3203- 0CD21-0AA0 0CD21-4AA0 0CD22-2AA0 0CD23-5AA0
Frame size FSB FSC
A 270 (10.62) 336 (13.22) 336 (13.22)
B 153 (6.02) 189 (7.44) 189 (7.44)
C 70 (2.75) 50 (1.96) 80 (3.14)
