Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
31
Mains connection and line-side power components
2
2.1 Introduction
The following line-side components should be used to connect a SINAMICS Blocksize drive
line-up to the supply network:
● Line disconnector
● Overcurrent protection device (line fuse or circuit breaker)
● Line contactor (this is required for galvanic isolation)
● Line filter (optional for Power Module PM340, frame size FSA)
● Line reactor (optional).
The possible supply voltages for the drive line-up are
● 1-ph. 200 V to 1-ph. 240 V AC ± 10%
● 3-ph. 380 V to 3-ph. 480 V AC ± 10%
The following line reactor variants are available:
● 3 versions for frame sizes FSA - FSC (chassis)
● 5 versions for frame sizes FSD - FSF (3 chassis and 2 standalone)
The following line filter variants are available:
● Integrated
● External
– Base
– Standalone
7KUHHSKDVH
0RWRU
2SWLRQDO
OLQHUHDFWRU
2SWLRQDO
OLQHILOWHU
&RQWDFWRU
)XVH
3RZHU0RGXOH
%ORFNVL]H
:
9
8
/
/
3(
/
3(
3(
/
/
/

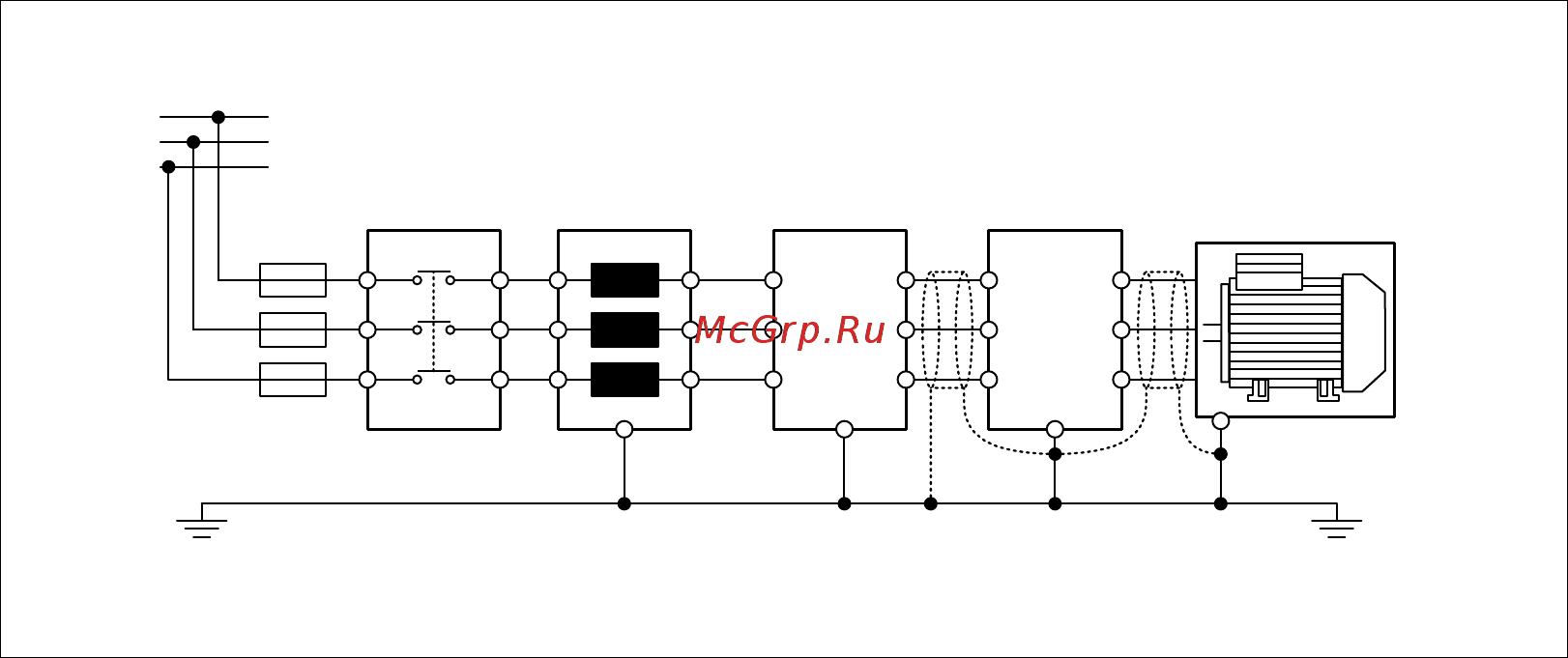

Figure 2-1 Example of a line connection for Power Modules blocksize with no integrated line filter
