![Siemens 6SL3210-1SE27-5UA0 [291/318] Frame sizes fsd fse](/img/pdf.png)
Siemens 6SL3210-1SE27-5UA0 [291/318] Frame sizes fsd fse
![Siemens 6SL3210-1SE31-5UA0 [291/318] Frame sizes fsd fse](/views2/1587218/page291/bg123.png)
Service and maintenance
11.2 Service and maintenance for components, Blocksize format
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
291
Frame sizes FSD/FSE

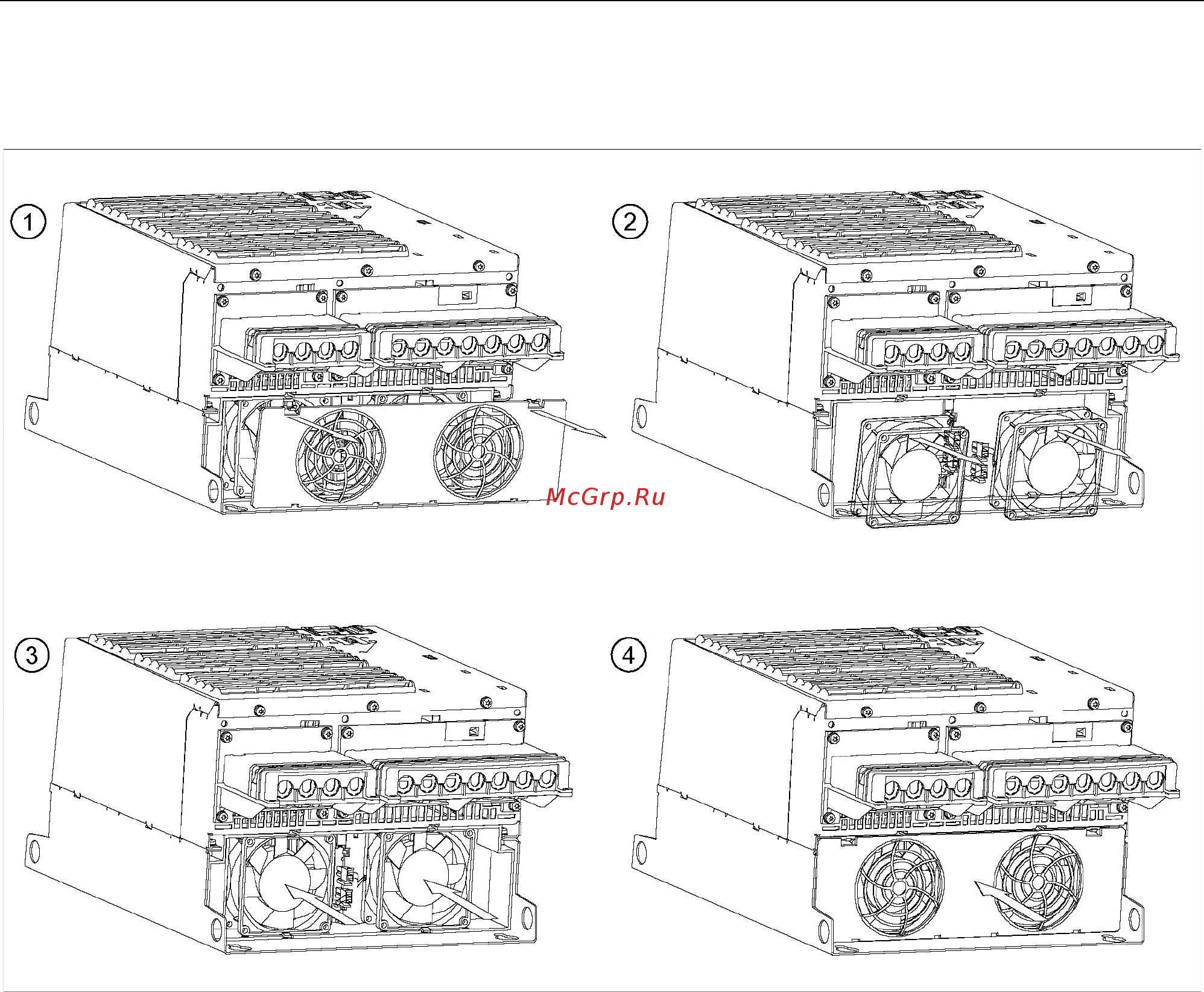

Figure 11-3 PM340 fan replacement, frame sizes FSD/FSE
1. Remove the cover.
2. Remove both connectors and both fans.
3. Insert the new fans and reattach both connectors.
4. Close the cover.
