Power Modules
3.1 Power Modules Blocksize (PM340)
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
75

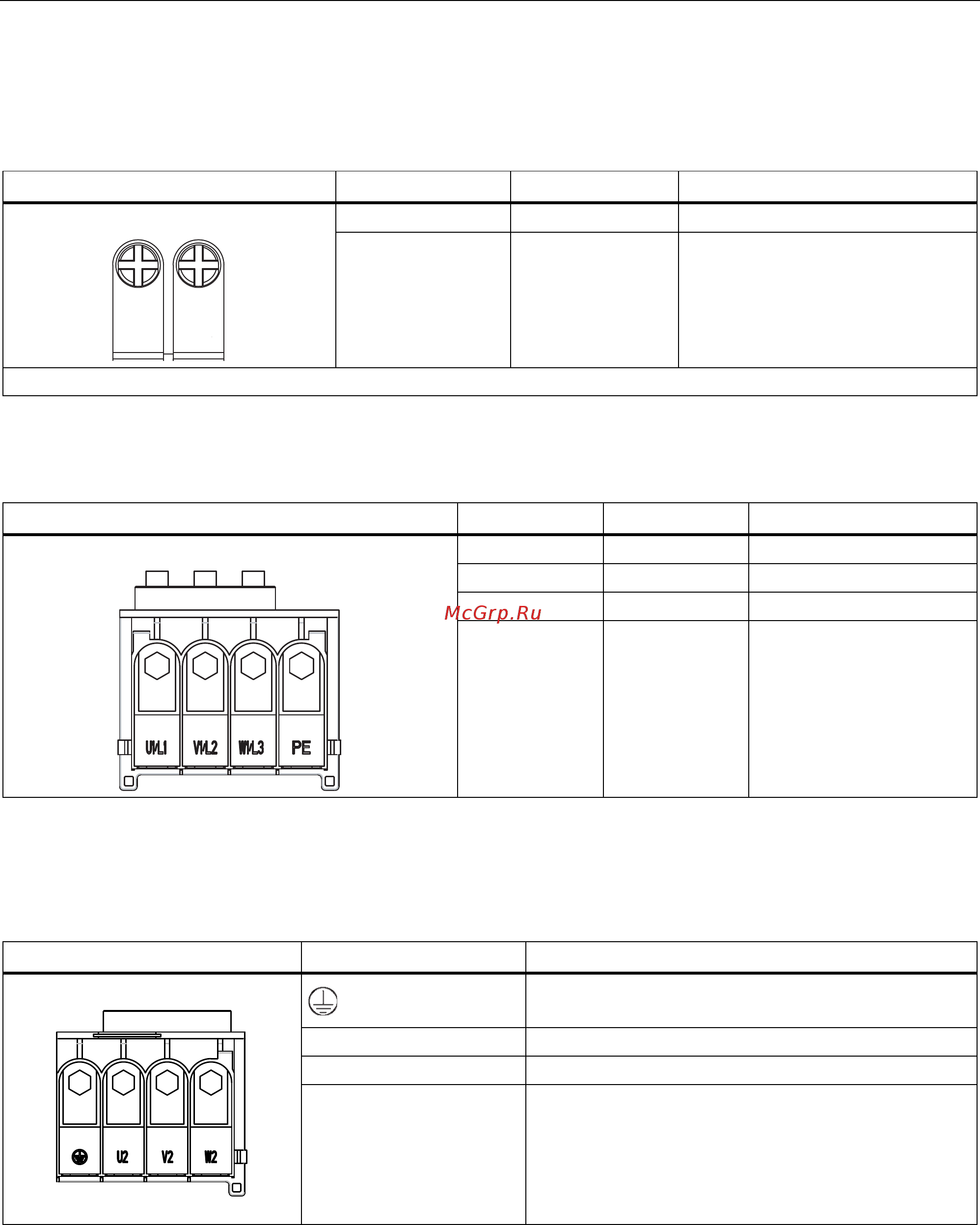

3.1.3.2 Line supply connection
Table 3- 2 Terminal block, line supply connection 1-ph. 200 V - 240 V AC
Terminal Signal name Technical specifications
1 L Line phase L
/
8
/
1
9
/
2 N Line phase N
Max. conductor cross-section: 2.5 mm²
Table 3- 3 Terminal block, line supply connection 3-ph. 380 V - 480 V AC
Terminal Signal name Technical specifications
1 U1/L1 External conductor L1
2 V1/L2 External conductor L2
3 W1/L3 External conductor L3
4 PE PE connection
3.1.3.3 Motor connection
Table 3- 4 Terminal block, motor connection 200 V - 240 V 1 AC and 380 V - 480 V 3 AC
Terminal Technical specifications
PE connection
U2 Motor phase U
V2 Motor phase V
W2 Motor phase W
