Service and maintenance
11.2 Service and maintenance for components, Blocksize format
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
289
Frame size FSA/FSB/FSC
Note
You will require a cross-tip screwdriver to remove and install the fan of the PM340 for frame
sizes FSA to FSC.

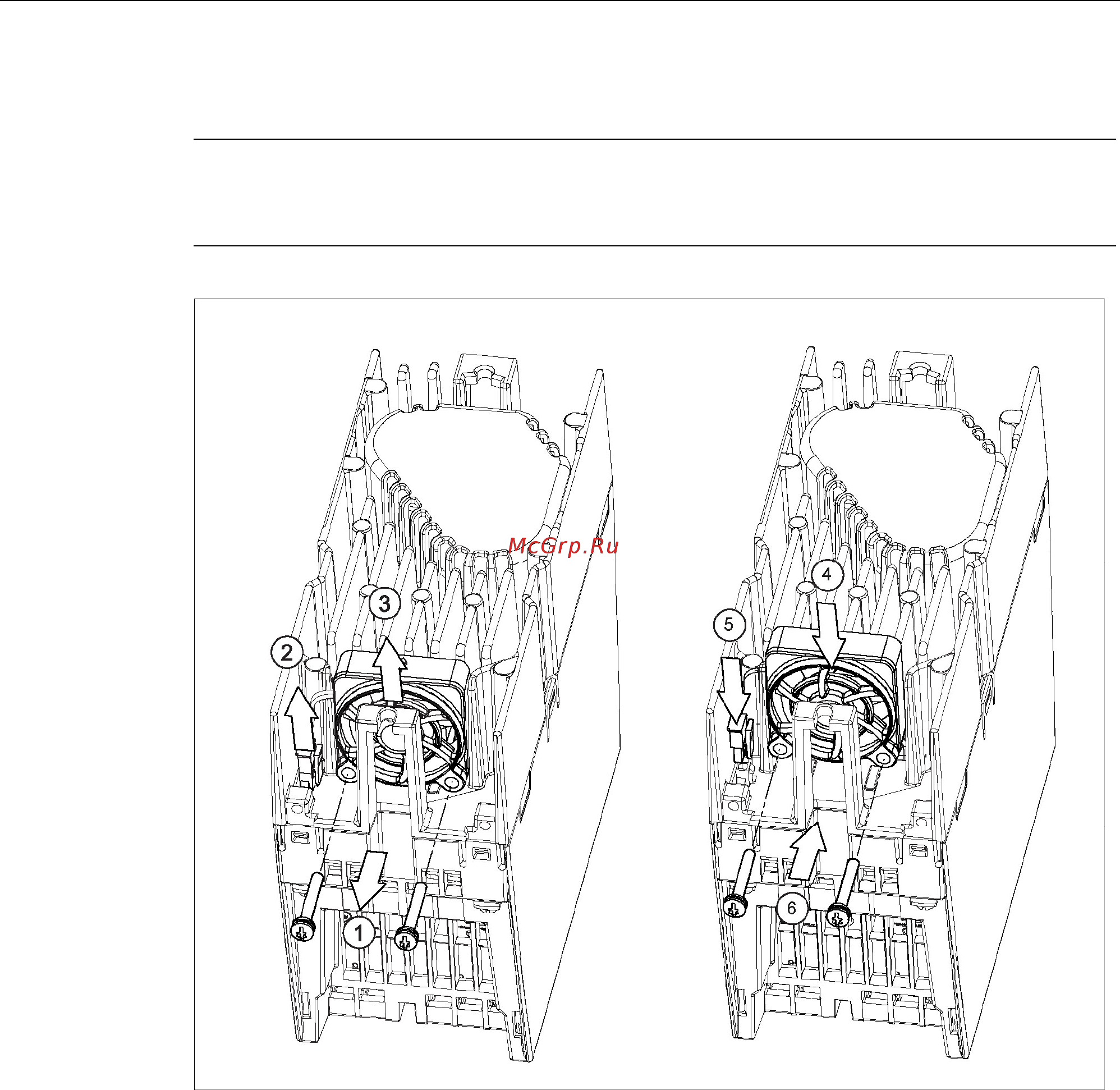

Figure 11-1 PM340 fan replacement, frame size FSA
1. Remove the fixing screws.
2. Remove the connector.
3. Remove the fan.
4. Insert the new fan.
5. Insert the connector.
6. Tighten the mounting screws (0.4 Nm tightening torque).
