Siemens 6SL3210-1SE27-5UA0 [45/318] Line reactors 2 line reactors
![Siemens 6SL3210-1SE31-0AA0 [45/318] Line reactors 2 line reactors](/views2/1587218/page45/bg2d.png)
Mains connection and line-side power components
2.8 Line reactors
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
45
%
%
&
&
$
$
)UDPHVL]H)6'
)UDPHVL]H)6(

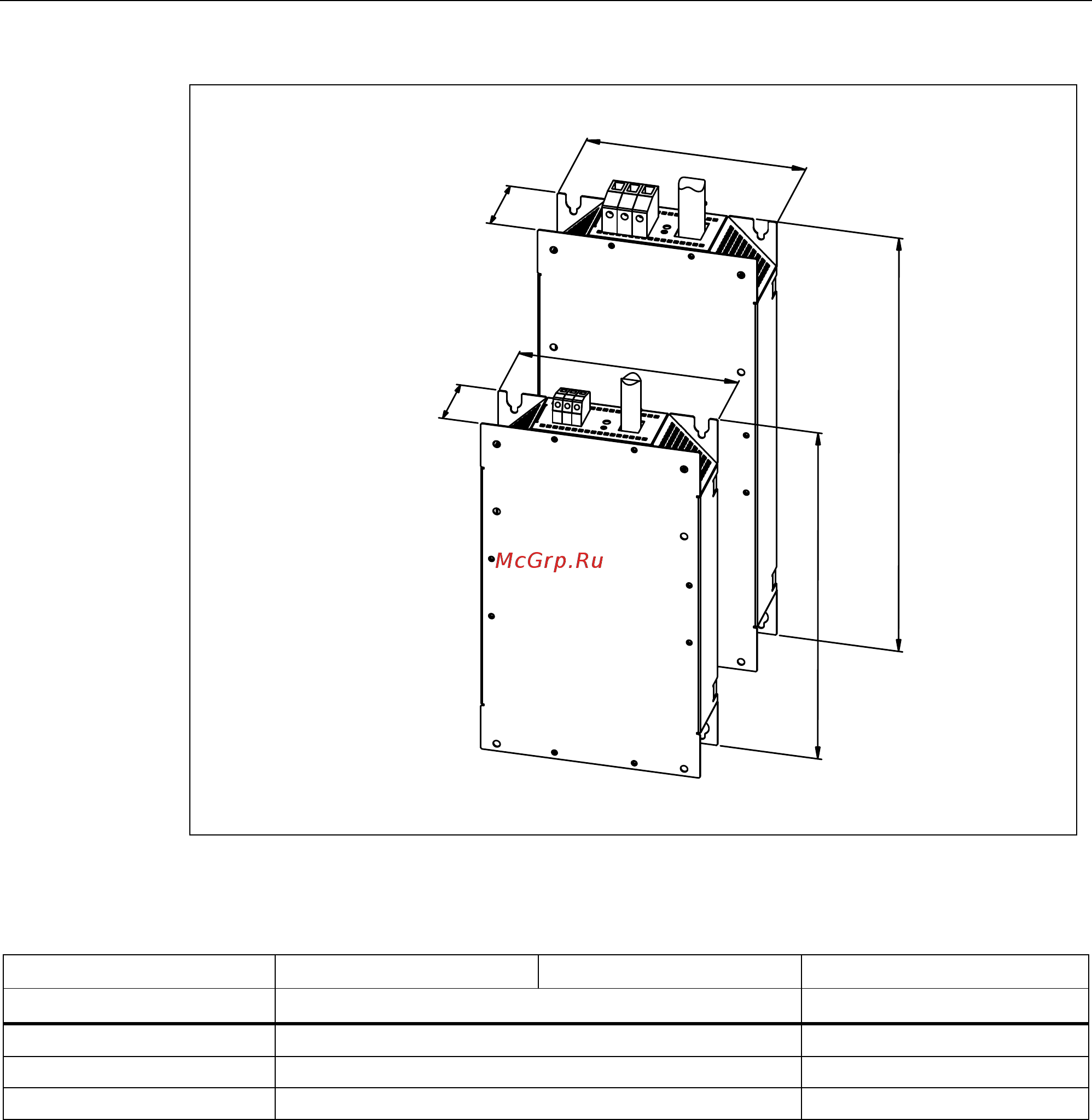

Figure 2-5 Dimension drawing of line reactors, frame sizes FSD and FSE
Table 2- 4 Dimensions of line reactors, frame sizes FSD and FSE, all data in mm and (inches)
Line reactor 6SL3203- 0CJ24-5AA0 0CD25-3AA0 0CJ28-6AA0
Frame size FSD FSE
A 455 (17.91) 577 (22.71)
B 275 (10.82) 275 (10.82)
C 83.5 (3.28) 93.5 (3.68)
