Supplementary system components and encoder system integration
7.3 Sensor Module Cabinet-Mounted SMC20
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
201
7.3.3.2 DRIVE-CLiQ interface X500

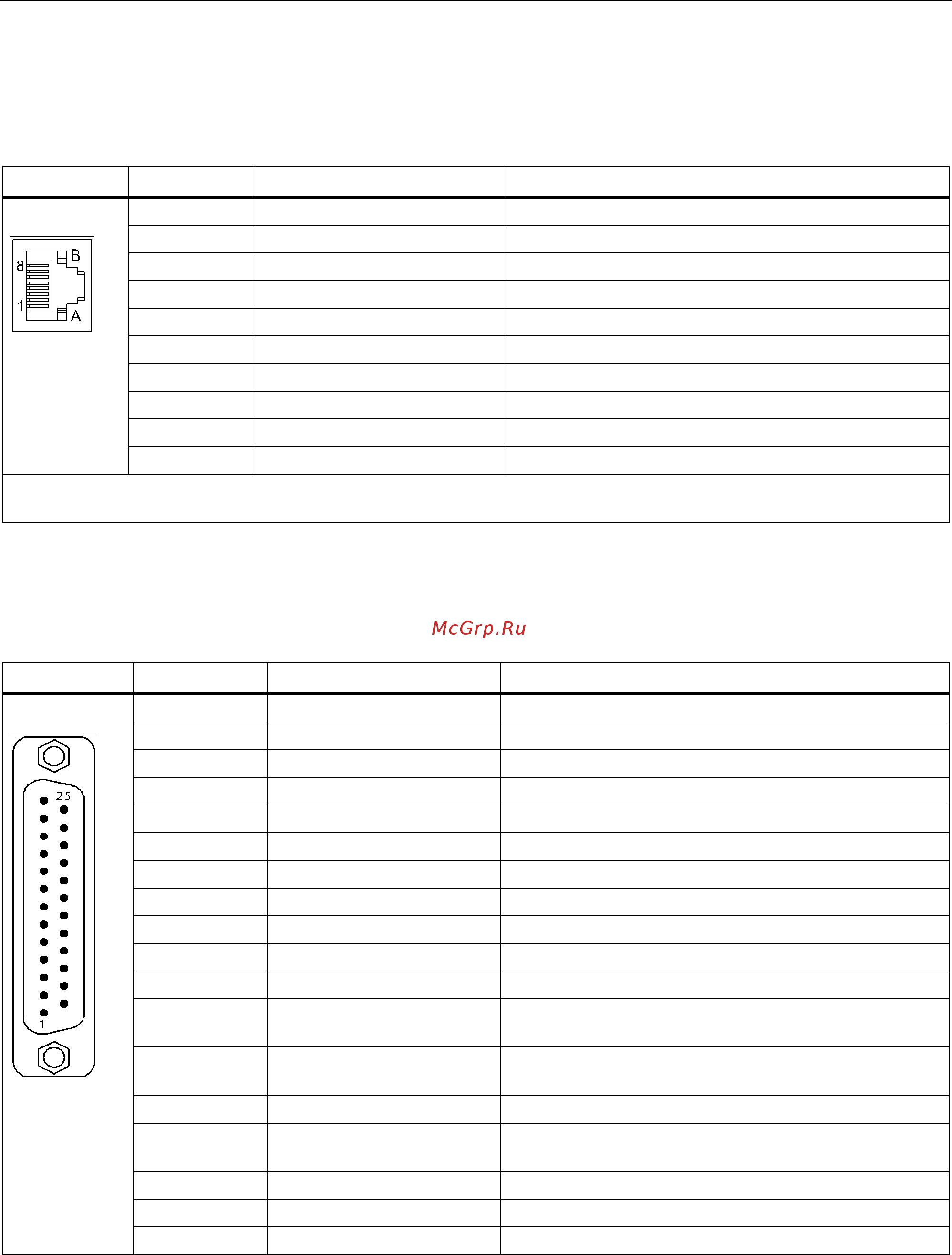

Table 7- 9 DRIVE-CLiQ interface X500
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A Reserved, do not use
B GND (0 V) Electronic ground
Connector type: RJ45 socket; blanking plate for DRIVE-CLiQ interface included in the scope of delivery;
blanking plate (50 pieces) Order no.: 6SL3066-4CA00-0AA0
7.3.3.3 X520 encoder system interface
Table 7- 10 X520 encoder system interface
Pin Signal name Technical specifications
1 P encoder Encoder power supply
2 M encoder Ground for encoder power supply
3 A Incremental signal A
4 A* Inverse incremental signal A
5 Ground Ground (for internal shield)
6 B Incremental signal B
7 B* Inverse incremental signal B
8 Ground Ground (for internal shield)
9 Reserved, do not use
10 Clock Clock, EnDat interface, SSI clock
11 Reserved, do not use
12 Clock*
Inverted clock, EnDat interface,
inverted SSI clock
13 + Temp Motor temperature measurement KTY84-1C130 (KTY+)
Temperature sensor KTY84-1C130 / PTC
14 P sense Sense input encoder power supply
15 Data Data, EnDat interface,
SSI data
16 M sense Ground sense input encoder power supply
17 R Reference signal R
18 R* Inverse reference signal R
