CU305 Control Units
6.3 Interfaces
Manual
172 Manual, 01/2011, 6SL3097-4AC10-0BP2
6.3.4.11 Memory card slot
A memory card is needed in the following cases:
1. Saving parameters
Parameters are saved on the memory card and can simply be copied onto the new
CU305 if the component needs to be replaced.
2. Firmware update
It is easy to perform a firmware update using a memory card.
3. License carrier
The license is stored on the memory card.
Note
The CU305 can be operated without the memory card. The memory card only needs to
be inserted into the CU305 because it is the license carrier for the Safety functions.

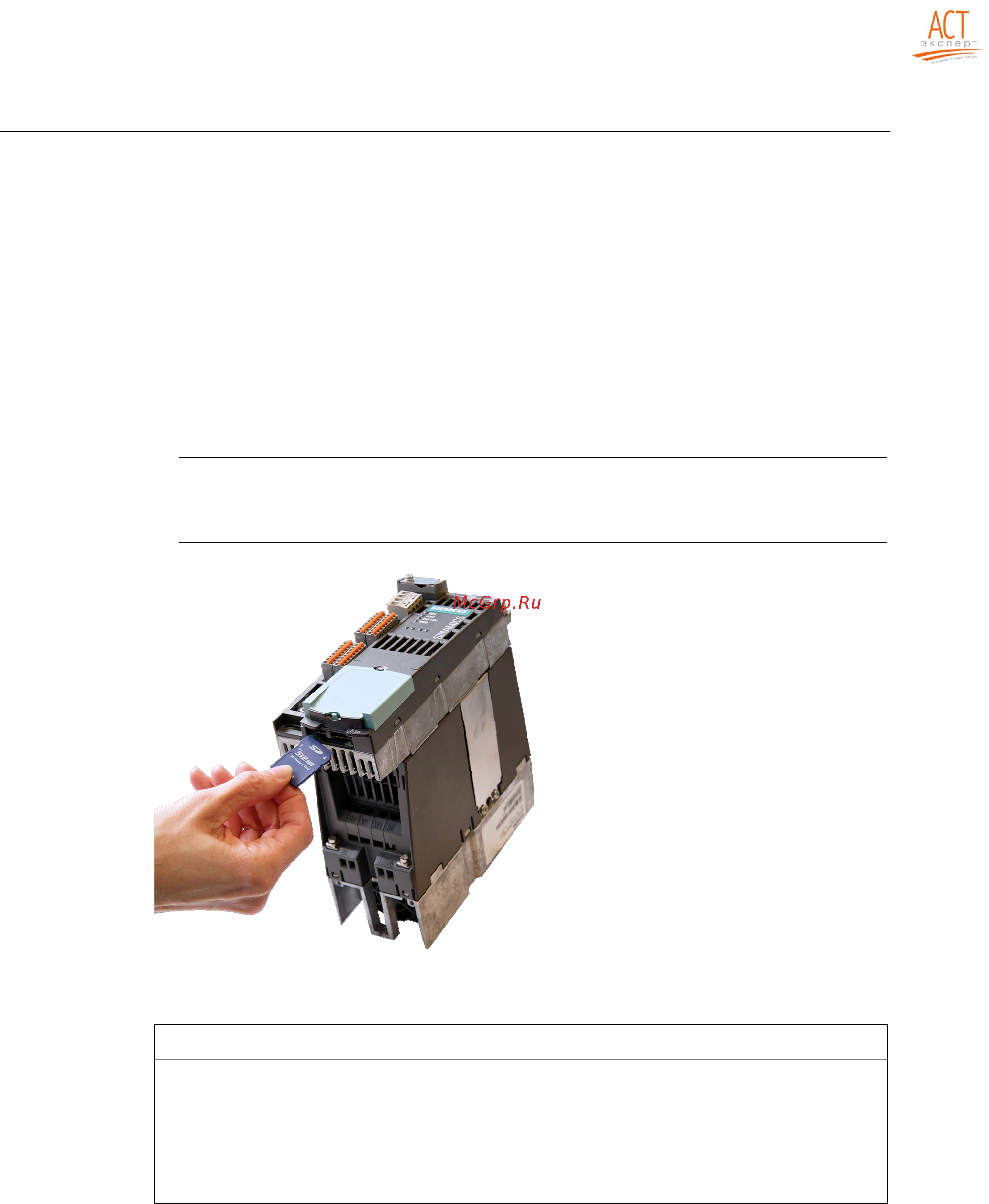

Figure 6-8 Memory card slot
CAUTION
The memory card may only be inserted as shown in the figure (arrow top right).
The memory card should not be removed or inserted while data is being saved.
When returning a defective Control Unit, remove the memory card and keep it for insertion
in the replacement unit. This is important otherwise the data on the memory card
(parameters, firmware, licenses, and so on) may be lost.
Working with the memory card
For more detailed information on how to use the memory card, please refer to the
SINAMICS S110 Function Manual.
