Mains connection and line-side power components
2.8 Line reactors
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
49
,
-
*
+
+

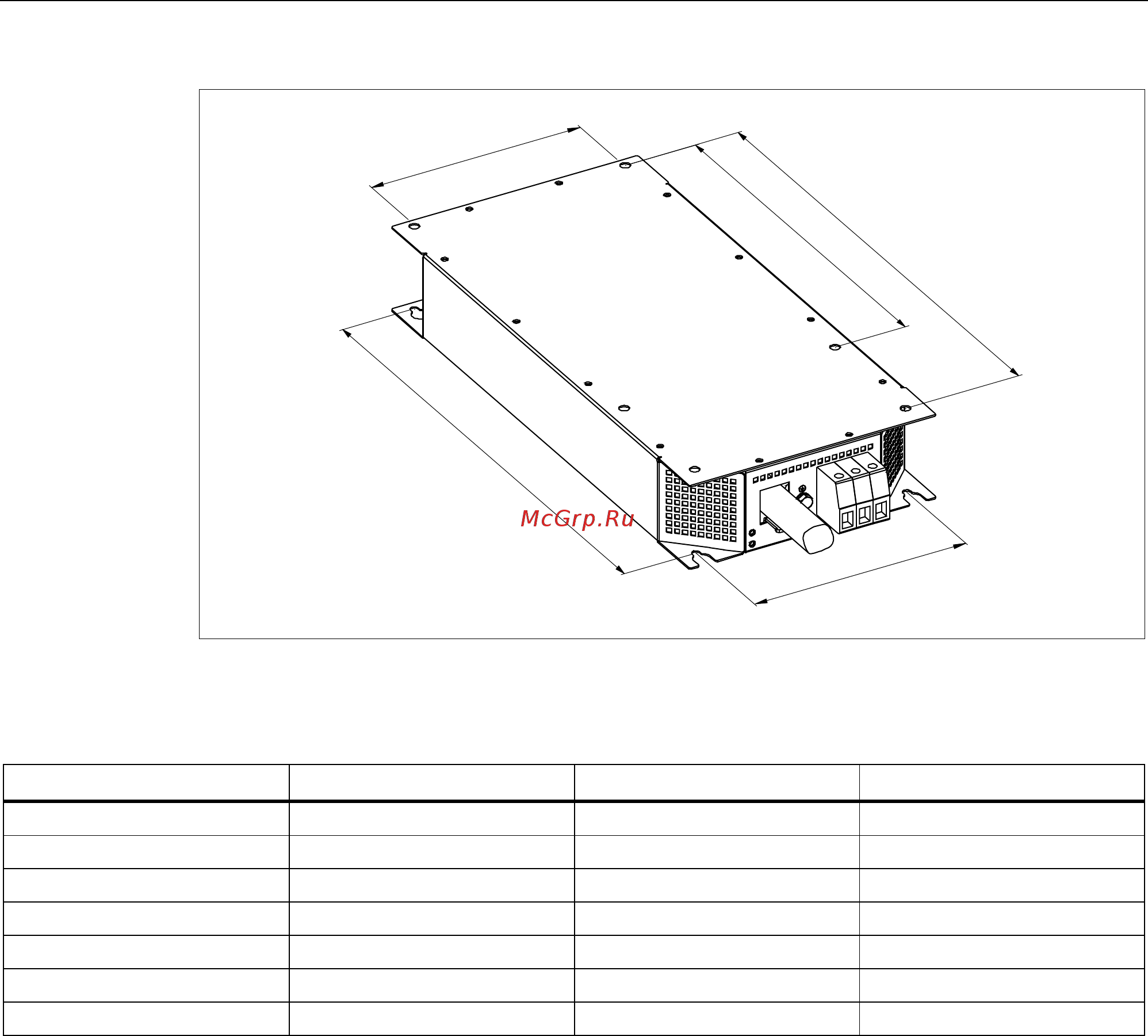

Figure 2-9 Mounting dimensions for line reactors with frame sizes FSD and FSE
Table 2- 8 Mounting dimensions for line reactors with frame sizes FSD and FSE, all data in mm and (inches)
Line reactor 6SL3203- 0CD25-3AA0 0CJ24-5AA0 0CJ28-6AA0
Frame size FSD FSE
G 235 (9.25) 235 (9.25) 235 (9.25)
H1 325 (12.79) 325 (12.79) 405 (15.95)
H2 419 (16.50) 419 (16.50) 541 (21.30)
I 235 (9.25) 235 (9.25) 235 (9.25)
J 421 (16.57) 421 (16.57) 544 (21.42)
Securing screws 4 x M8/13 Nm 4 x M8/13 Nm
