Siemens 6SL3210-1SE27-5UA0 [227/318] Dimension drawing
![Siemens 6SL3210-1SE27-5UA0 [227/318] Dimension drawing](/views2/1587218/page227/bge3.png)
Supplementary system components and encoder system integration
7.5 Option modules, braking signal
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
227
7.5.2.4 Dimension drawing

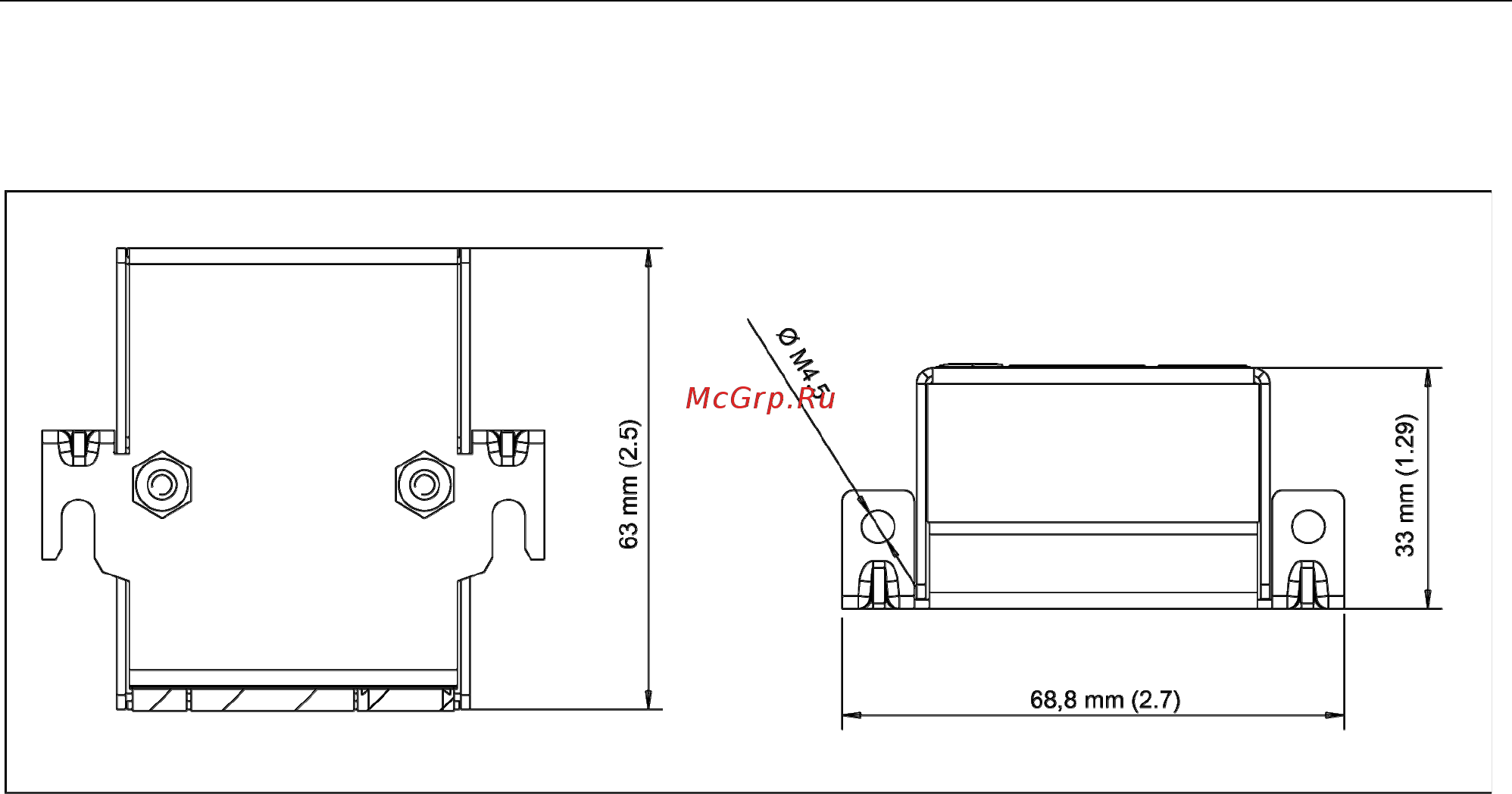

Figure 7-22 Dimension drawing of Safe Brake Relay, all data in mm and (inches)
