Hardware Installation - 16 -

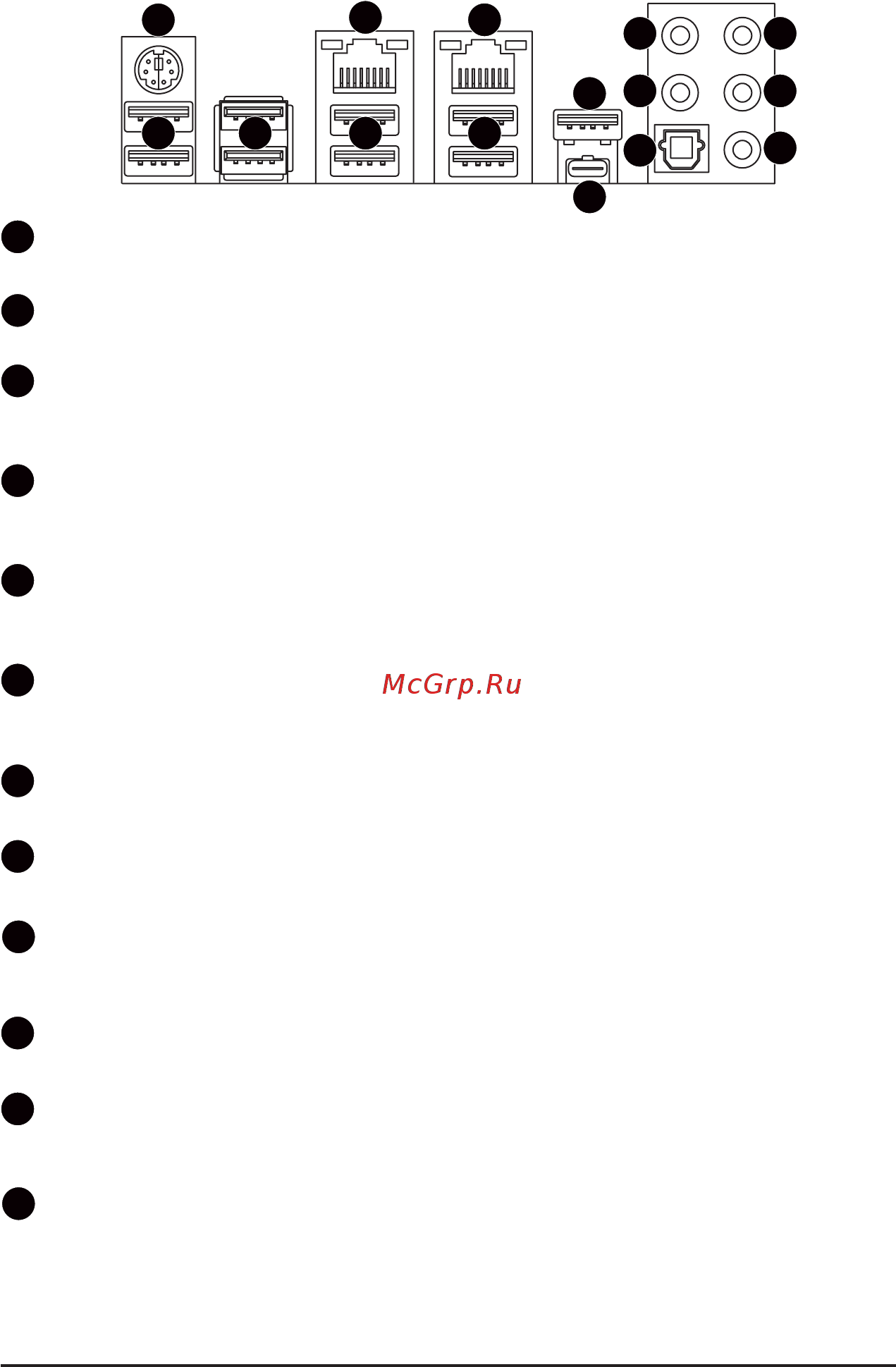

1-6 Back Panel Connectors
PS/2 Keyboard mouse connector
Connects to a PS/2 mouse or keyboard.
USB 3.0 Ports
The USB port supports the USB 3.0 specication. Use this port for USB devices.
RJ-45 LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
RJ-45 LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
USB 3.1 Type-A Port
The USB 3.1 Type-A port supports the USB 3.1 Gen 1/2 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
USB 3.1 Type-C Port
The reversible USB port supports the USB 3.1 Gen 1/2 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
Center/Subwoofer Speaker Out Jack (Orange)
Use this audio jack to connect center/subwoofer speakers in a 5.1/ 7.1-channel audio conguration.
Rear Speaker Out Jack (Black)
Use this audio jack to connect Rear speakers in a 4/5.1/7.1-channel audio conguration.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
Line In Jack (Blue)
The default Line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc
Line Out Jack (Green)
The default Line Out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
used to connect front speakers in a 4/5.1/7.1-channel audio conguration.
Mic In (Pink)
The default MIC In jack. A microphone can be connected to the MIC In jack.
1
2 2 2 2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
