Gigabyte MW51-HP0 (rev. 1.0) [52/61] 3 chipset setup menu
![Gigabyte MW51-HP0 (rev. 1.0) [52/61] 3 chipset setup menu](/views2/1679991/page52/bg34.png)
BIOS Setup - 52 -

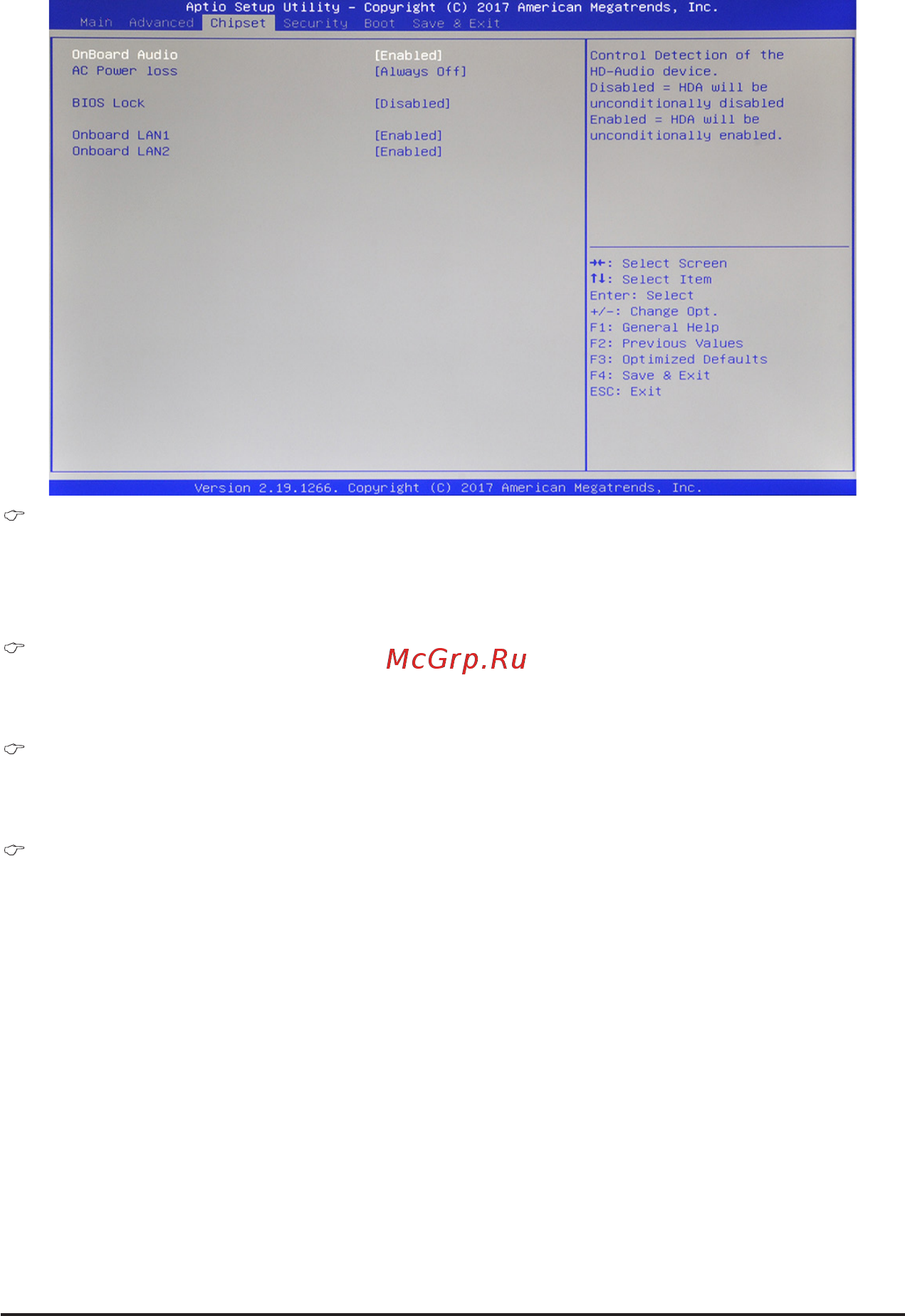

2-3 Chipset Setup Menu
Chipset Setup menu displays submenu options for conguring the function of the North Bridge. Select a
submenu item, then press [Enter] to access the related submenu screen.
OnBoard Audio
Enable/Disable the onboard audio controller. When enabled, HD audio will be unconditionally enabled.
When disabled, HD audio will be unconditionally disabled
Options available: Enabled/Disabled. Default setting is Enabled.
AC Power Loss
Species what state to go to when the power is re-applied after a power failure.
Options available: Always On/Always Off/Last State. Default setting is Always Off.
BIOS Lock
Enable/Disable the PCH BIOS Lock Enable feature.
Options available: Enabled/Disabled. Default setting is Disabled.
Onboard LAN 1/2
Enable/Disable the onboard LAN 1/2 controller.
Options available: Enabled/Disabled. Default setting is Enabled.
