Hardware Installation - 22 -

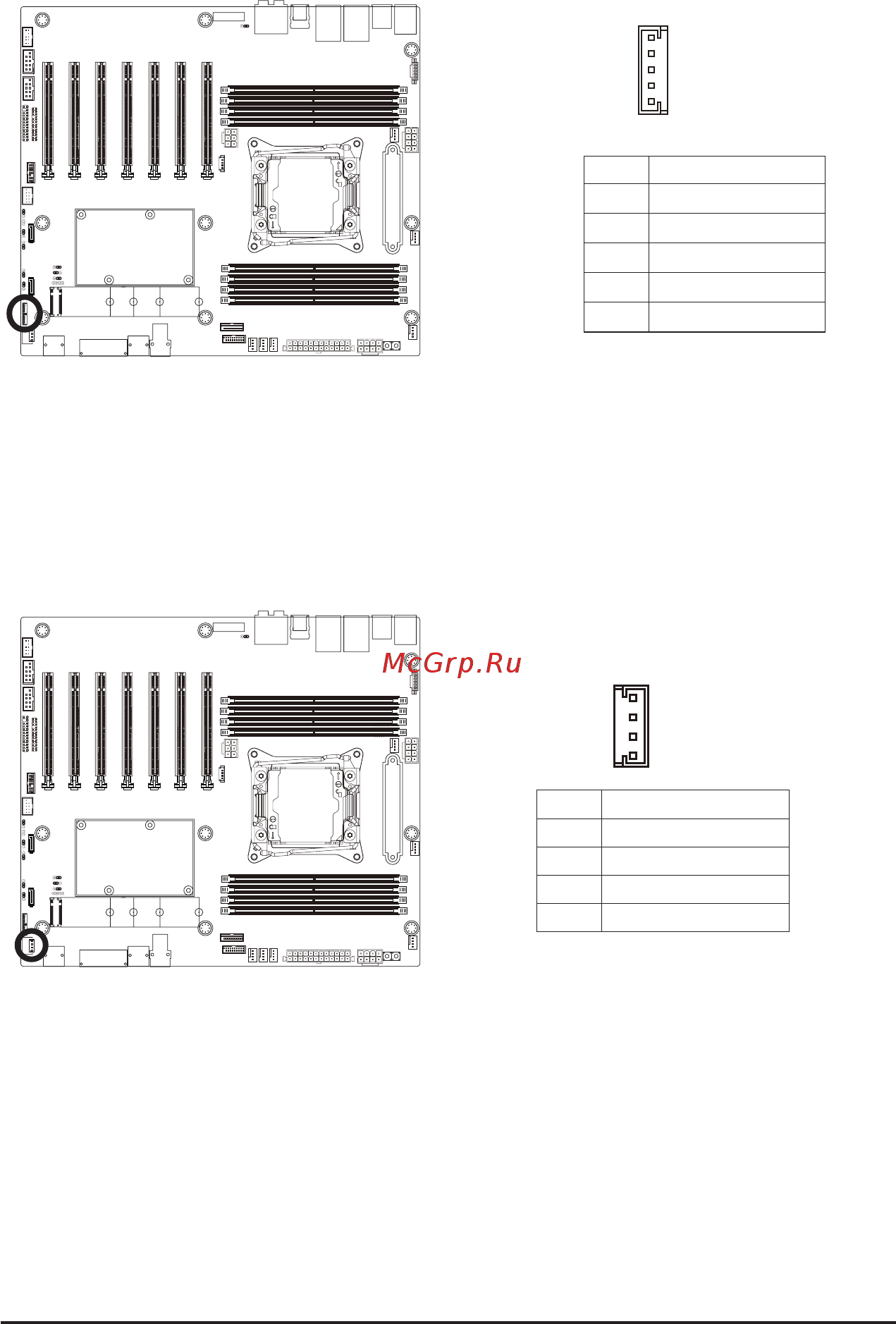

12/13) SATA_SGP1/ SATA_SGP2 (SATA SGPIO) Connector
Serial General Purpose Input/Output (SGPIO) is a communication method used between a host bus adapter
(HBA) and a main board.
Pin No. Denition
1 SGPIO_DATAOUT
2 GND
3 SGPIO_DATAIN
4 SGPIO_LOAD
5 SGPIO_CLOCK
5
1
14) SW_RAID (SATA RAID Upgrade Key)
4
1
Pin No. Denition
1 GND
2 P_3V3_AUX pull high
3 GND
4 RAID_KEY
