Gigabyte MW51-HP0 (rev. 1.0) [34/61] 2 advanced menu
![Gigabyte MW51-HP0 (rev. 1.0) [34/61] 2 advanced menu](/views2/1679991/page34/bg22.png)
BIOS Setup - 34 -

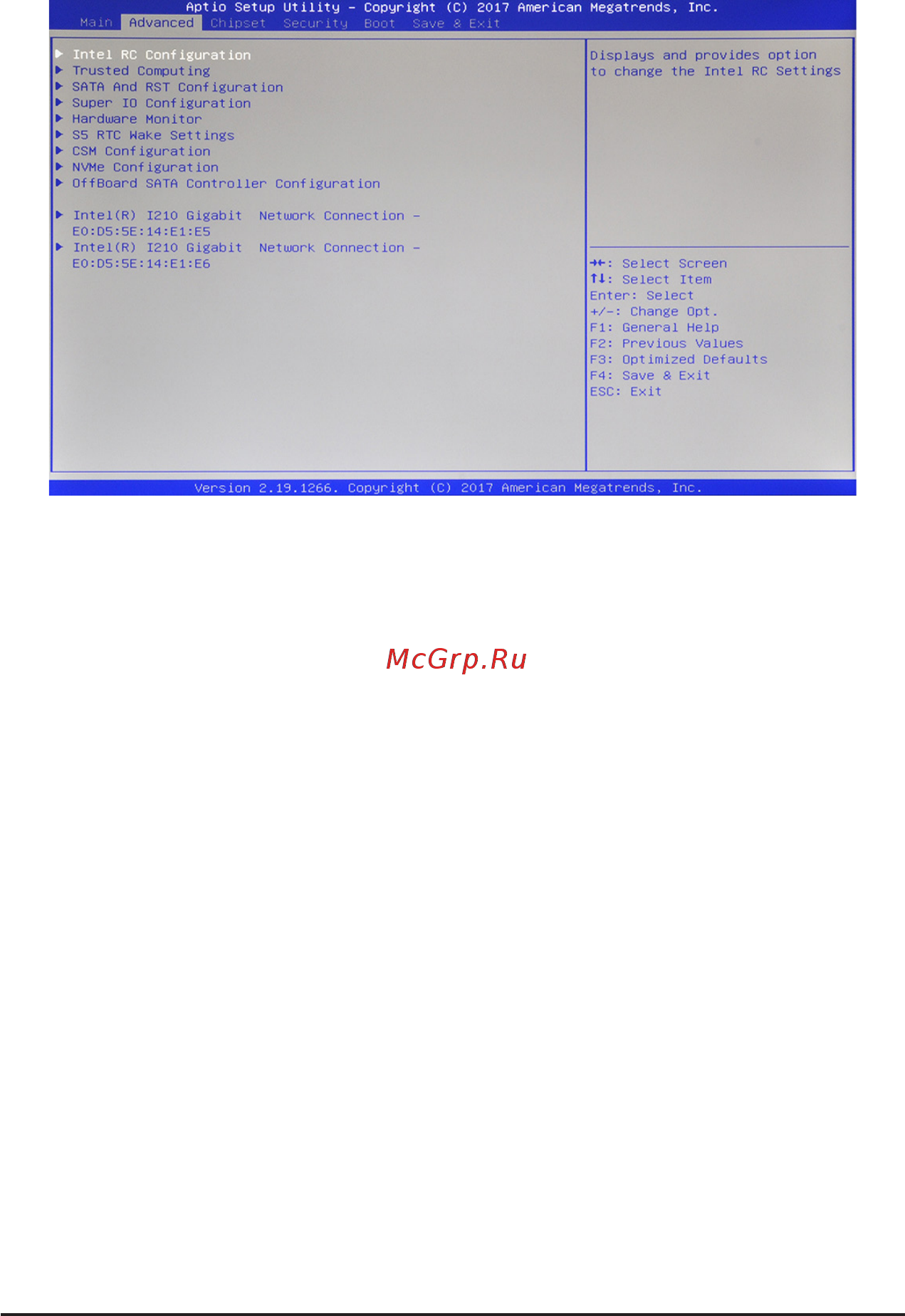

2-2 Advanced Menu
The Advanced menu display submenu options for conguring the function of various hardware components.
Select a submenu item, then press [Enter] to access the related submenu screen.
