- 59 - BIOS Setup

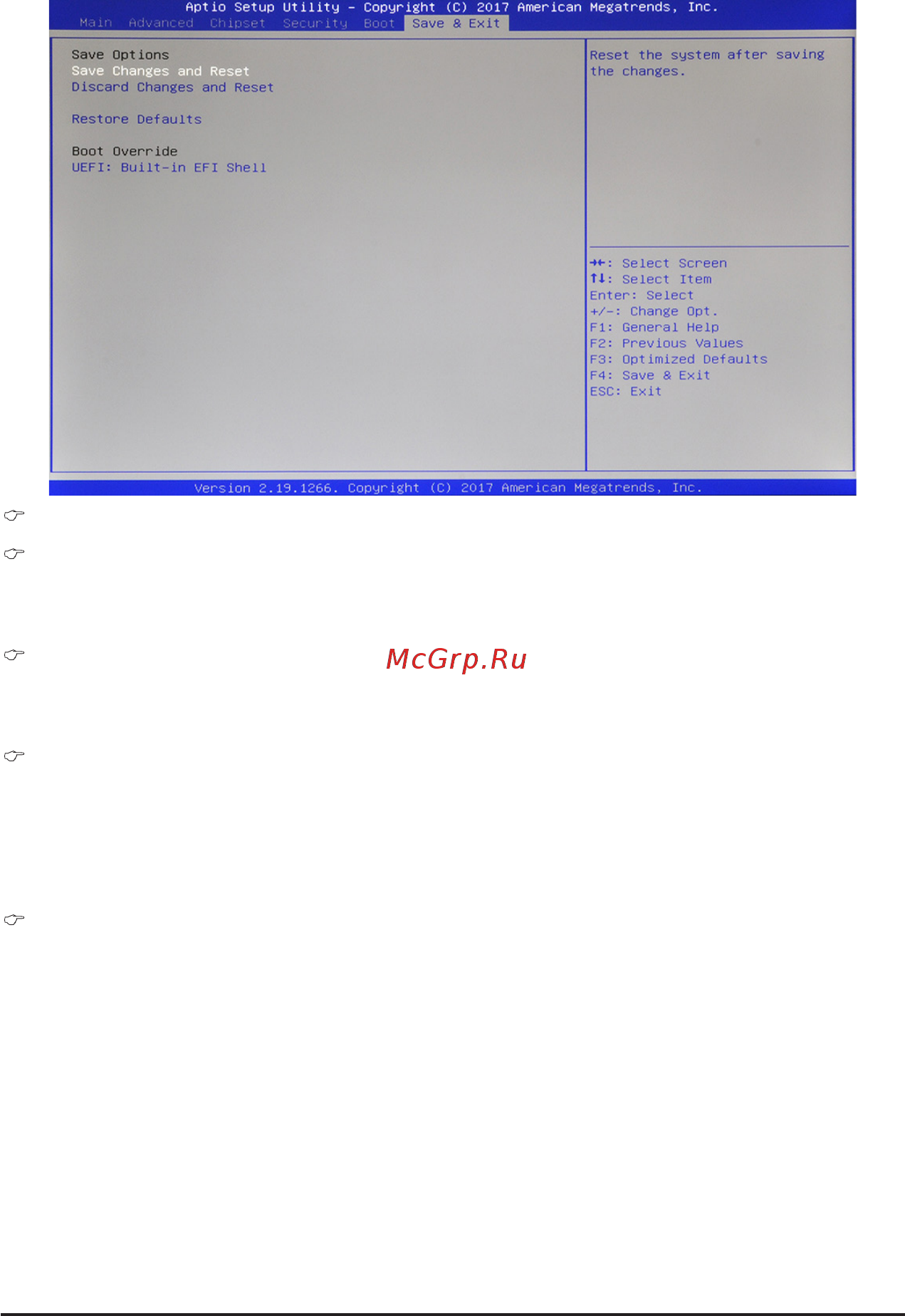

2-6 Save & Exit Menu
The Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then
press Enter.
Save Options
Save Changes and Reset
Restarts the system after saving the changes made.
Options available: Yes/No.
Discard Changes and Reset
Restarts the system without saving any changes.
Options available: Yes/No.
Restore Defaults
Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms
of resources consumption. If you are using low-speed memory chips or other kinds of low-performance
components and you choose to load these settings, the system might not function properly.
Options available: Yes/No.
Boot Override
Press [Enter] to congure the device as the boot-up drive.
