BIOS Setup - 56 -

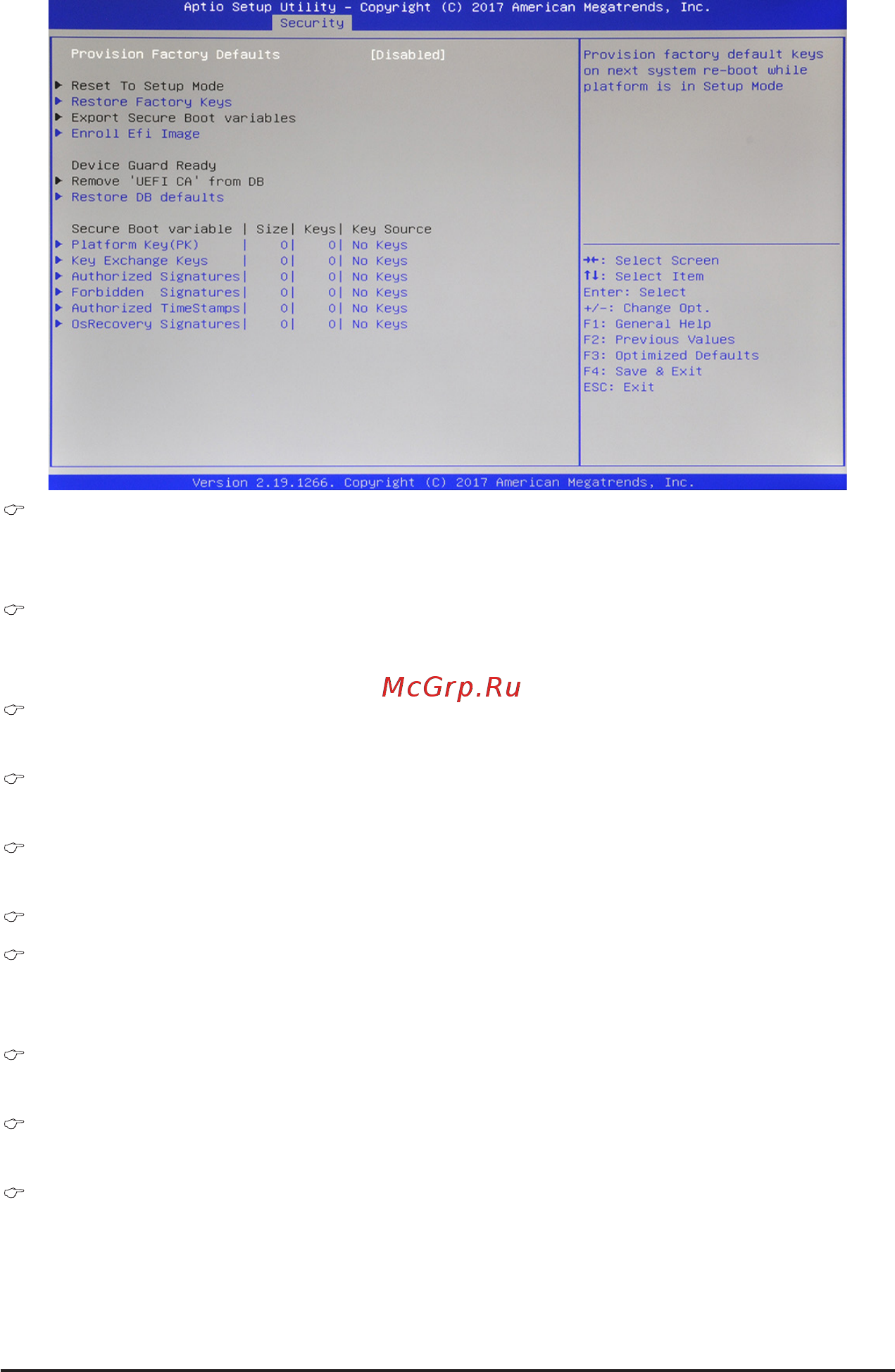

2-4-1-1 Key Management
Provision Factory Defaults
Allows to provision factory default Secure Boot keys when system is in Setup Mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Reset To Setup mode
Press [Enter] to reset the system to Setup mode.
Please note that this item is congurable when System Mode is in User Mode.
Restore Factory Keys
Press [Enter] to restore all Secure Boot Keys and key variables to factory defaults.
Export Secure Boot variables
Press [Enter] to export all Secure Boot Keys and key variables.
Enroll E Image
Press [Enter] to enroll SHA256 hash of the binary into Authorized Signature Database (DB).
Device Guard Ready
Remove 'UEFI CA' from DB
Press [Enter] to remove Microsoft UEFI CA from Secure Boot DB.
Please note that this item is congurable when the system is not in Device Guard Ready state.
Restore DB defaults
Press [Enter] to restore all DB variables to factory defaults.
Secure Boot variable
Displays the current status of the variables used for secure boot.
Platform Key (PK)
Displays the current status of the Platform Key (PK).
Press [Enter] to enroll the PK.
Options available: Update.
