- 49 - BIOS Setup

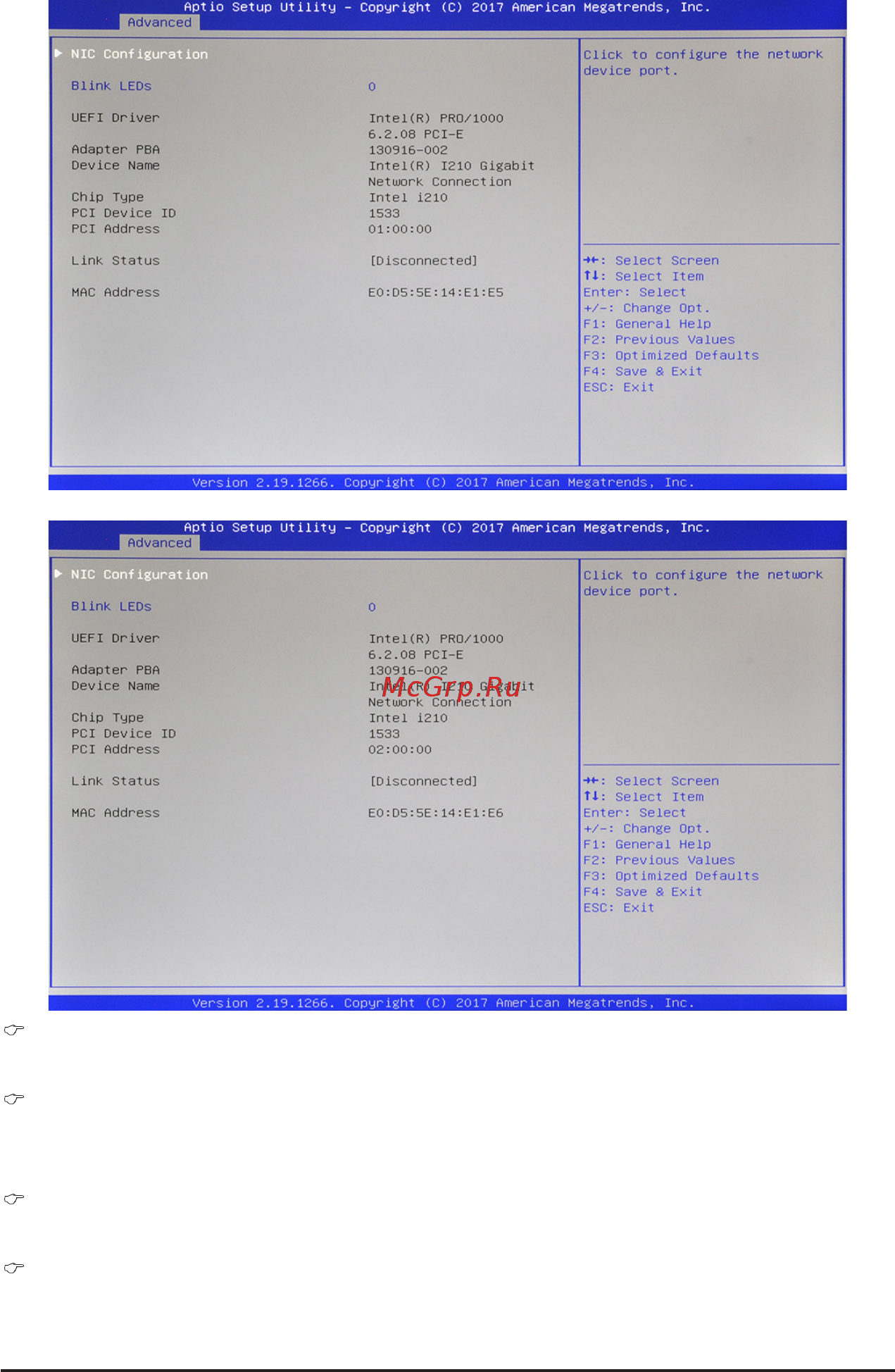

2-2-10 Intel(R) I210 Gigabit Network Connection
NIC Conguration
Press [Enter] for conguration of advanced items of the selected network device port.
Blink LEDs
Identies the physical network port by blinking the associated LED.
Press the numeric keys to adjust desired values.
UEFI Driver
Displays the technical specications for the Network Interface Controller.
Adapter PBA
Displays the technical specications for the Network Interface Controller
