- 35 - BIOS Setup

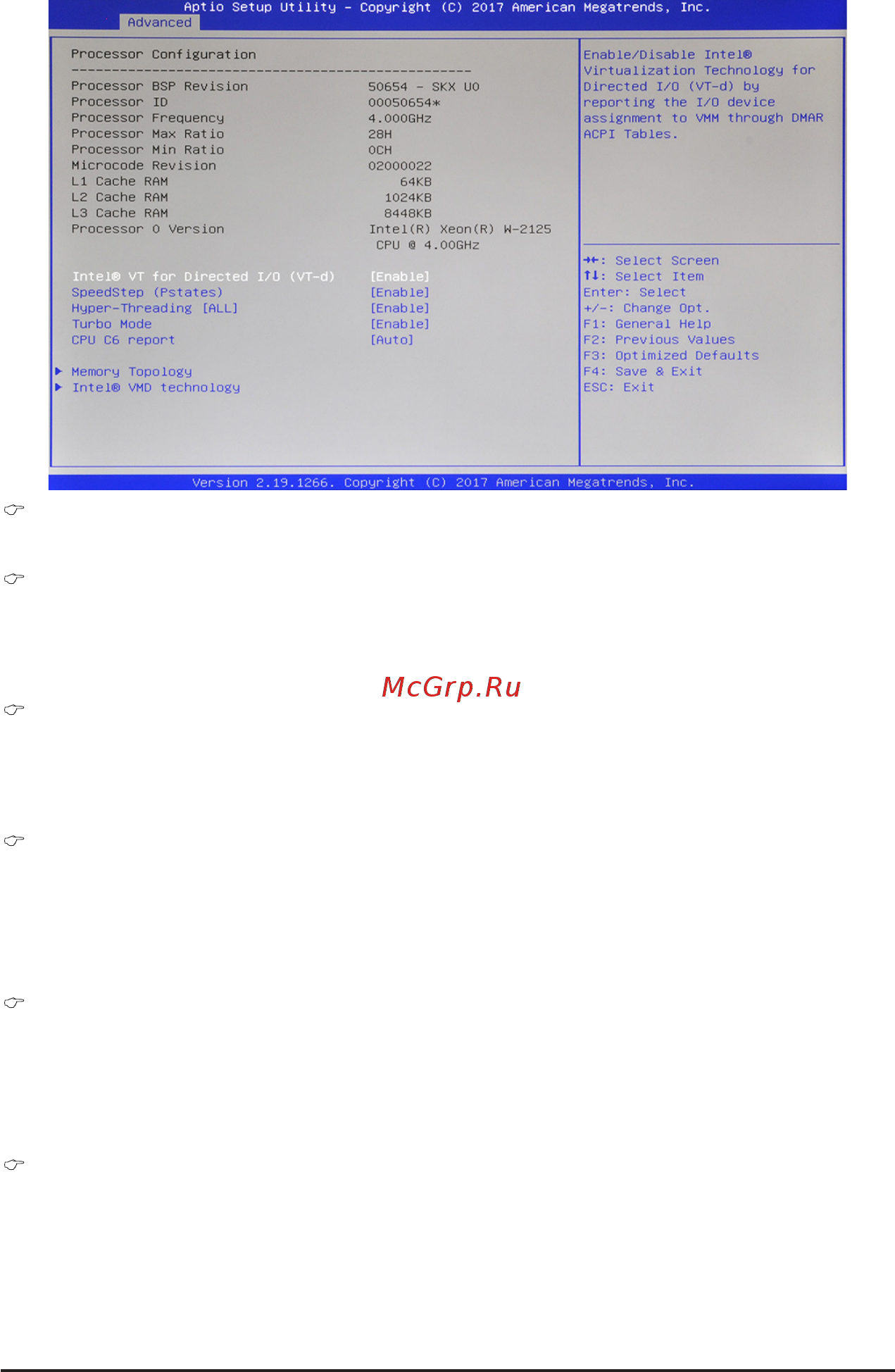

2-2-1 Intel RC Conguration
Processor Conguration
Displays the processor congurations.
Intel® VT for Directed I/O (VT-d)
Select whether to enable the Intel Virtualization Technology function. VT allows a single platform to run
multiple operating systems in independent partitions.
Options available: Enable/Disable. Default setting is Enable.
SpeedStep (Pstates)
Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high
and low levels in response to processor load.
Options available: Enable/Disable. Default setting is Enable.
Hyper-Threading [ALL]
The Hyper Threading Technology allows a single processor to execute two or more separate threads
concurrently. When hyper-threading is enabled, multi-threaded software applications can execute their
threads, thereby improving performance.
Options available: Enable/Disable. Default setting is Enable.
Turbo Mode
When this item is enabled, the processor will automatically ramp up the clock speed of 1-2 of its
processing cores to improve its performance.
When this item is disabled, the processor will not overclock any of its core.
Options available: Enable/Disable. Default setting is Enable.
CPU C6 report
Allows you to determine whether to let the CPU enter C6 mode in system halt state. When enabled,
the CPU core frequency and voltage will be reduced during system halt state to decrease power
consumption. The C6 state is a more enhanced power-saving state than C1.
Options available: Enable/Disable/Auto. Default setting is Auto.
