Hardware Installation - 18 -

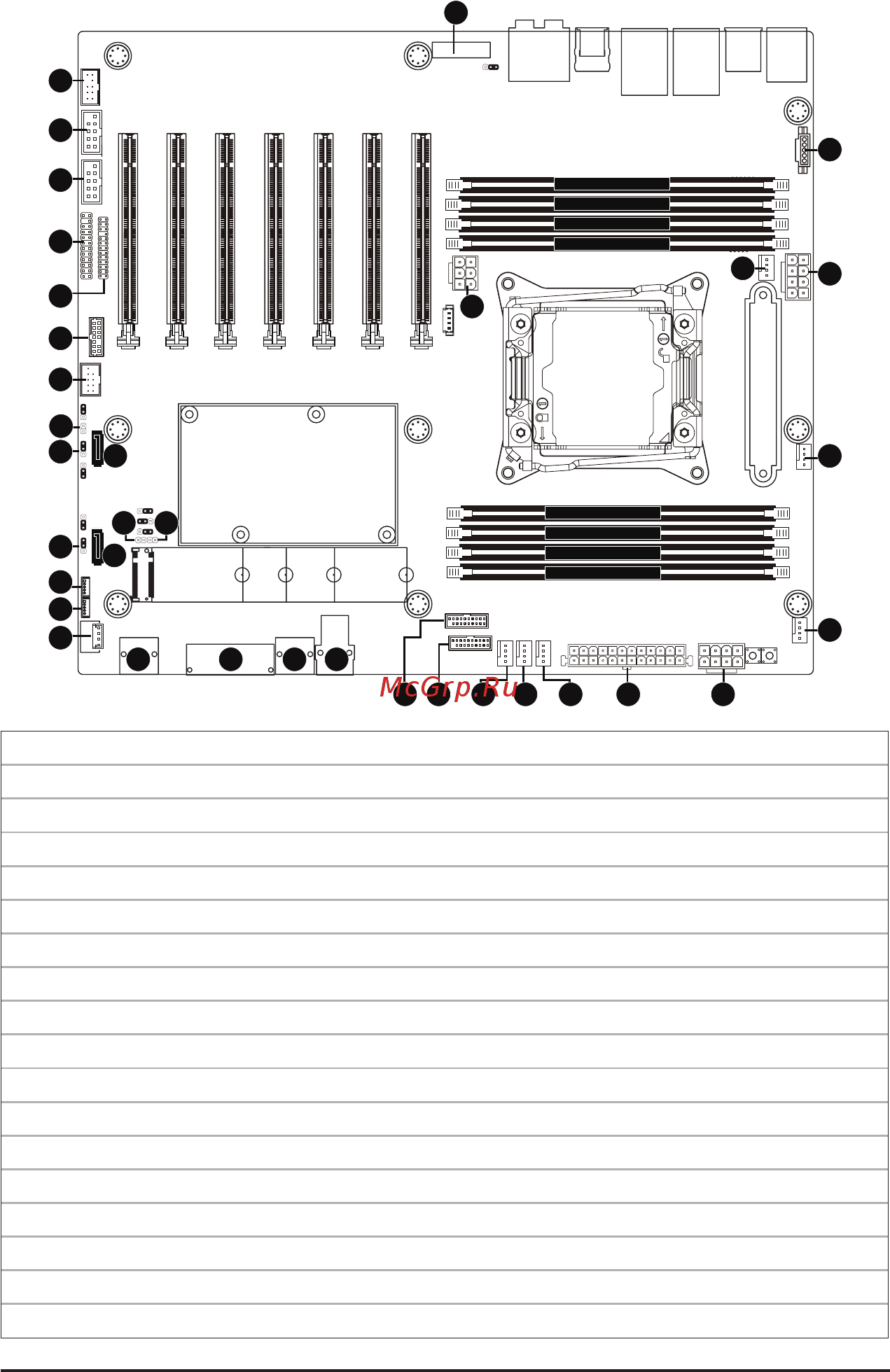

1-7 Internal Connectors
1) ATX 19) SYS_FAN4
2) P12V_AUX1 (for CPU & DDR 12V Input) 20) SYS_FAN5
3) P12V_AUX2 (for CPU & DDR 12V Input) 21) PMBUS
4) P12V_AUX3 (for PCIe Slot 12V Input) 22) U2_1
5) GSATA_0_1 23) F_USB3_1
6) SATA_x4 24) F_USB3_2
7) SATA_2_3 25) F_USB2
8) SATA0 (Support SATA DOM Power) 26) EXT_THRM1
9) SATA1 (Support SATA DOM Power) 27) EXT_THRM2
10) SATA_DOM0 (for SATA0) 28) TPM
11) SATA_DOM1 (for SATA1) 29) BP_1
12) SATA_SGP1 30) FP_1
13) SATA_SGP2 31) COM1
14) SW_RAID 32) COM2
15) CPU0 _FAN 33) F_AUDIO
16) SYS_FAN1 34) BAT
17) SYS_FAN2 35) CASE_OPEN
18) SYS_FAN3
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_A0
DIMM_P0_A1
DIMM_P0_C1
CPU
LGA 2066
DIMM_P0_C0
DIMM_P0_D1
DIMM_P0_D0
1
2
3
4
567
9
8
11
10
14
15
16
17
181920
21
22
2324
28
31
32
34
33
12
13
25
26
27
29
30
35
