BIOS Setup - 46 -

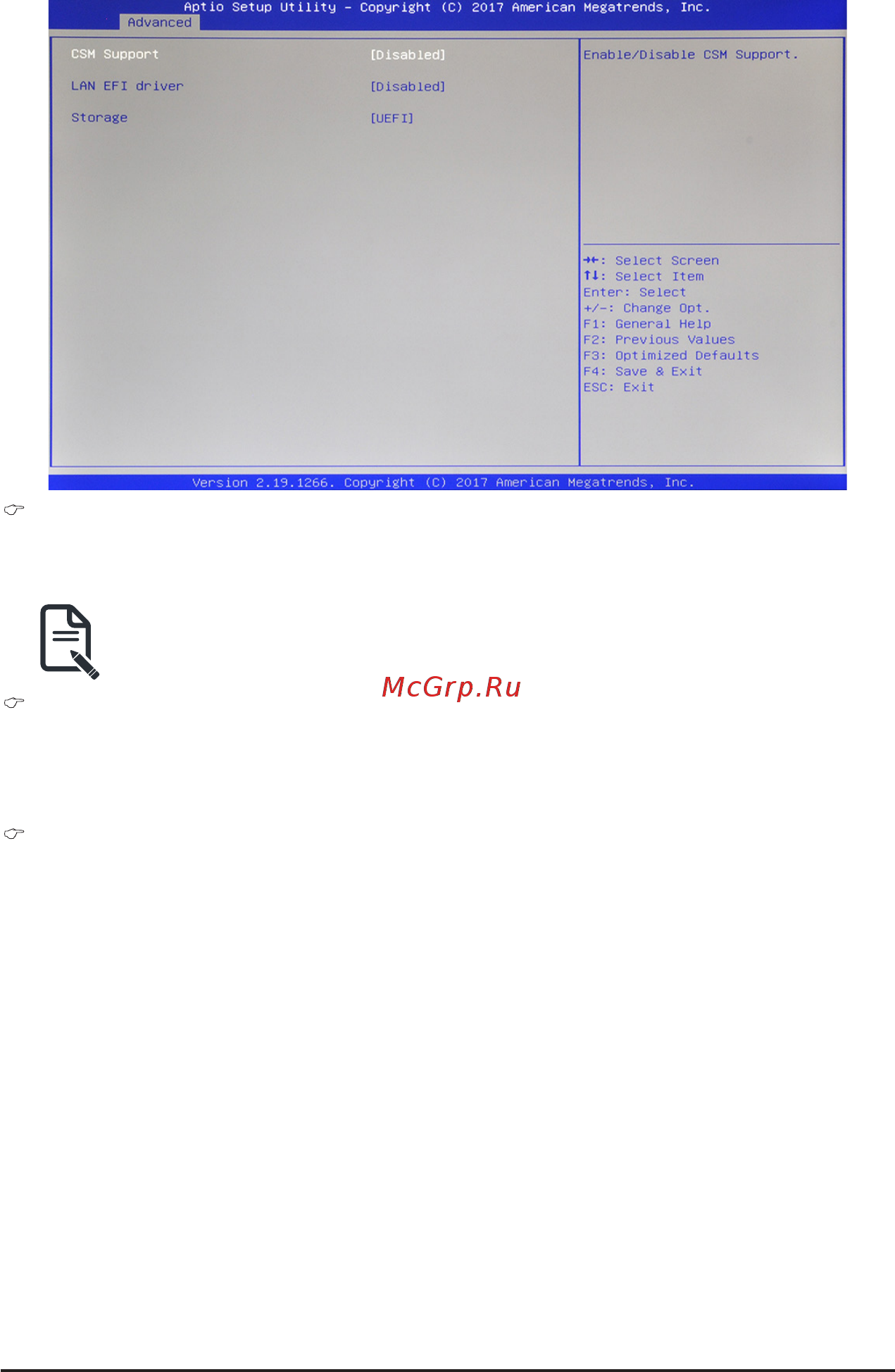

2-2-7 CSM Conguration
CSM Support
Enable/Disable the Compatibility Support Module (CSM) support function
Options available: Enabled/Disabled. Default setting is Disabled.
• Advanced items prompt and congurable when this item is set to Enabled.
• If the CSM Support is set to Disabled, the following ve items will not be able to support
Legacy mode.
LAN EFI driver
Enable/Disable LAN EFI driver.
Options available: Enabled/Disabled. Default setting is Disabled.
Please note that this item is visible when CSM Support is set to Disabled.
Storage
Controls the execution of UEFI and Legacy Storage Option ROM.
Options available: Do not launch/UEFI/Legacy setting is Disabled.
Please note that this item is visible when CSM Support is set to Disabled.
