BIOS Setup - 42 -

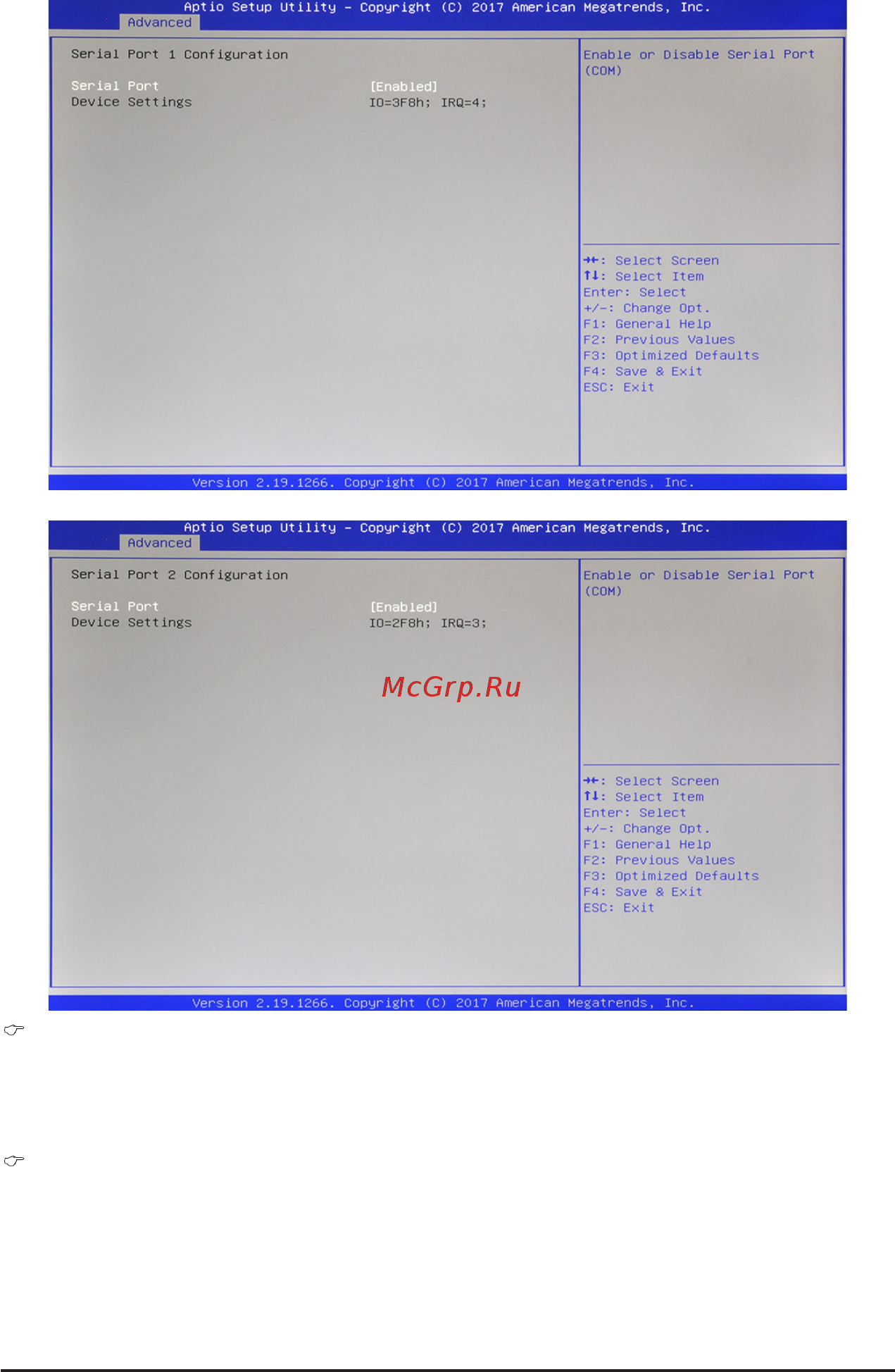

2-2-4-1 Serial Port 1/2 Conguration
Serial Port 1/2 Conguration
When enabled allows you to configure the serial port settings. When set to disabled, displays no
conguration for the serial port.
Options available: Enabled/Disabled. Default setting is Enabled.
Device Settings
Displays the specied Serial Port base I/O address and and IRQ.
