Gigabyte MW51-HP0 (rev. 1.0) [58/61] 5 boot menu
![Gigabyte MW51-HP0 (rev. 1.0) [58/61] 5 boot menu](/views2/1679991/page58/bg3a.png)
BIOS Setup - 58 -
2-5 Boot Menu

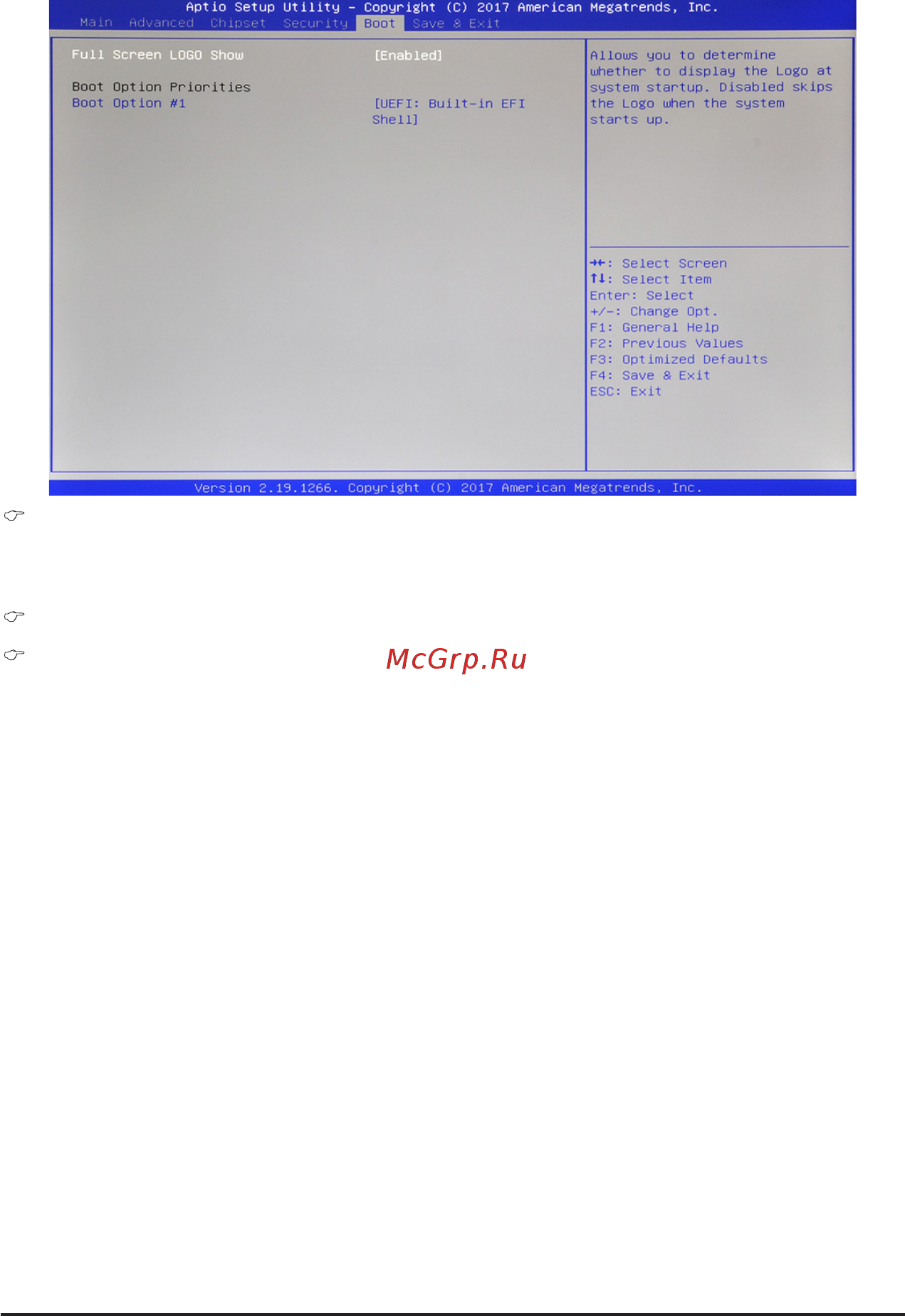

The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error
message if the legacy drive(s) specied is not bootable.
Full Screen LOGO Show
Enable/Disable whether the Logo displays on the full screen when the system starts up.
Options available: Enabled/Disabled. Default setting is Enabled.
Boot Option Priorities
Boot Option #1
Press [Enter] to congure the boot priority. It allows you to specify the boot device priority from the
available UEFI applications during system boot-up.
Options available: UEFI: Built-in EFI Shell/Disabled. Default setting is UEFI: Built-in EFI Shell.
