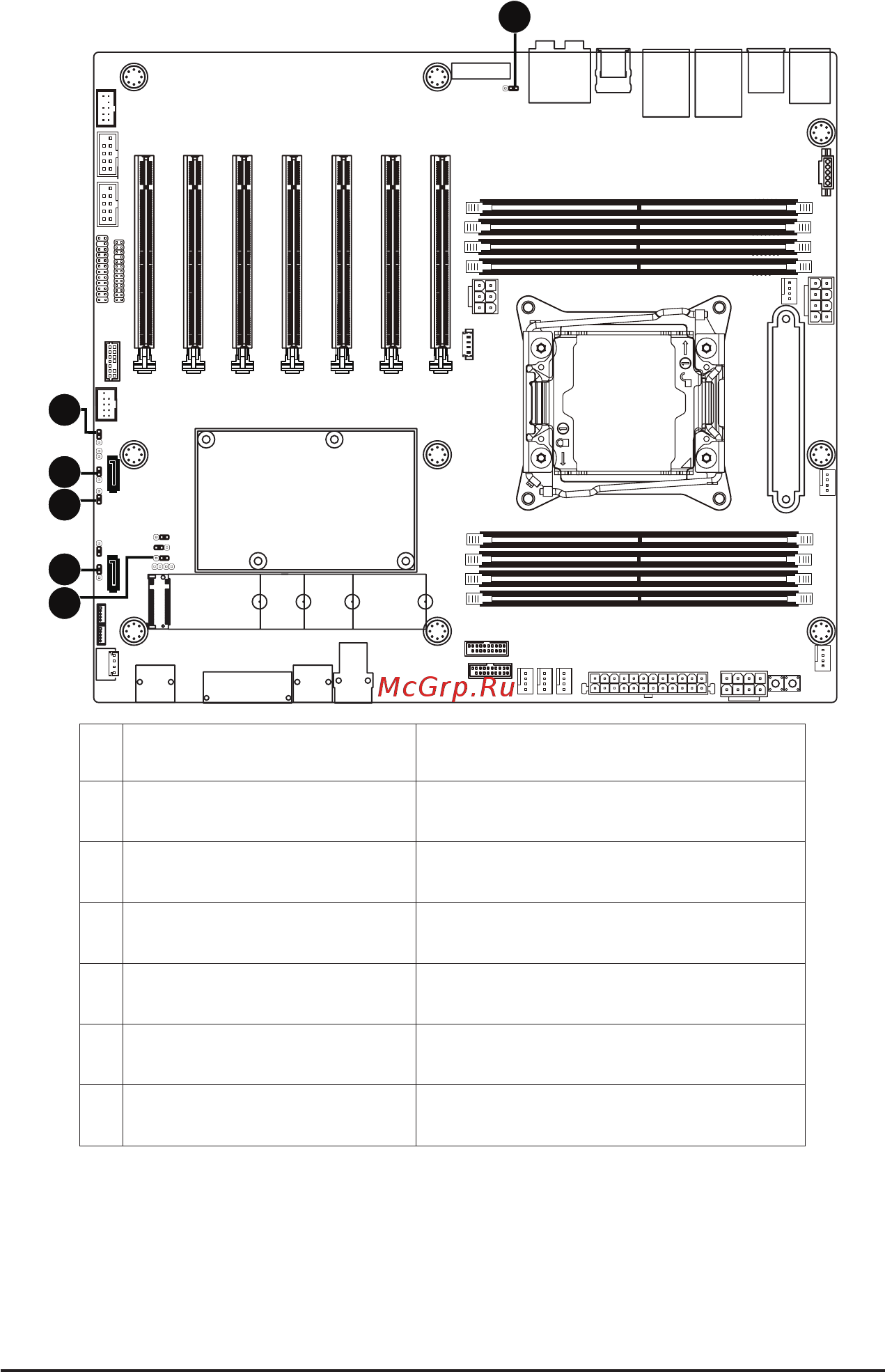

- 29 - Hardware Installation
1-8 Jumper Settings
No. Jumper Name Jumper Setting
1 Clear CMOS
1-2: Nomal operation (Default)
2-3: Clear CMOS data
2 ME Force Update
1-2: Nomal operation (Default)
2-3: Enable ME Force Update
3 SATA1 port DOM support Jumper
1-2: Enable SATA DOM 5V Power
2-3: Ground (Default)
4 Clearing Supervisor Password
1-2: Nomal operation (Default)
2-3: Skip supervisor password
5 SATA0 port DOM support Jumper
1-2: Enable SATA DOM 5V Power
2-3: Ground (Default)
6 BIOS Recovery
1-2: Nomal operation (Default)
2-3: Enable BIOS Recovery
1
2
5
6
4
3
