- 21 - Hardware Installation

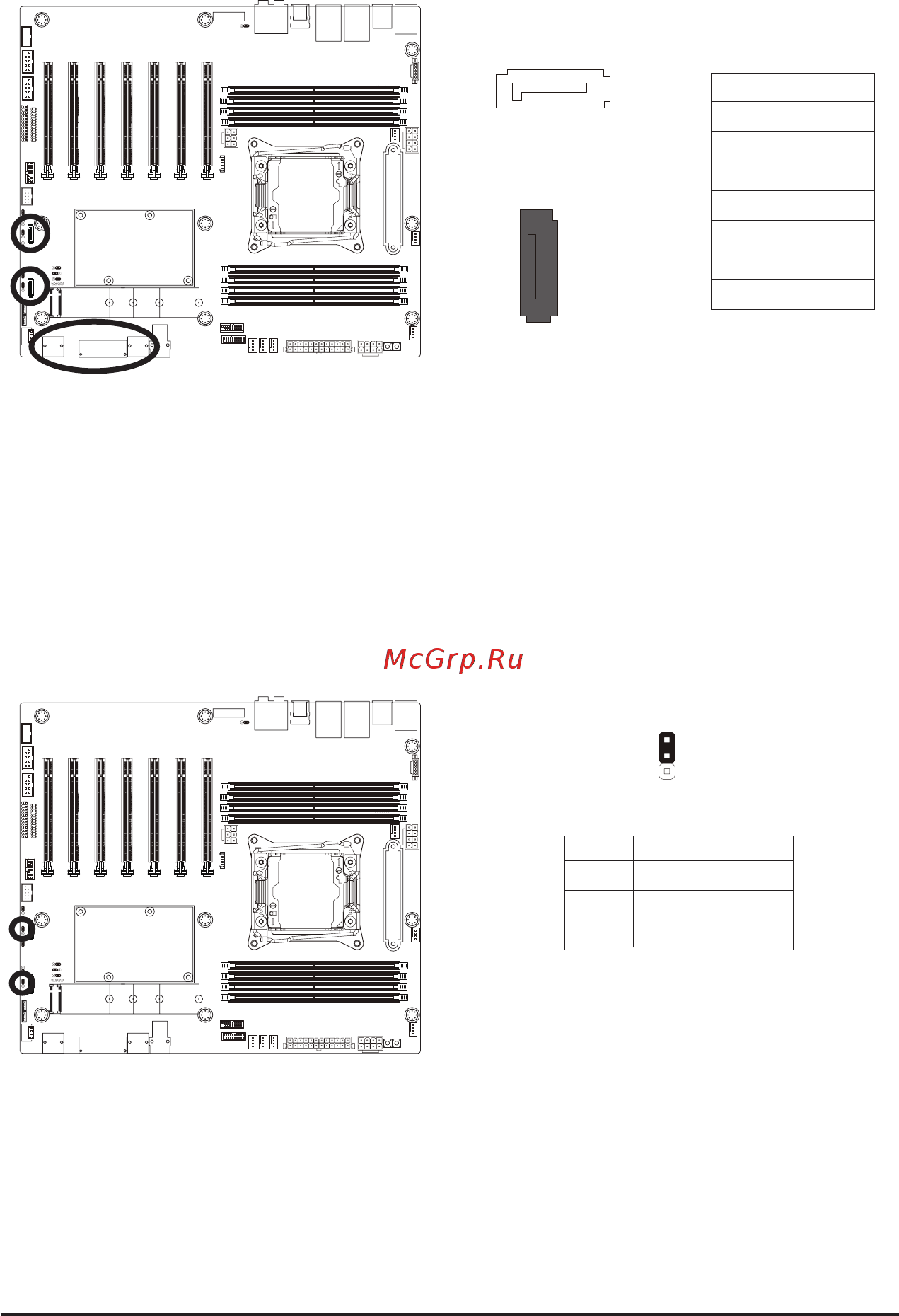

5/6/7/8/9) GSATA_0_1/SATA_x4/SATA_2_3/SATA0/SATA1 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s standard. Each
SATA connector supports a single SATA device.
GSATA_0_1/SATA_x4/SATA_2_3
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
10/11) SATA_DOM0/ SATA_DOM1 Power Jumpers
SATA-DOM (Disk on Module) is available to allow for standalone boot and diagnostics direct through SATA
connections on the board.
Pin No. Denition
1 P5V for SATA DOM
2 5V for SATA DOM
3 GND (Default)
7
1
SATA0/SATA1
7
1
(Support SATA DOM Power)
3
1
