- 27 - Hardware Installation

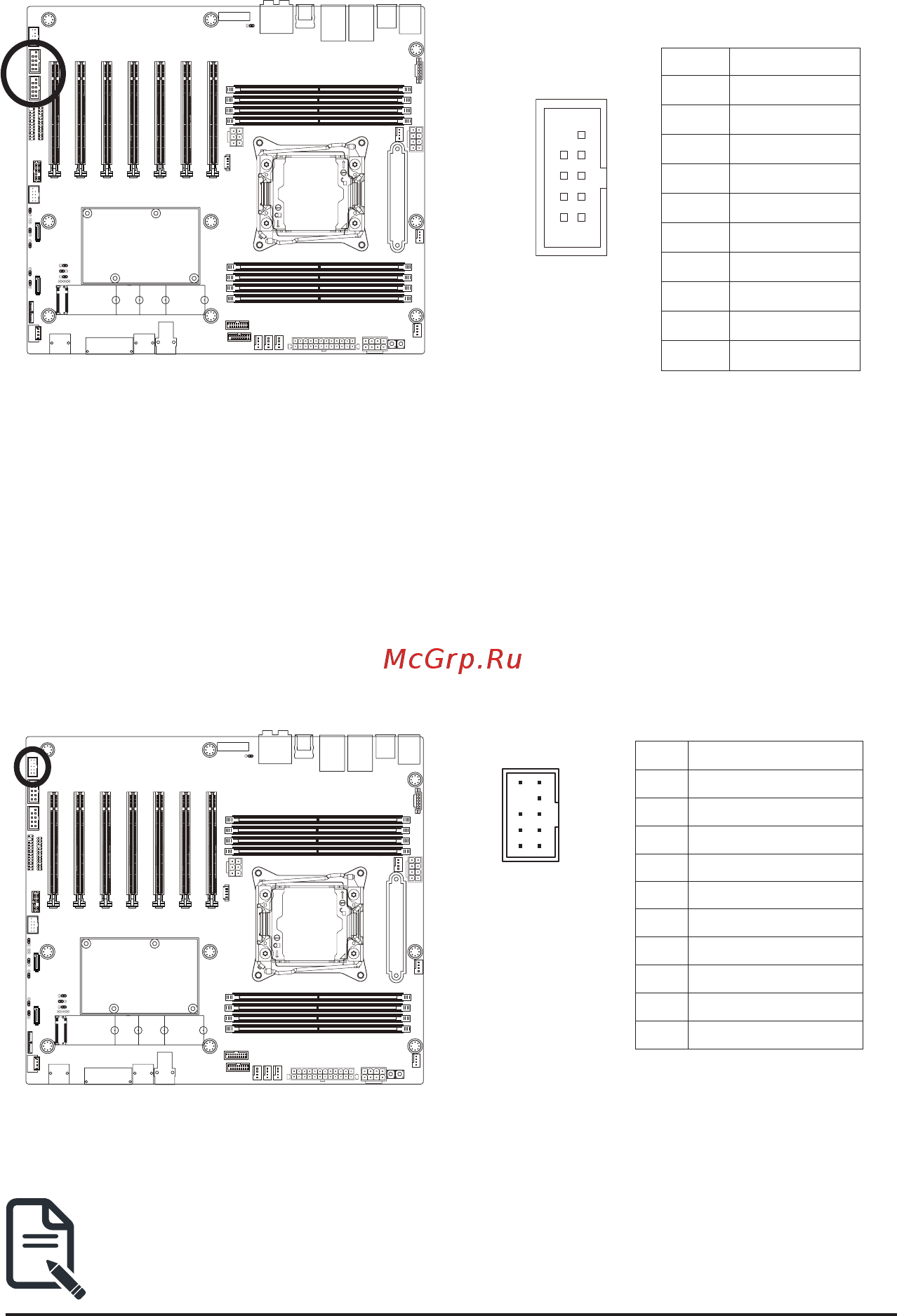

31/32) COM1/COM2 (Serial Port Cable Connector)
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
Pin No. Denition
1 NDCD-
2 NSIN
3 NSOUT
4 NDTR
5 GND
6 NDSR-
7 NRTS-
8 NCTS-
9 NRI-
10 No Pin
10 9
2 1
33) F_AUDIO (Front Panel Audio Header)
The front panel audio header supports High Denition audio (HD). You may connect your chassis front
panel audio module to this header. Make sure the wire assignments of the module connector match the
pin assignments of the motherboard header. Incorrect connection between the module connector and the
motherboard header will make the device unable to work or even damage it.
Some chassis provide a front panel audio module that has separated connectors on each wire
instead of a single plug. For information about connecting the front panel audio module that has
different wire assignments, please contact the chassis manufacturer
Pin No. Denition
1 MIC2-L
2 AUD_GND
3 MIC2-R
4 FP_AUDIO_DET
5 LINE2-R-
6 MIC2-JD
7 FRONT-IO-SENSE
8 KEY
9 LINE2-L
10 LINE2-JD
10 9
2 1
