- 43 - BIOS Setup
2-2-5 Hardware Monitor

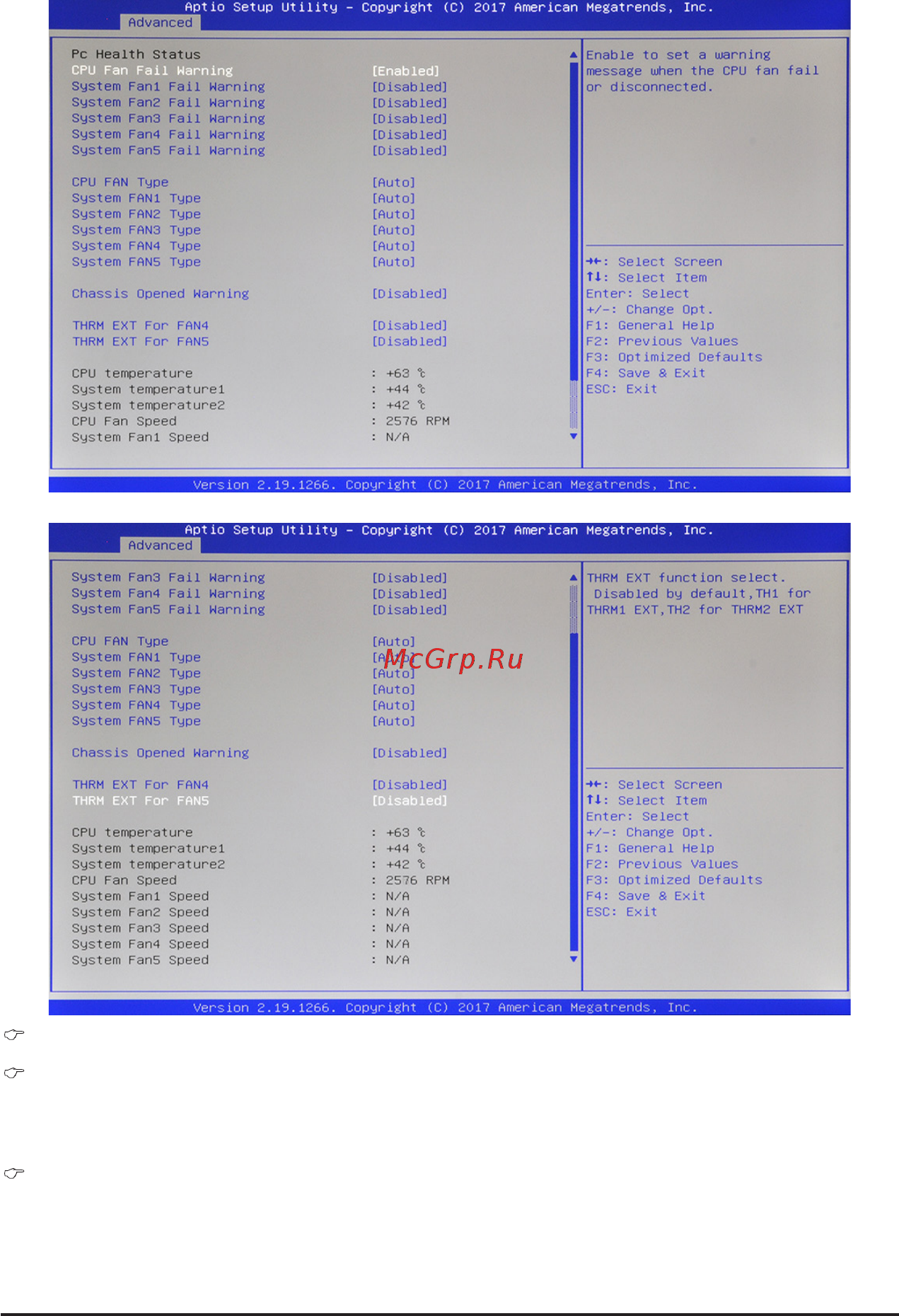

Press [Enter] to view the Hardware Monitor screen which displays a real-time record of the CPU/system
temperature, and fan speed. Items on this window are non-congurable
PC Health Status
CPU FAN Fail Warning
Enable/Disable a warning message when the CPU fan failure or disconnected.
Options available: Enabled/Disabled. Default setting is Enabled.
System FAN 1/2/3/4/5 Fail Warning
Enable/Disable a warning message when the system fan failure or disconnected.
Options available: Enabled/Disabled. Default setting is Disabled.
