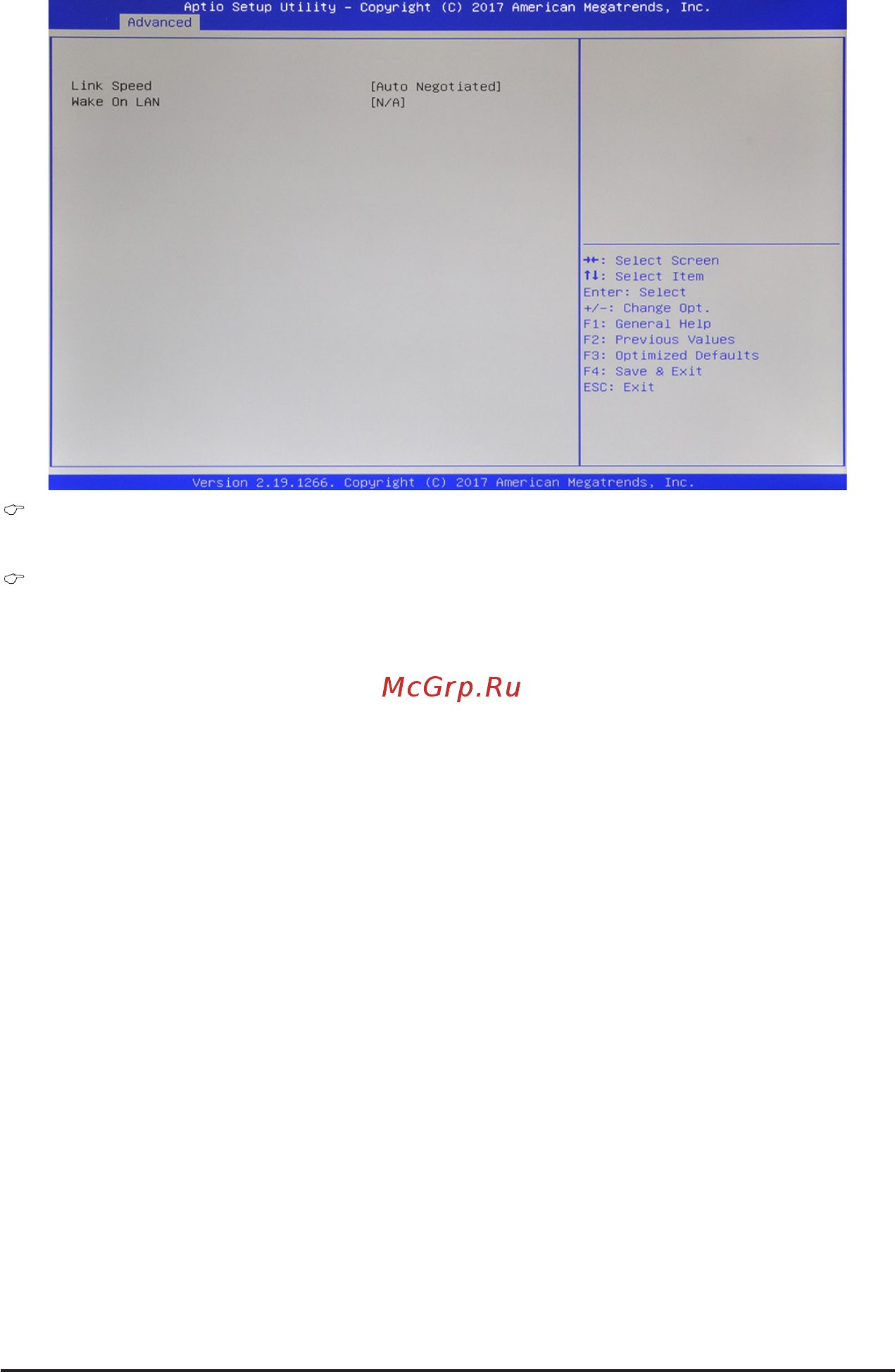

- 51 - BIOS Setup
2-2-10-1 NIC Conguration
Link Speed
Allows for automatic link speed adjustment. Default setting is Auto Negotiated.
Wake On LAN
Enable/Disable the Wake On LAN feature. Note that conguring Wake on LAN in the operating system
does not change the value of this setting, but does override the behavior of Wake on LAN in OS
controlled power states.
Options available: Enabled/Disabled/N/A. Default setting is N/A.
