- 41 - BIOS Setup

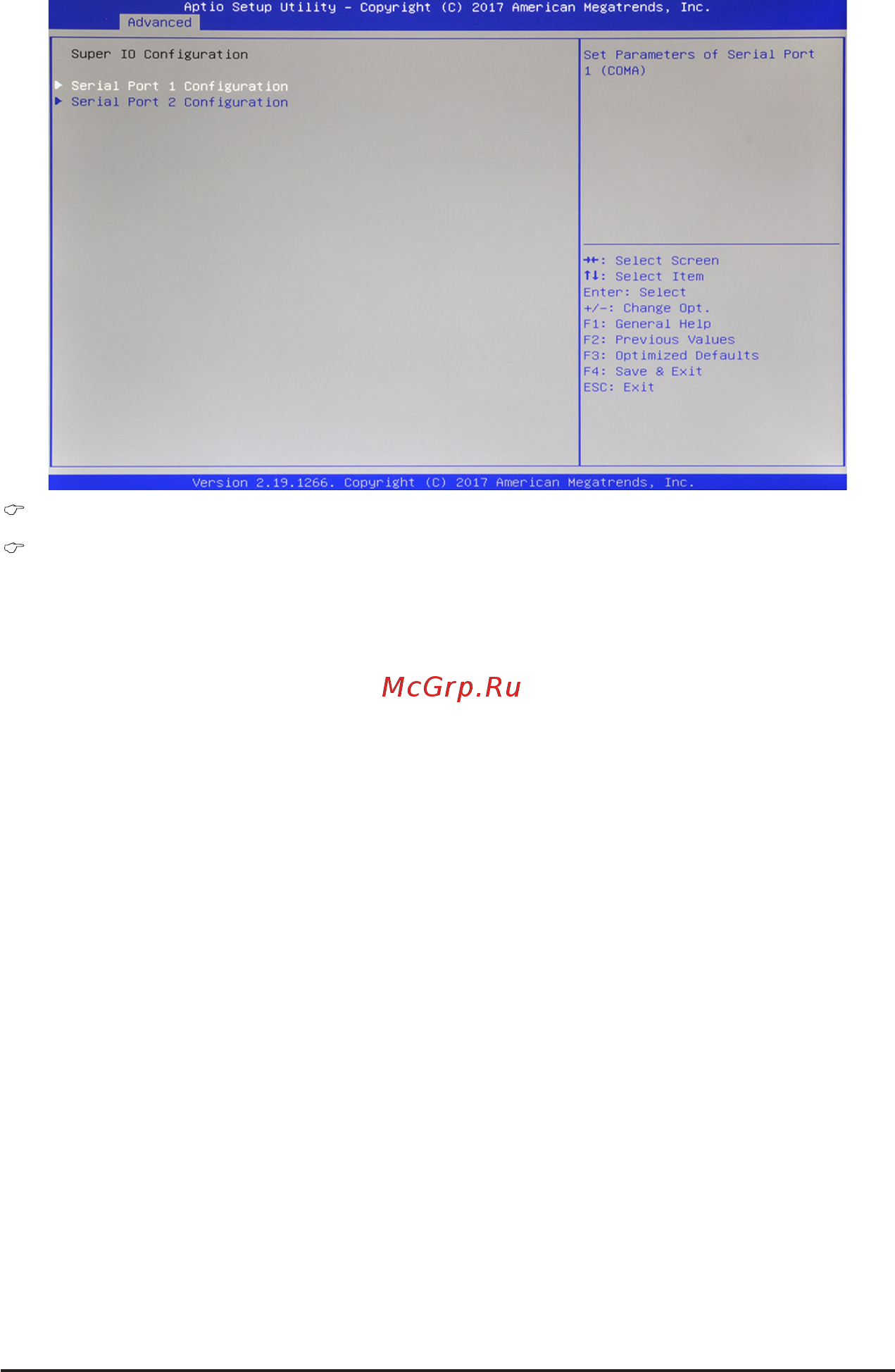

2-2-4 Super IO Conguration
Super IO Conguration
Serial Port 1/2 Conguration
Press [Enter] for conguration of advanced items.
