- 5 -

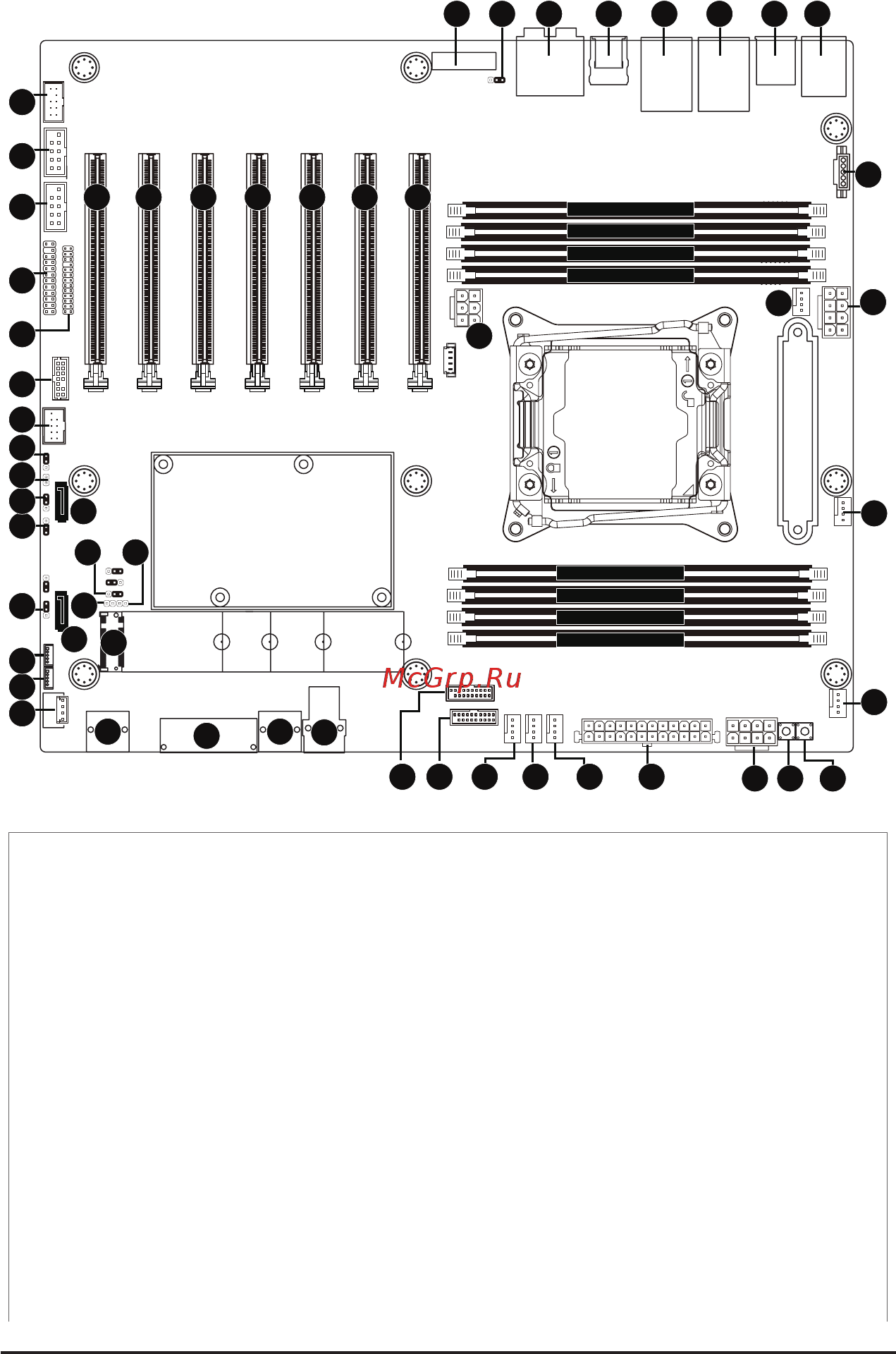

MW51-HP0 Motherboard Layout
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_A0
DIMM_P0_A1
DIMM_P0_C1
CPU
LGA 2066
DIMM_P0_C0
DIMM_P0_D1
DIMM_P0_D0
1 2 3 4 5 6
7
9
8
12
11
10
13
14
15
1617
181920
21
22
23
24
26
27
28
33
36
34
35
38
39
40
41
42
43
44
46 47 48 49 50 51 52
53
54 55
45
37
29
31
25
32
30
Item Code Description
1 HD_AUDIO Audio Connectors
2 RUSB31_1/RUSB31_2 USB 3.1 Type-C Connector (Bottom)/USB 3.1 Type-A Connector (Top)
3 USB3_LAN1 GbE Ethernet LAN port #1 (Top) /USB 3.0 Ports (Bottom)
4 USB3_LAN2 GbE Ethernet LAN port #2 (Top) /USB 3.0 Ports (Bottom)
5 RUSB3_1 USB 3.0 Ports
6 PS2_USB3_1 PS/2 Keyboard Mouse Connector (Top) /USB 3.0 Ports (Bottom)
7 PMBUS PMBus Connector
8 P12V_AUX1 2x4 Pin 12V Power Connector (For CPU & DDR12V input)
9 SYS_FAN1 System Fan Connector #1
10 CPU0_FAN CPU Fan Connector
11 SYS_FAN2 System Fan Connector #2
12 RST1 Reset Button
13 PWR1 Power Button
14 P12V_AUX2 2x4 Pin 12V Power Connector (For CPU & DDR12V input)
15 ATX 2x12 Pin Main Power Connector
