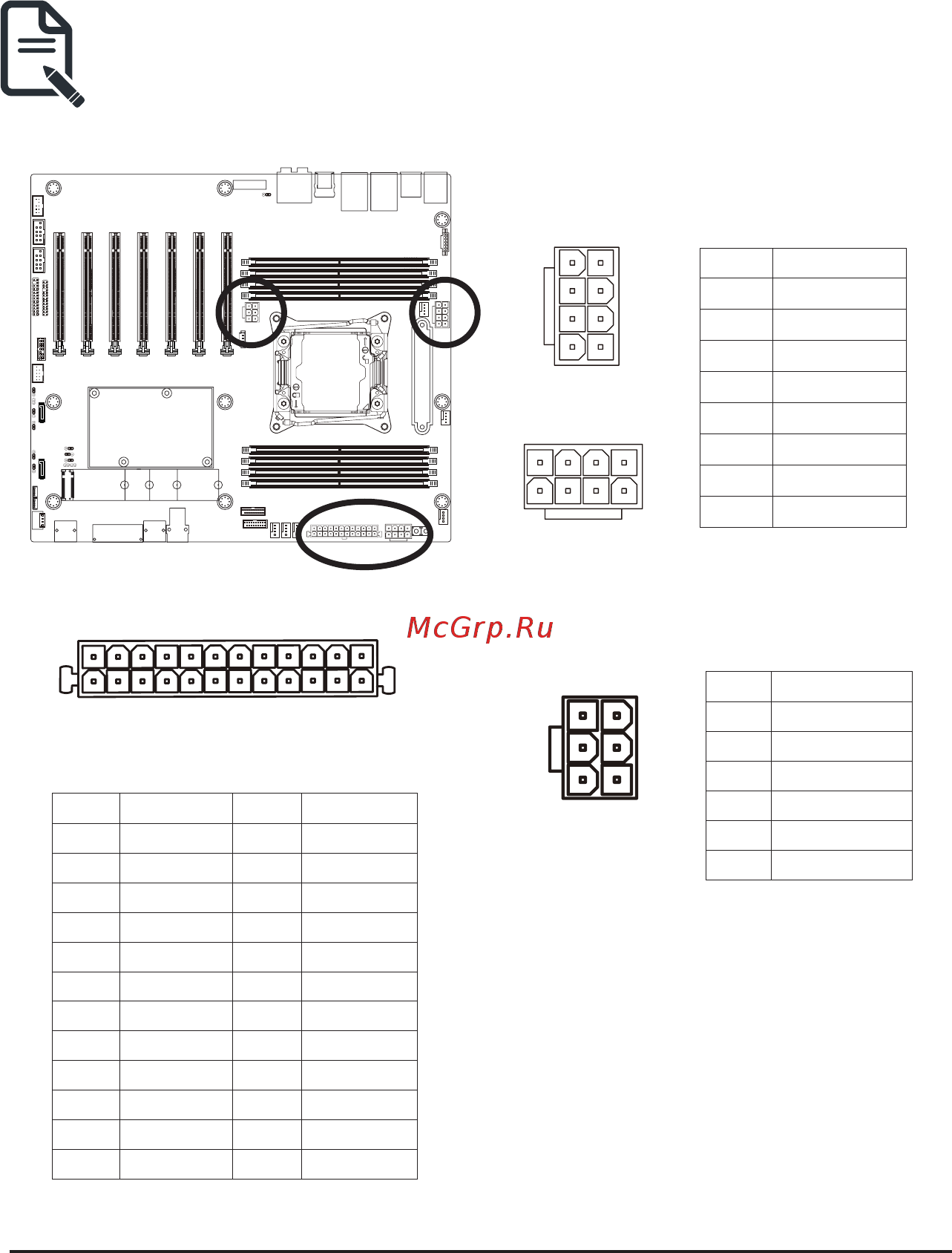

Hardware Installation - 20 -
1/2/3/4) ATX/P12V_AUX1/P12V_AUX2/P12V_AUX3 (2x12 Main Power Connector and
2x4/2x3 12V Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the components
on the motherboard. Before connecting the power connector, rst make sure the power supply is turned off
and all devices are properly installed. The power connector possesses a foolproof design. Connect the power
supply cable to the power connector in the correct orientation. The 12V power connector mainly supplies
power to the CPU. If the 12V power connector is not connected, the computer will not start.
To meet expansion requirements, it is recommended that a power supply that can withstand high
power consumption be used (500W or greater). If a power supply is used that does not provide the
required power, the result can lead to an unstable or unbootable system.
8
5
4
1
Pin No. Denition
1 GND
2 GND
3 GND
4 GND
5 +12V
6 +12V
7 +12V
8 +12V
P12V_AUX1/ P12V_AUX2
ATX
Pin No. Denition Pin No. Denition
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 -5V
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 3.3V 24 GND
1
13
12
24
1
5
4
8
14
36
P12V_AUX3
Pin No. Denition
1 +12V_PCIE
2 +12V_PCIE
3 +12V_PCIE
4 GND
5 GND
6 GND
