Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

103

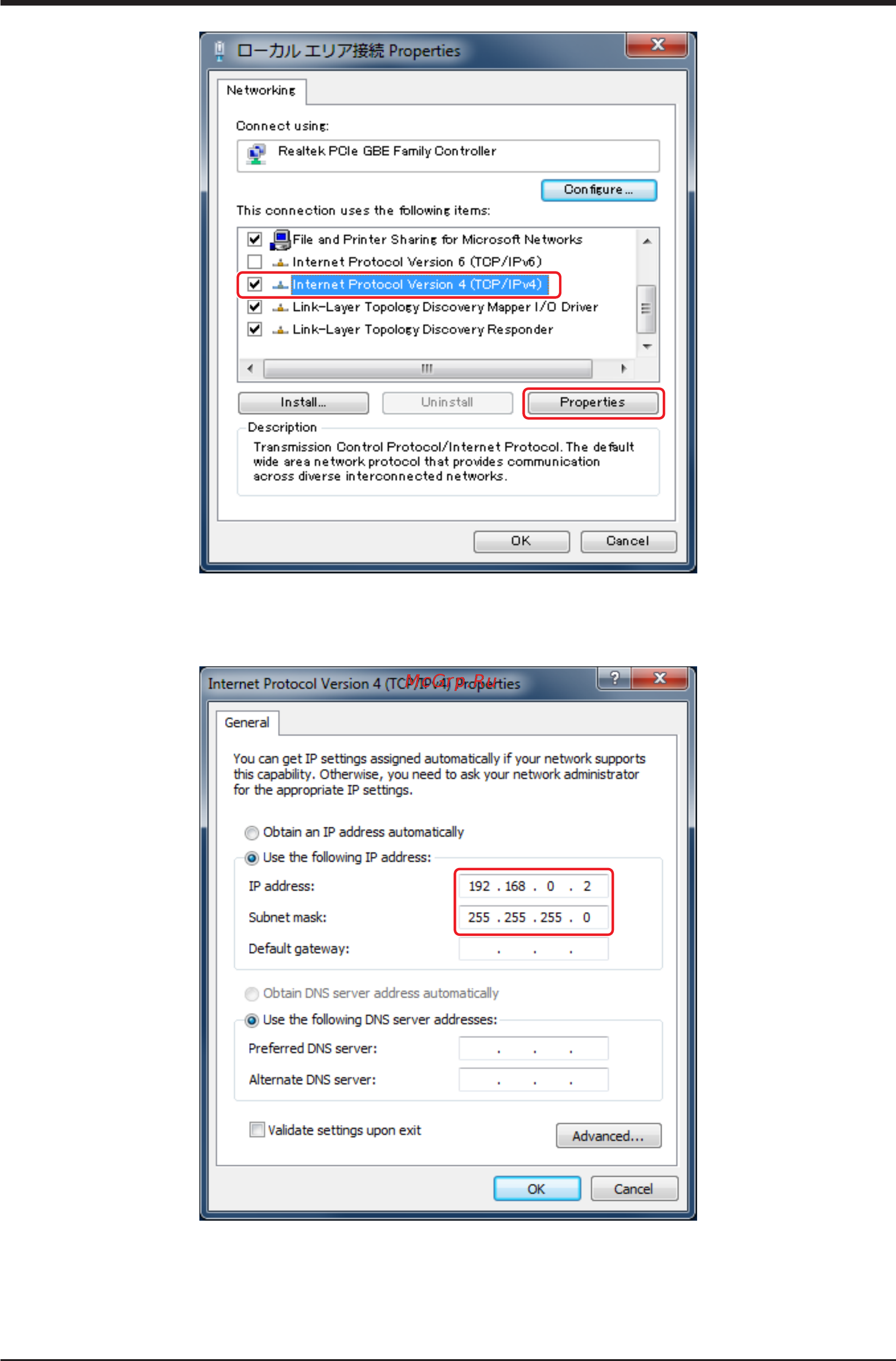

6. Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties].

7. To connect to the iTM via the Internet, ask its IP address and subnet mask to your network

administrator and set them up.
