Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

116

Controller Access Setup

Set up the connection between the iTM to be controlled and the iTM integrator.

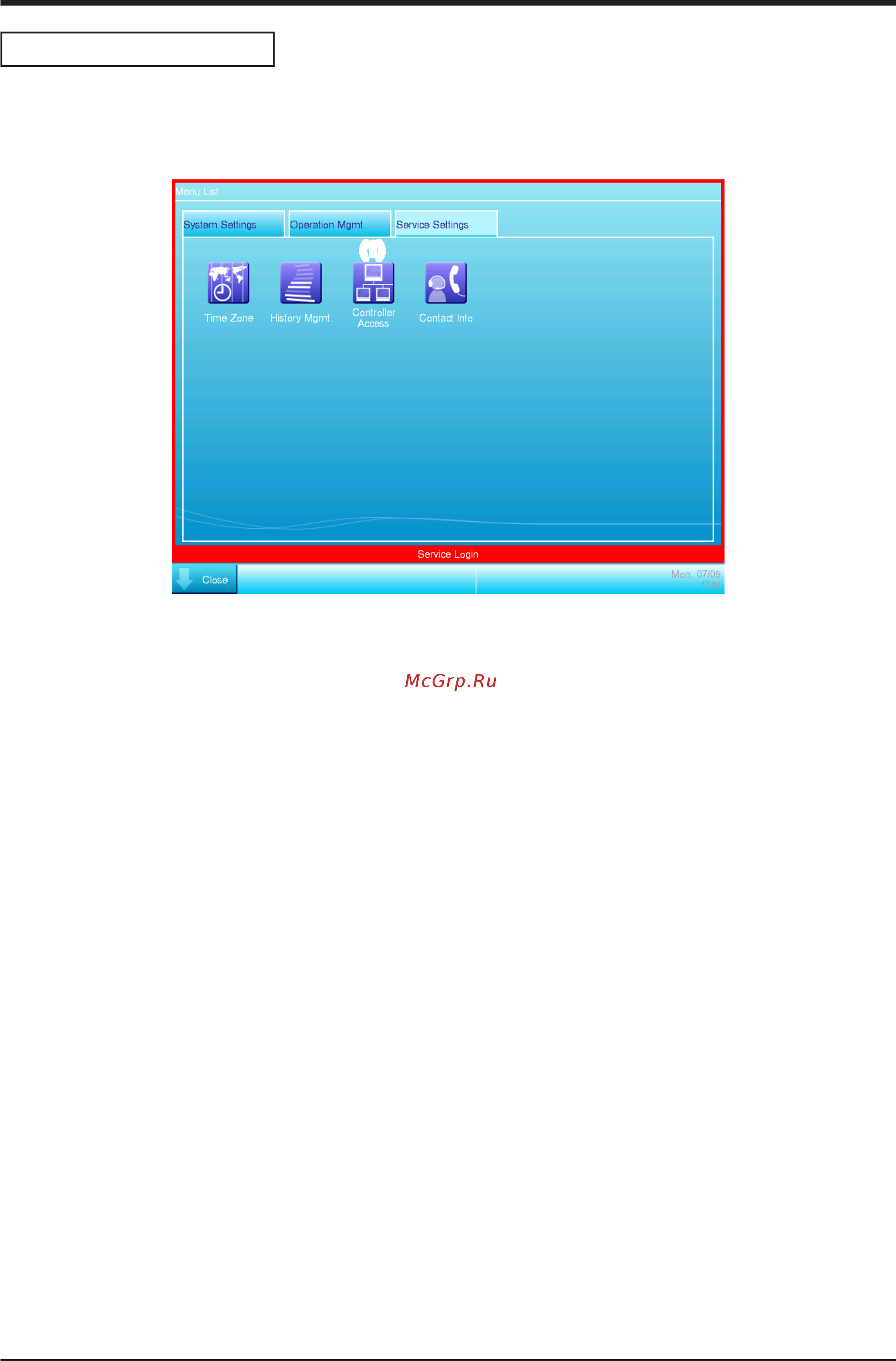

1. Display the Service Settings tab on the iTM integrator Menu List screen.

(1)

2. Touch the Controller Access button (1) to display the Controller Access Setting screen.
