Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

Setting up the IP address (Windows Vista Business)

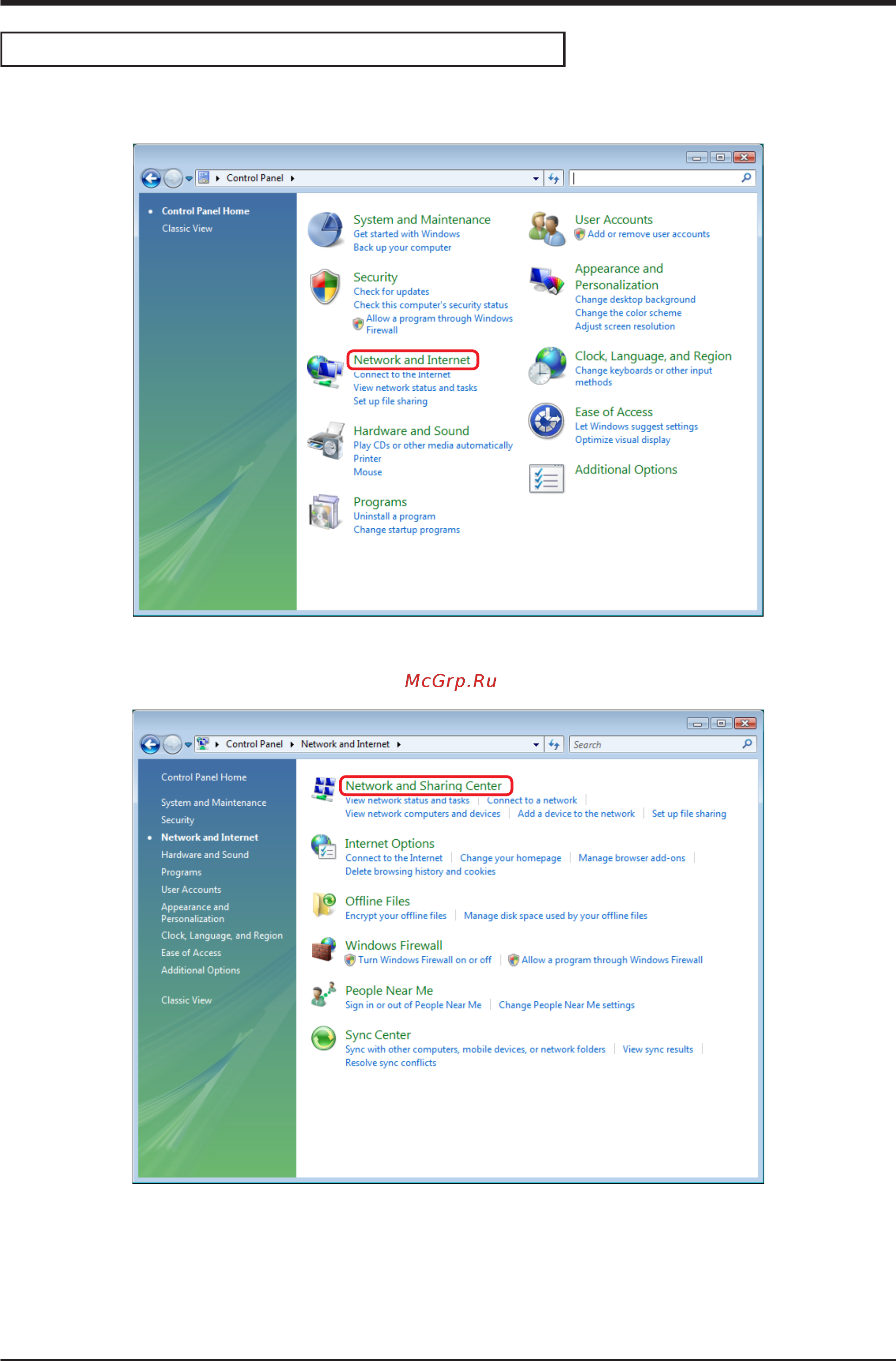

1. Select [Start]

→

[Control Panel].

2. Click [Network and Internet].

3. Click [Network and Sharing Center].
