Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
74

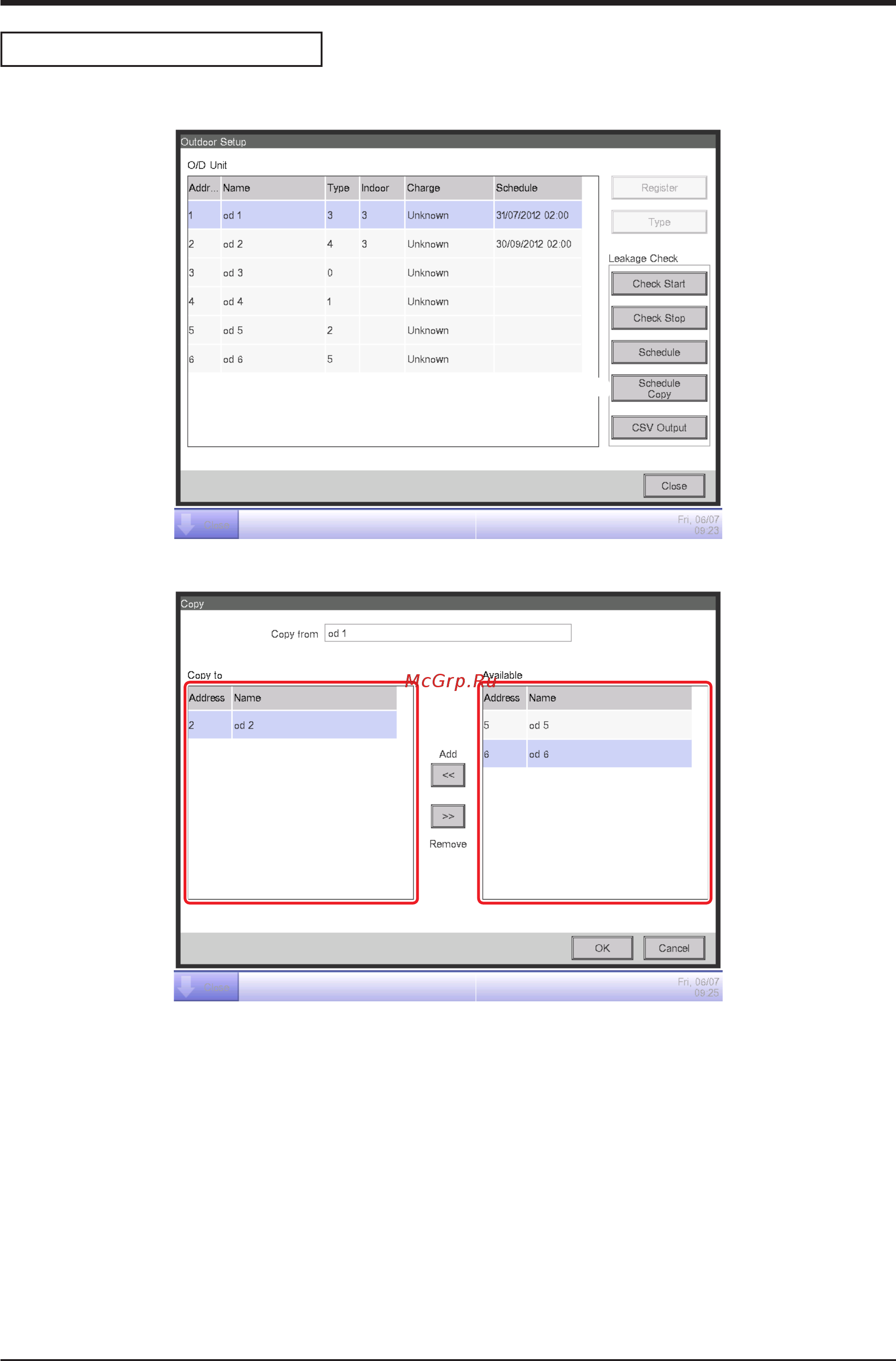

Copying a schedule program
1.
You may set the same program set up in the Schedule Setup screen to another outdoor unit.
(11)
Touch the Schedule Copy button (11) to display the Copy screen.
(12)
(13) (14)
2. The name of the outdoor unit source of copy appears in the Copy from eld (12).
Display the name of the outdoor unit destination of copy in the Copy to list (13).
The Available list (14) is a list of outdoor units that can be registered as copy destination.
Selecting an outdoor unit and touching the Add button, registers it in the Copy to list (13)
To unregister as copy destination, select the indoor unit from (13) and touch the Remove button
to move it to (14). The indoor unit becomes unregistered.
Touch the OK button to overwrite the schedule program and close the dialog.
Example: The above screens shows the operation when the schedule program set up for an
outdoor unit named “od 1” is copied to an outdoor unit named “od 2”.
