Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

122

9. Hardware Specications

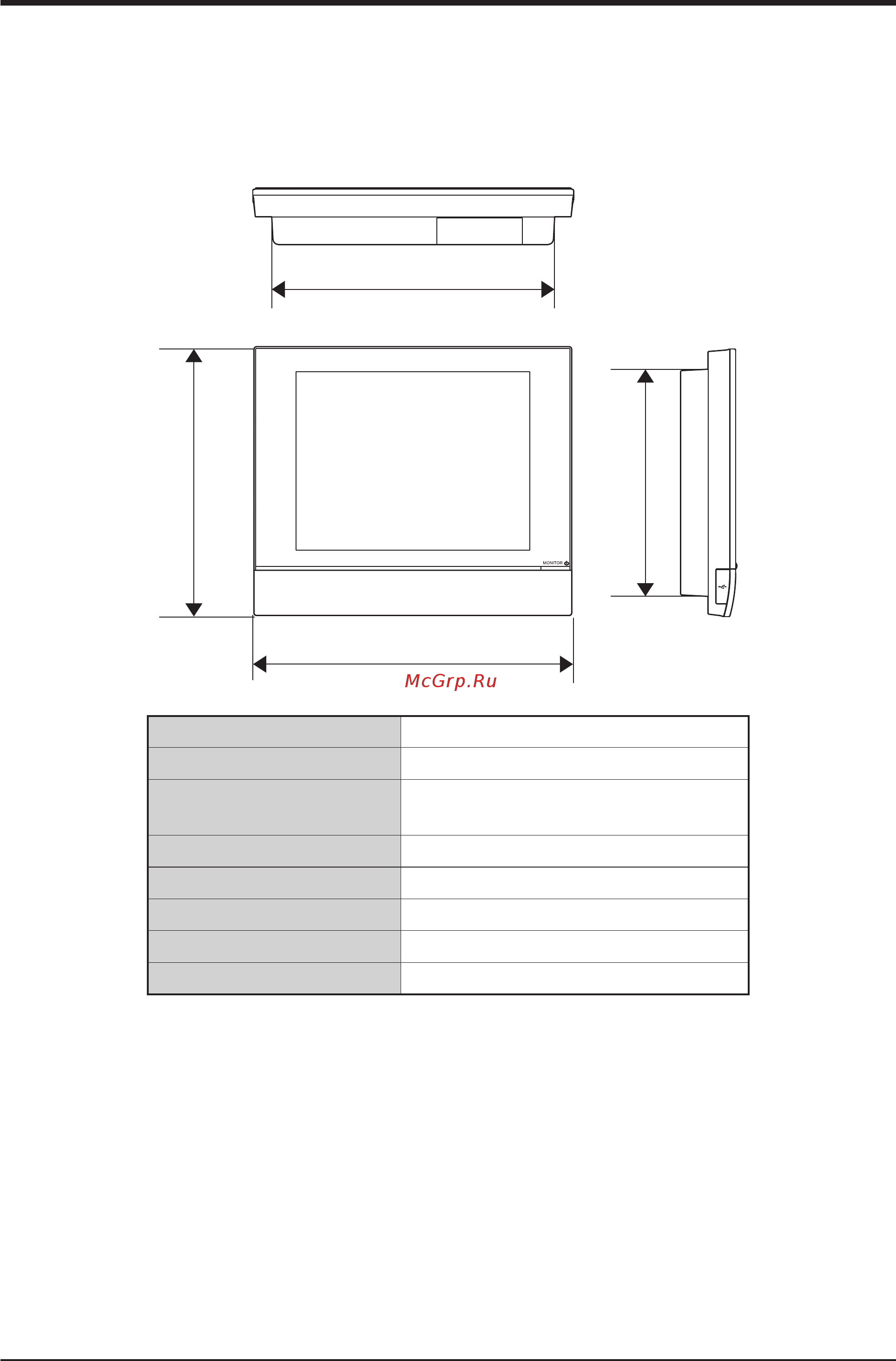

9-1 iTM Hardware Specication

243mm

207mm

290mm

256.6mm

Power AC100 - 240 V 50/60 Hz

Power consumption 23 W

Emergency stop input

Always “a” contact

Contact current approximately 10 mA

Size 290 × 243 × 50 (W × H × D)

Weight 2.4 kg

Time accuracy Within −195.7 to 79.1 sec/month

Operating temperature range 0 - 40 °C

Operating humidity range 85 % or less
