Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
14
The following describes the operating procedure.

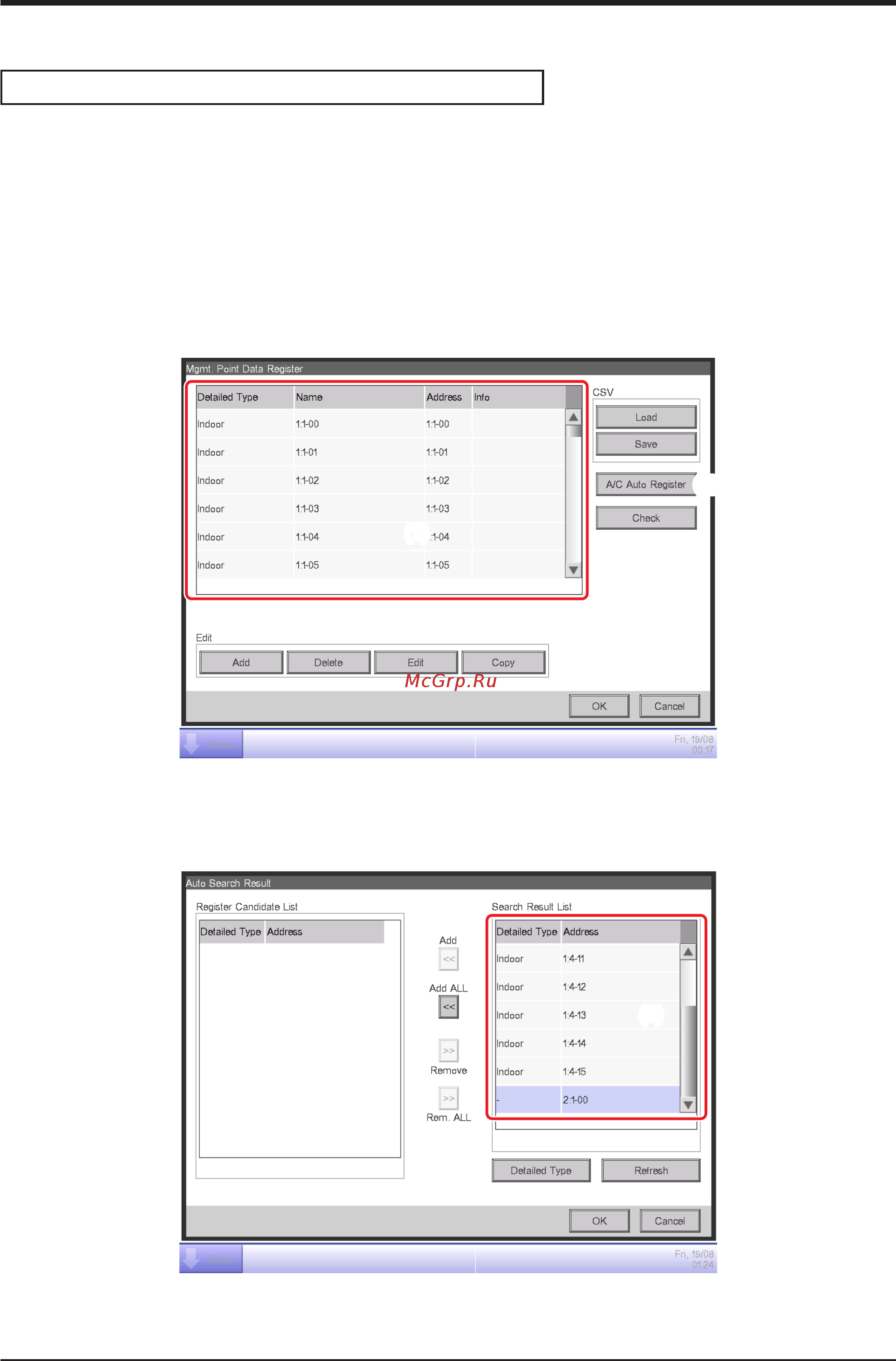

Registering a management point with the iTM unit
1. Automatically recognizing air conditioners
Automatically recognize air conditioners. The iTM unit will search for any D3 units that can be
registered, but have not yet been registered with it.
Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7).
Touch the Mgmt. Pnt Data Regist button on the Service Settings tab to display the main Mgmt.
Point Data Register screen (see page 10).
(1)
(2)
(1) is the list of registered management points.
Touch the A/C Auto Register button (2) to display the Auto Search Result screen.
(3)
(4)
(3) is the search results list. The Detailed Type and Port/Address are displayed.
