Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

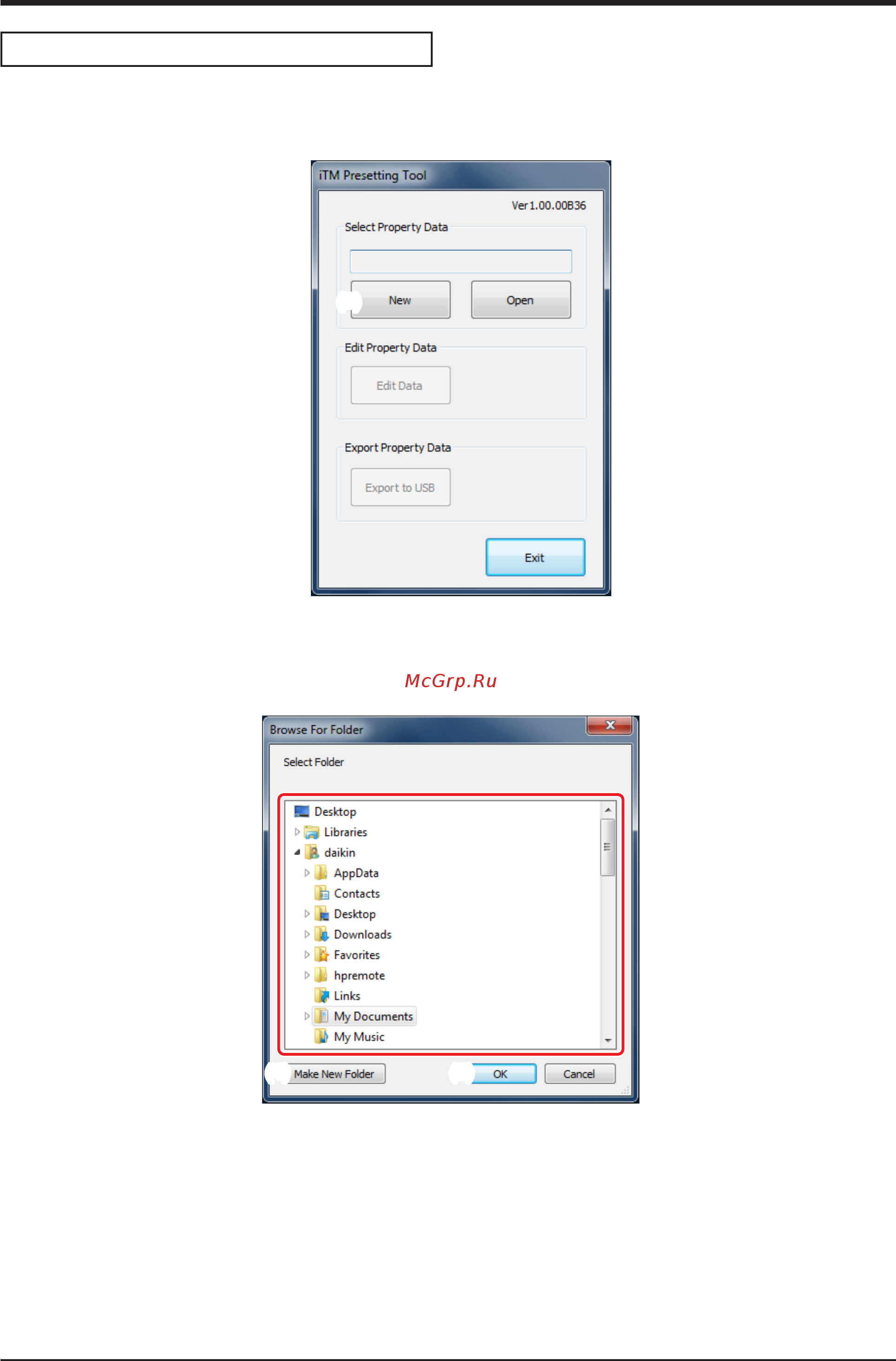

Scenario 1: Installation to new property

Set up data for the new property in advance.

(2)

Main screen

1. Click the New button (2) to display the Create New Folder dialog.

(3)

(4) (5)

Create New Folder dialog

2. Select the location to create the new property’s folder in (3).

Clicking the Make New Folder button (4) creates a new folder directly under the folder selected

in (3).

Clicking the OK button (5) sets up the folder selected in (3) as new folder. A dialog conrming

whether to delete the data in the folder appears. Click the Yes button to commit and return to the

iTM Pre-engineering tool main screen.
